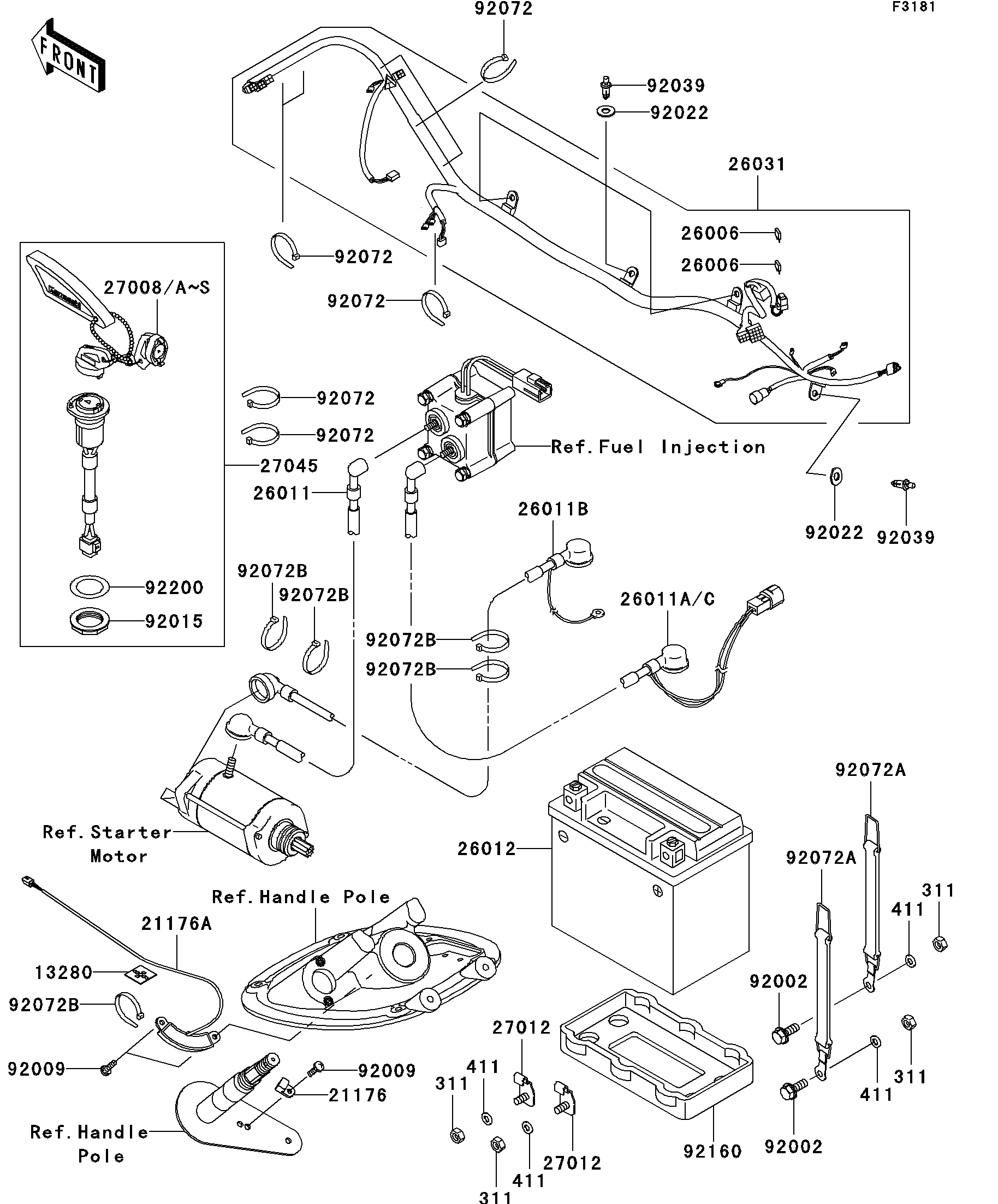

2007 STX-15F - Electrical Equipment(A6F/A7F)

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
21176
21176
21176A
21176A
26006
26006
26006
26006
26011
26011
26011B
26011B
26011C
26011C
26012
26012
26031
26031
27008
27008
27008A
27008A
27008B
27008B
27008C
27008C
27008D
27008D
27008E
27008E
27008F
27008F
27008G
27008G
27008H
27008H
27008I
27008I
27008J
27008J
27008K
27008K
27008L
27008L
27008M
27008M
27008N
27008N
27008O
27008O
27008P
27008P
27008Q
27008Q
27008R
27008R
27008S
27008S
27012
27012
27012
27012
27045
27045
92002
92002
92002
92002
92009
92009
92009
92009
92015
92015
92022
92022
92022
92022
92039
92039
92039
92039
92072
92072
92072
92072
92072
92072
92072
92072
92072
92072
92072A
92072A
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92160
92160
92200
92200
311
311
311
311
311
311
311
311
411
411
411
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-3739 1
SENSOR,MAGNET 21176 21176-3746 1
SENSOR,HOLE IC 21176A 21176-3748 1
FUSE,20A 26006 26006-3704 2
WIRE-LEAD,RELAY-STARTER 26011 26011-3899 1
WIRE-LEAD,BATTERY(-)-STARTER 26011B 26011-3912 1
WIRE-LEAD,BATTERY(+)-RELAY 26011C 26011-3926 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3730 1
HARNESS,MAIN 26031 26031-3716 1
KEY,MAGNETIC SW,#3001 27008 27008-3745 1
KEY,MAGNETIC SW,#3002 27008A 27008-3746 AR
KEY,MAGNETIC SW,#3003 27008B 27008-3747 AR
KEY,MAGNETIC SW,#3004 27008C 27008-3748 AR
KEY,MAGNETIC SW,#3005 27008D 27008-3749 AR
KEY,MAGNETIC SW,#3006 27008E 27008-3750 AR
KEY,MAGNETIC SW,#3007 27008F 27008-3751 AR
KEY,MAGNETIC SW,#3008 27008G 27008-3752 AR
KEY,MAGNETIC SW,#3009 27008H 27008-3753 AR
KEY,MAGNETIC SW,#3010 27008I 27008-3754 AR
KEY,MAGNETIC SW,#3011 27008J 27008-3755 AR
KEY,MAGNETIC SW,#3012 27008K 27008-3756 AR
KEY,MAGNETIC SW,#3013 27008L 27008-3757 AR
KEY,MAGNETIC SW,#3014 27008M 27008-3758 AR
KEY,MAGNETIC SW,#3015 27008N 27008-3759 AR
KEY,MAGNETIC SW,#3016 27008O 27008-3760 AR
KEY,MAGNETIC SW,#3017 27008P 27008-3761 AR
KEY,MAGNETIC SW,#3018 27008Q 27008-3762 AR
KEY,MAGNETIC SW,#3019 27008R 27008-3763 AR
KEY,MAGNETIC SW,#3020 27008S 27008-3764 AR
HOOK 27012 27012-3818 2
SWITCH-ASSY,MAIN 27045 27045-3716 1
BOLT,6X16 92002 92002-3728 2
SCREW,5X16 92009 92009-3868 3
NUT 92015 92015-3848 1
WASHER,8.2X18X1.5 92022 92022-3743 4
RIVET 92039 92039-1283 4
BAND,L=188 92072 92072-1239 8
BAND,WATER MUFFLER 92072A 92072-3781 2
BAND,L=99 92072B 92072-3871 5
DAMPER 92160 92160-3929 1
WASHER 92200 92200-3736 1
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN,6MM 411 411S0600 4
