Parts Diagrams |
56030
56030A
56030B
56030C
56040
56040A
56070
56070A
56070B
56070C
56070D
56070E
56070F
56070G
56071
56071A
56071B
56071C

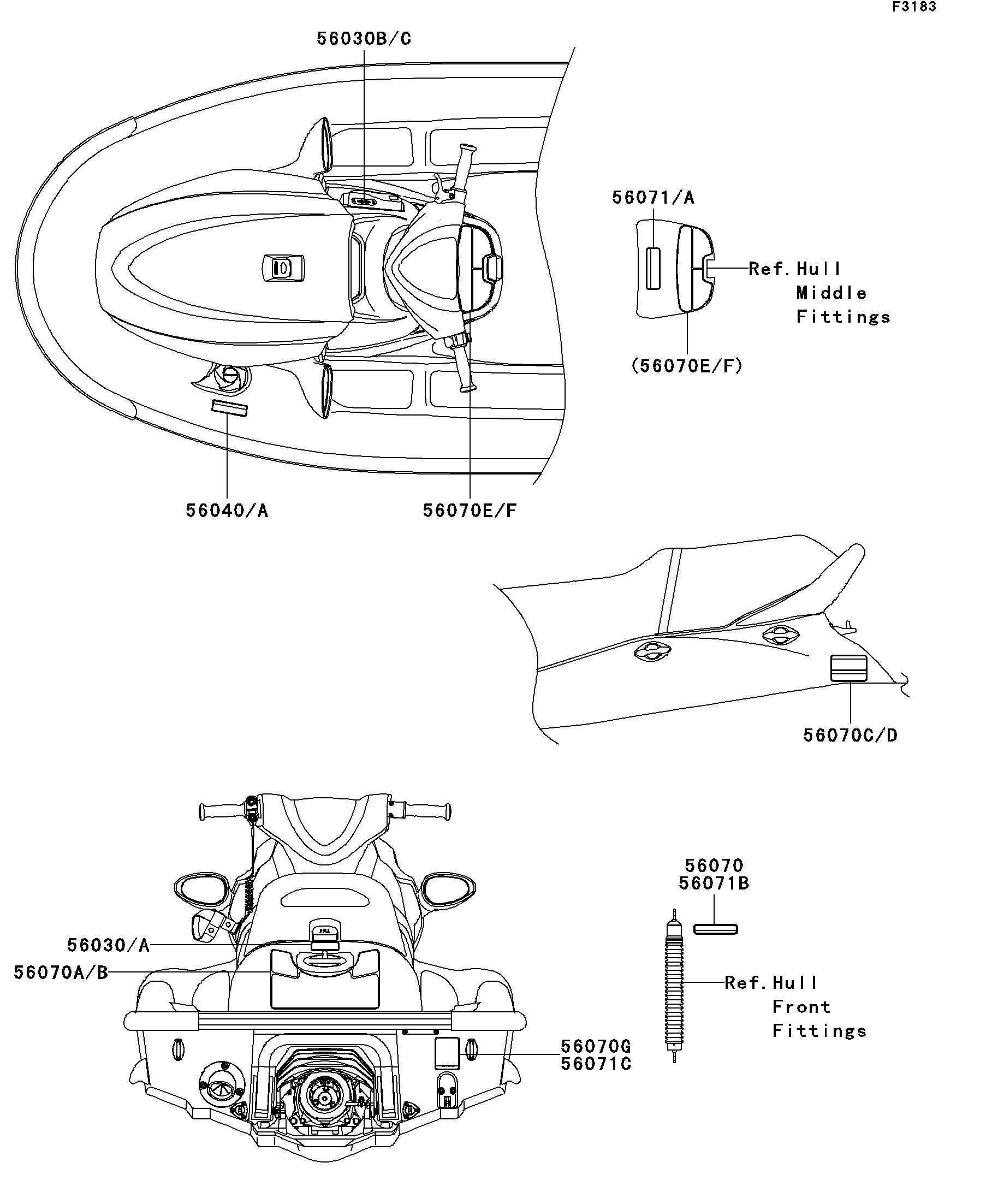

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LABEL,FIRE EXTINGUISHER | 56030 | 56030-3755 | 1 | ||
LABEL,FIRE EXTINGUISHER(FRENCH) | 56030A | 56030-3757 | 1 | CN | |
LABEL,REVERSE | 56030B | 56030-3815 | 1 | ||
LABEL,REVERSE | 56030C | 56030-3816 | 1 | CN | |
LABEL-WARNING,GASOLINE | 56040 | 56040-3972 | 1 | ||
LABEL,GASOLINE(FRENCH) | 56040A | 56040-3978 | 1 | CN | |
LABEL-WARNING,DAMPER | 56070 | 56070-3876 | 1 | ||
LABEL-WARNING,IMPORTANT SAFETY | 56070A | 56070-3937 | 1 | ||
LABEL-WARNING,IMPORTANT SAFETY | 56070B | 56070-3953 | 1 | CN | |
LABEL-WARNING,GRAB HANDLE&STEP | 56070C | 56070-3964 | 1 | ||
LABEL-WARNING,GRAB HANDLE&STEP | 56070D | 56070-3966 | 1 | CN | |
LABEL-WARNING,TETHER SWITCH | 56070E | 56070-3970 | 1 | ||
LABEL-WARNING,TETHER SWITCH | 56070F | 56070-3974 | 1 | CN | |
LABEL-WARNING,RIGHTING | 56070G | 56070-3986 | 1 | ||
LABEL-WARNING,AIR VENT ROUTING | 56071 | 56071-3708 | 1 | ||
LABEL-WARNING,AIR VENT ROUTING | 56071A | 56071-3709 | 1 | CN | |
LABEL-WARNING,DAMPER | 56071B | 56071-3737 | 1 | CN | |
LABEL-WARNING,RIGHTING | 56071C | 56071-3738 | 1 | CN |
LABEL,FIRE EXTINGUISHER | |
REF # | 56030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,FIRE EXTINGUISHER(FRENCH) | |
REF # | 56030A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL,REVERSE | |
REF # | 56030B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,REVERSE | |
REF # | 56030C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,GASOLINE | |
REF # | 56040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,GASOLINE(FRENCH) | |
REF # | 56040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,DAMPER | |
REF # | 56070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,IMPORTANT SAFETY | |
REF # | 56070A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,IMPORTANT SAFETY | |
REF # | 56070B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,GRAB HANDLE&STEP | |
REF # | 56070C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,GRAB HANDLE&STEP | |
REF # | 56070D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,TETHER SWITCH | |
REF # | 56070E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,TETHER SWITCH | |
REF # | 56070F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,RIGHTING | |
REF # | 56070G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,AIR VENT ROUTING | |
REF # | 56071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-WARNING,AIR VENT ROUTING | |
REF # | 56071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,DAMPER | |
REF # | 56071B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
LABEL-WARNING,RIGHTING | |
REF # | 56071C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
