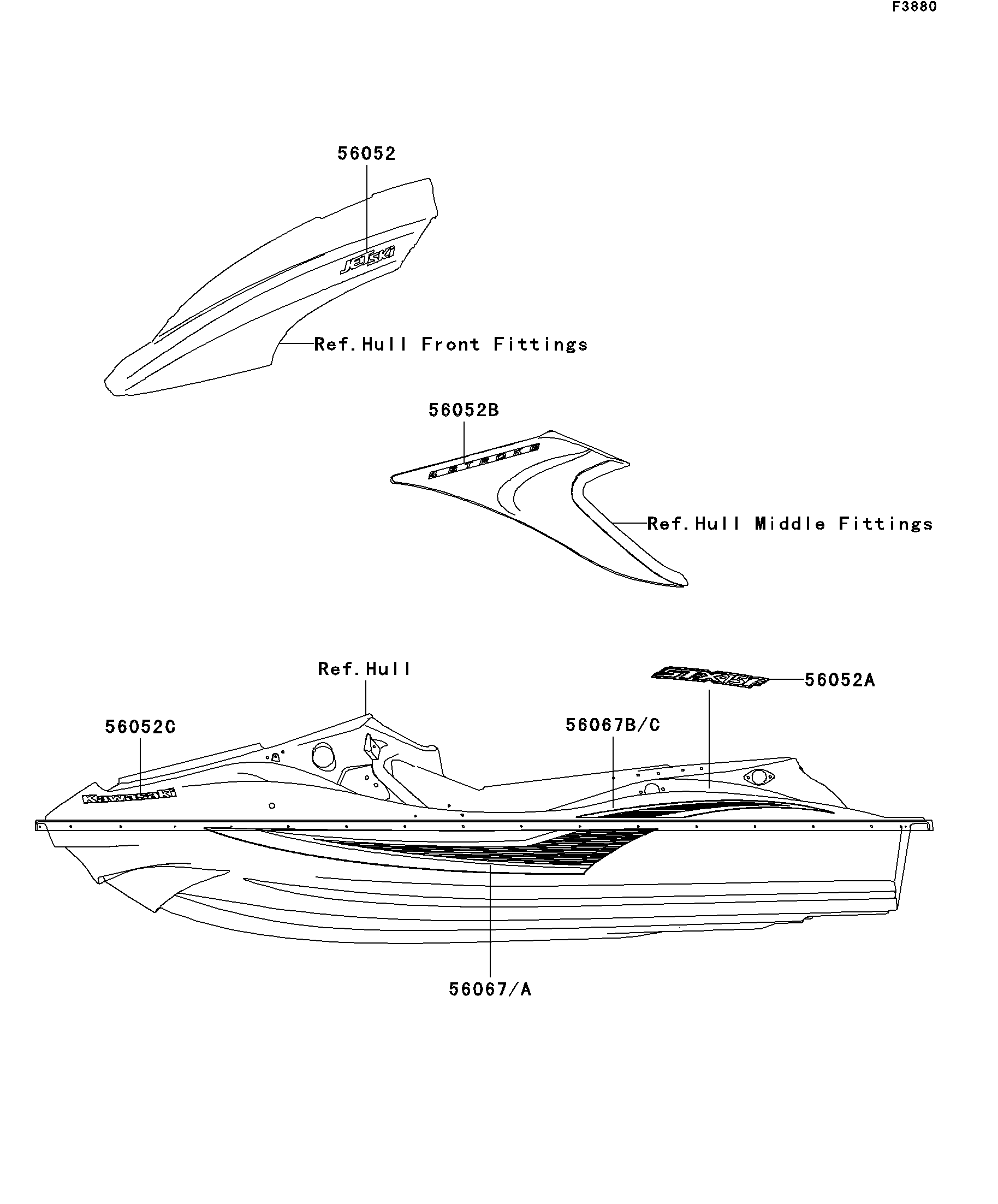

56052
56052A
56052B
56052C
56067
56067A
56067B
56067C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,HANDLE COVER,JET SKI 56052 56052-3816 2
MARK,DECK,STX-15F 56052A 56052-3841 2
MARK,SIDE COVER,4 STROKE 56052B 56052-3846 2
MARK,DECK,KAWASAKI 56052C 56052-3848 2
PATTERN,HULL,LH 56067 56067-3719 1
PATTERN,HULL,RH 56067A 56067-3720 1
PATTERN,DECK,LH 56067B 56067-3721 1
PATTERN,DECK,RH 56067C 56067-3722 1
