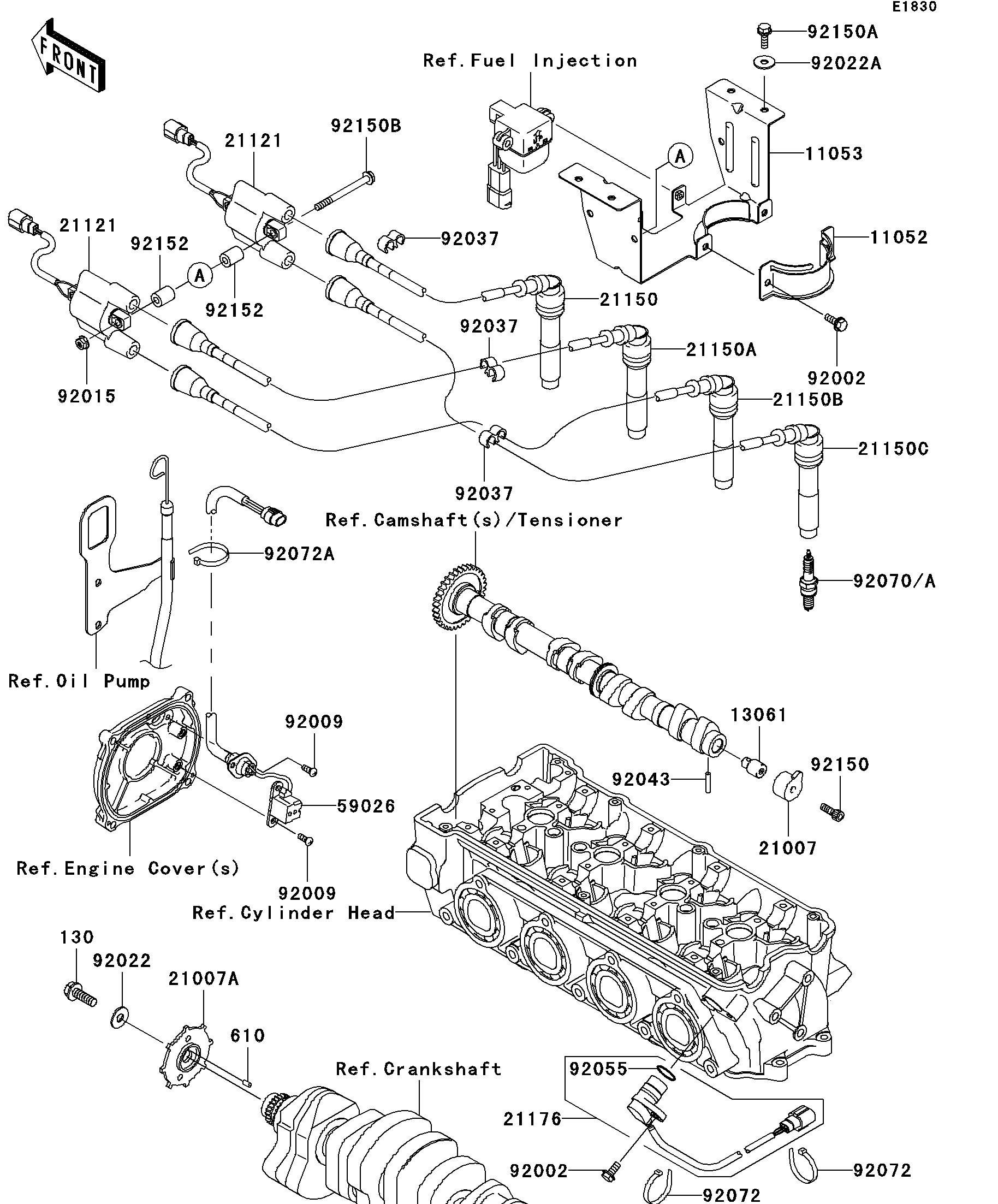

Parts Diagrams |
11052
11053
13061
21007
21007A
21121
21121
21150
21150A
21150B
21150C
21176
59026
92002
92002
92009
92009
92015
92022
92022A
92037
92037
92037
92043
92055
92070
92070A
92072
92072
92072A
92150
92150A
92150B
92152
92152
130
610
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,FILTER | 11052 | 11052-3762 | 1 | ||
BRACKET | 11053 | 11053-3783 | 1 | ||
BOSS,CAM SENSOR | 13061 | 13061-1687 | 1 | ||
ROTOR | 21007 | 21007-1356 | 1 | ||
ROTOR,PULSING | 21007A | 21007-3730 | 1 | ||
COIL-IGNITION | 21121 | 21121-3722 | 2 | ||
CORD-ASSY,#1 | 21150 | 21150-3707 | 1 | ||
CORD-ASSY,#2 | 21150A | 21150-3708 | 1 | ||
CORD-ASSY,#3 | 21150B | 21150-3709 | 1 | ||
CORD-ASSY,#4 | 21150C | 21150-3710 | 1 | ||
SENSOR,TEMP | 21176 | 21176-1077 | 1 | ||
COIL-PULSING | 59026 | 59026-3702 | 1 | ||
BOLT,6X16 | 92002 | 92002-3728 | 3 | ||
SCREW,5X12 | 92009 | 92009-1296 | 4 | ||
NUT,6MM | 92015 | 92015-3767 | 2 | ||
WASHER,PLAIN | 92022 | 92022-3026 | 1 | ||
WASHER,6.5X20X1.5 | 92022A | 92022-3710 | 4 | ||
CLAMP,HOSE | 92037 | 92037-1603 | 3 | ||
PIN | 92043 | 92043-1575 | 1 | ||
RING-O | 92055 | 92055-1639 | 1 | ||
PLUG-SPARK,CR9EK(NGK) | 92070 | 92070-1264 | 4 | ||
PLUG-SPARK,CR8EK(NGK) | 92070A | 92070-1265 | 4 | (OPTION) | |
BAND,L=188 | 92072 | 92072-1239 | 2 | ||
BAND | 92072A | 92072-3874 | 1 | ||
BOLT,6X18 | 92150 | 92150-1645 | 1 | ||
BOLT,6X18 | 92150A | 92150-3729 | 4 | ||
BOLT,6X70 | 92150B | 92150-3753 | 2 | ||
COLLAR | 92152 | 92152-3738 | 4 | ||
BOLT-FLANGED,8X25 | 130 | 130Z0825 | 1 | ||
ROLLER,4X8 | 610 | 610A0408 | 1 |
