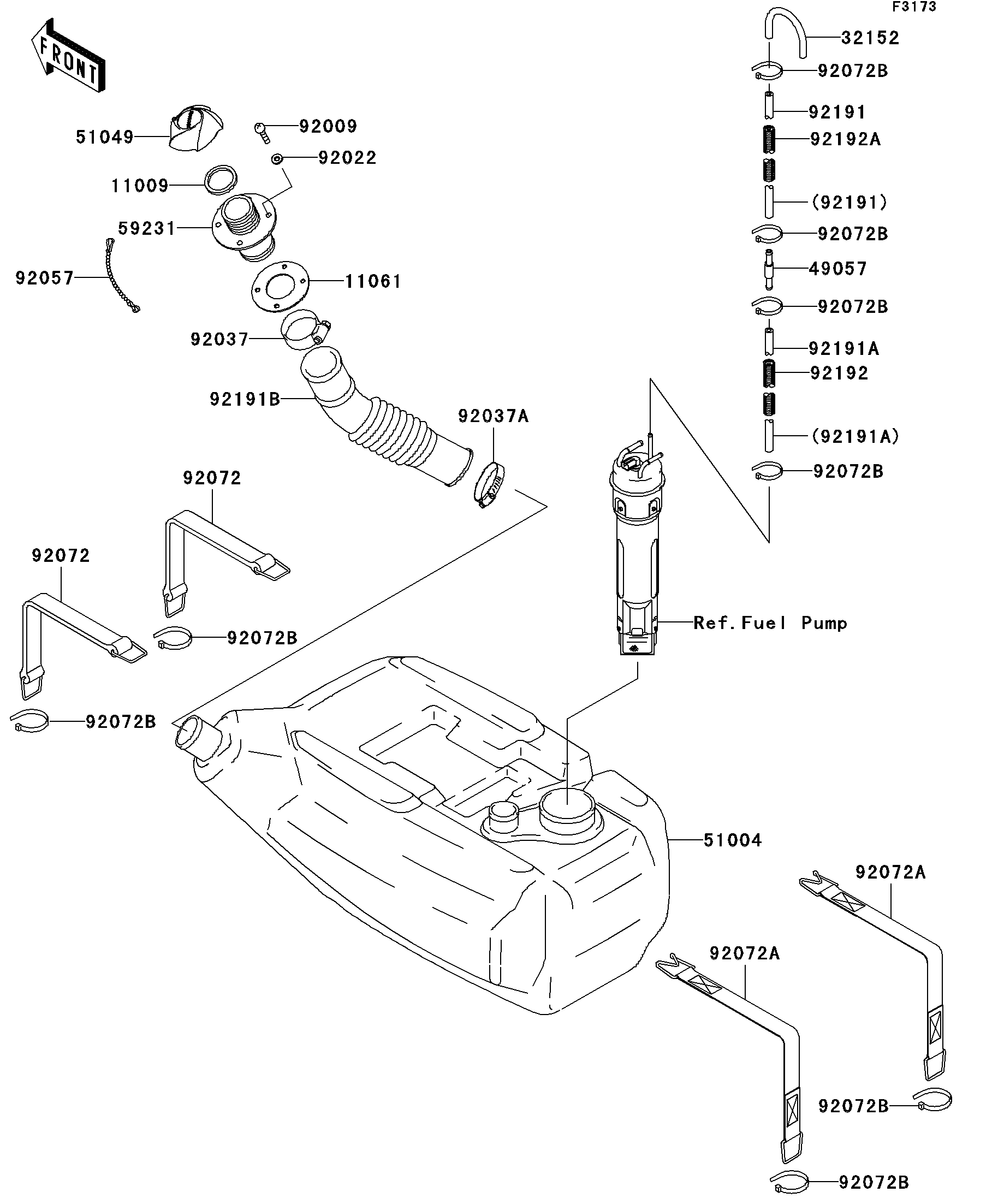

2006 STX-12F - Fuel Tank(D6F)

DOWNLOAD PDF
SELECT A NEW PART
11009
11061
32152
49057
51004
51049
59231
92009
92022
92037
92037A
92057
92072
92072
92072A
92072A
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92072B
92191
92191A
92191B
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET 11061 11061-3701 1
PIPE 32152 32152-3705 1
VALVE-RELIEF 49057 49057-3707 1
TANK-FUEL 51004 51004-3739 1
CAP-TANK,FUEL 51049 51049-3725 1
FILLER,FUEL TANK 59231 59231-3716 1
SCREW,TAPPING,4X16 92009 92009-3849 4
WASHER 92022 92022-563 4
CLAMP 92037 92037-3009 1
CLAMP 92037A 92037-3738 1
CHAIN,COVER,L=100 92057 92057-3704 1
BAND 92072 92072-3845 2
BAND 92072A 92072-3850 2
BAND,L=99 92072B 92072-3871 8
TUBE,5.8X10.8X1000 92191 92191-3736 1
TUBE,5.8X10.8X100 92191A 92191-3828 1
TUBE,FUEL TANK - FILLER 92191B 92191-3903 1
TUBE,CORRUGATED,L=120 92192 92192-3749 1
TUBE,CORRUGATED,L=700 92192A 92192-3750 1
