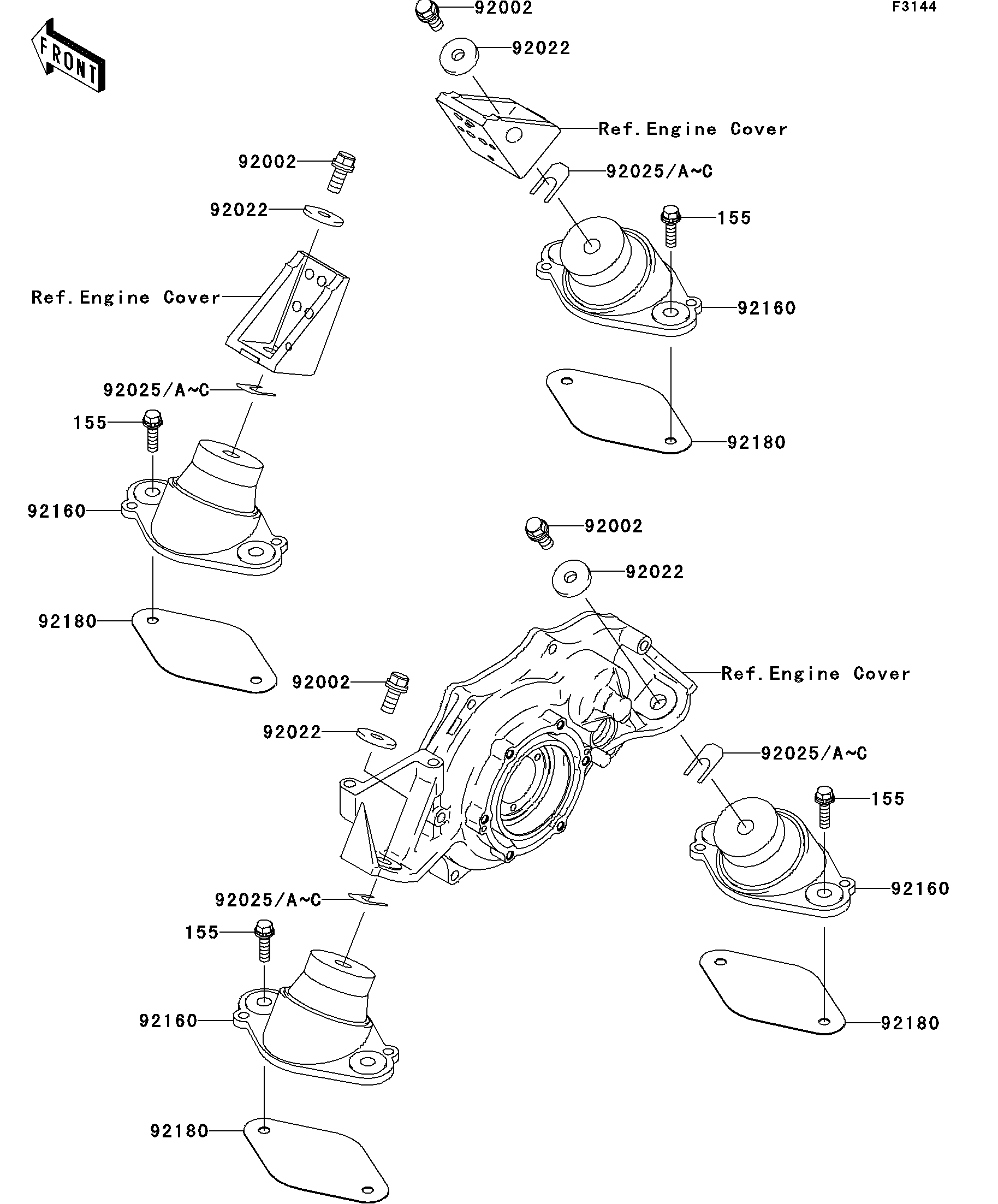

2004 STX-12F - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
92002
92002
92002
92002
92022
92022
92022
92022
92025
92025
92025
92025
92025A
92025A
92025A
92025A
92025B
92025B
92025B
92025B
92025C
92025C
92025C
92025C
92160
92160
92160
92160
92180
92180
92180
92180
155
155
155
155
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,10X25 92002 92002-3770 4
WASHER,32X10.5X4 92022 92022-3023 4
SHIM,T=0.3MM 92025 92025-3705 AR
SHIM,T=0.5MM 92025A 92025-3706 AR
SHIM,T=1.0MM 92025B 92025-3707 AR
SHIM,T=1.5MM 92025C 92025-3708 AR
DAMPER,ENGINE MOUNT 92160 92160-3838 4
SHIM,T=1.0 92180 92180-3716 AR
BOLT-WSP-SMALL,8X30 155 155R0830 8
