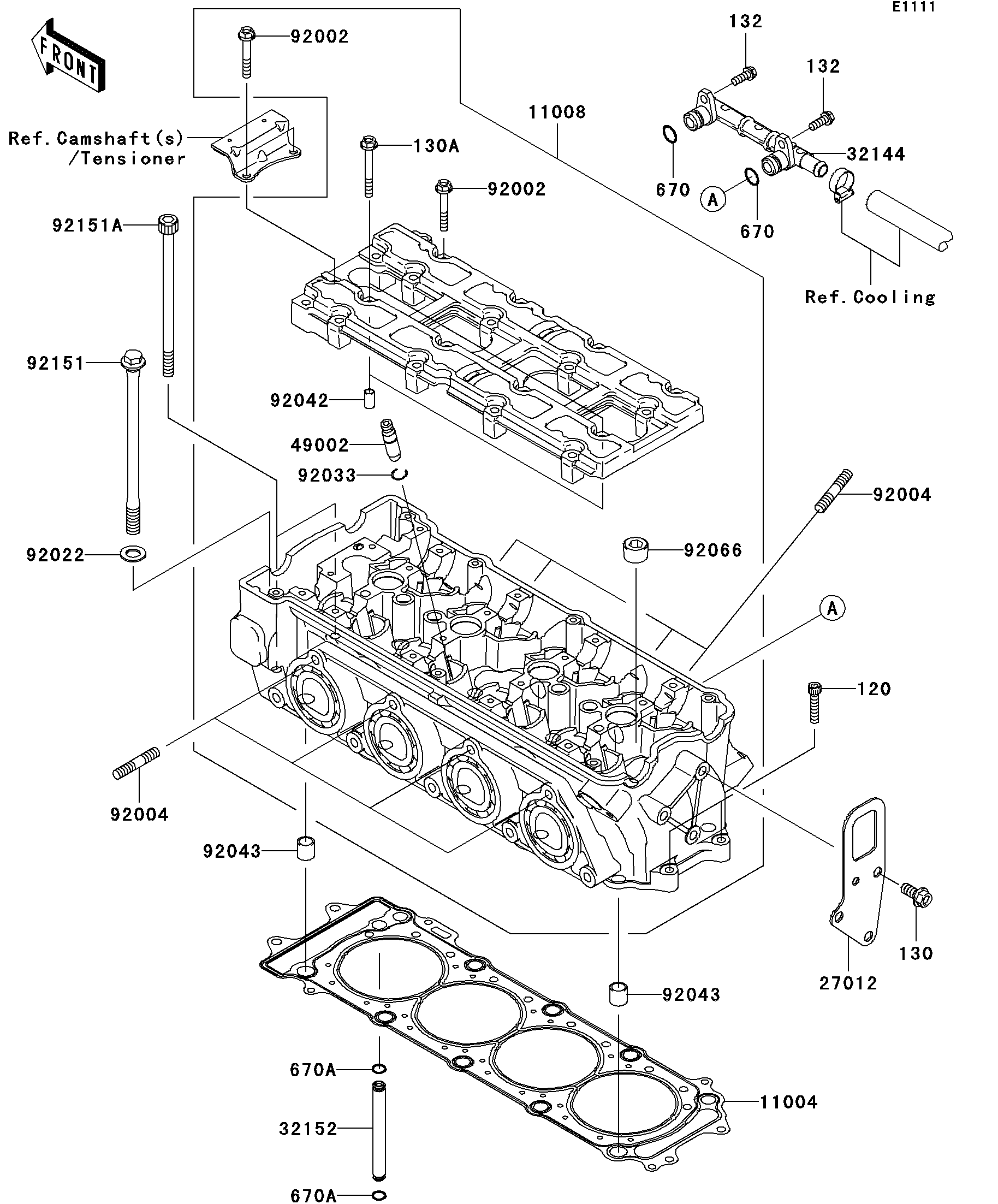

2005 STX-15F - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
27012
32144
32152
49002
92002
92002
92004
92004
92022
92033
92042
92043
92043
92066
92151
92151A
120
130
130A
132
132
670
670
670A
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-3721 1
HEAD-COMP-CYLINDER 11008 11008-3705 1
HOOK,ENGINE,RR 27012 27012-3856 1
PIPE-ASSY 32144 32144-3703 1
PIPE,OIL 32152 32152-1544 1
GUIDE-VALVE 49002 49002-1140 AR
BOLT,6X40 92002 92002-1756 18
STUD,8X30 92004 92004-3743 8
WASHER,11.5X20.5X1.6 92022 92022-1720 10
RING-SNAP 92033 92033-1247 16
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,14X14 92043 92043-1593 2
PLUG,PT1/2X12.5 92066 92066-0002 5
BOLT,11X168 92151 92151-1513 10
BOLT,SOCKET,7X120 92151A 92151-1804 2
BOLT-SOCKET 120 120Z0630 2
BOLT-FLANGED 130 130Y0818 3
BOLT-FLANGED 130A 130Z0650 2
BOLT-FLANGED-SMALL 132 132Y0616 2
O RING,12MM 670 670B2012 2
O RING,7MM 670A 670D1507 2
