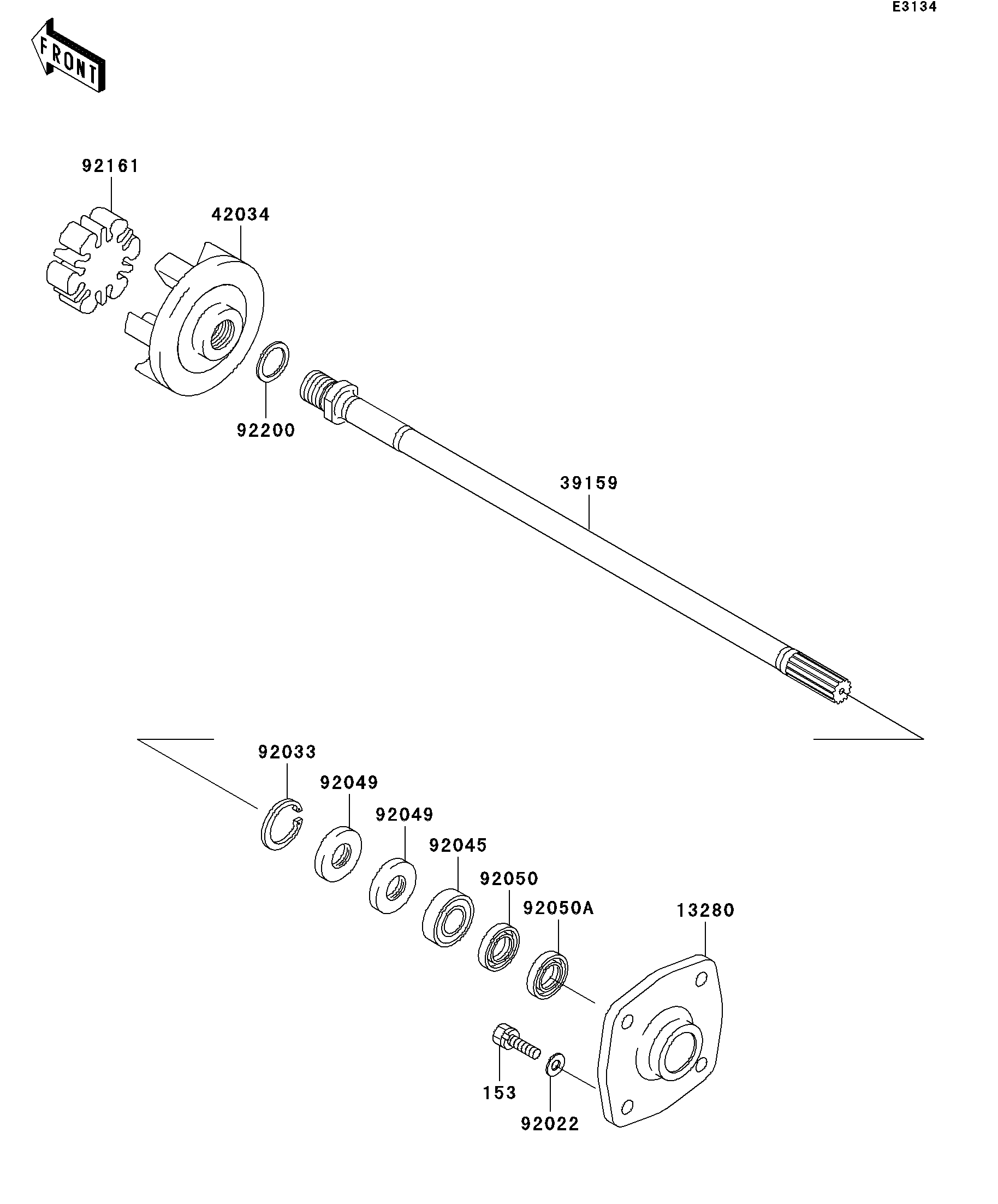

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-3730 1
SHAFT-DRIVE 39159 39159-3739 1
COUPLING 42034 42034-3711 1
WASHER,8.2X18X1.5 92022 92022-1964 4
RING-SNAP,42MM 92033 92033-3713 1
BEARING-BALL,60042RD 92045 92045-3705 1
SEAL-OIL,S620426 92049 92049-3707 2
SEAL-OIL,SCY20368 92050 92050-502 1
SEAL-OIL,SC20367 92050A 92050-503 1
DAMPER 92161 92161-3711 1
WASHER,24X32X2.0 92200 92200-3739 1
BOLT-WS-SMALL 153 153R0830 4
