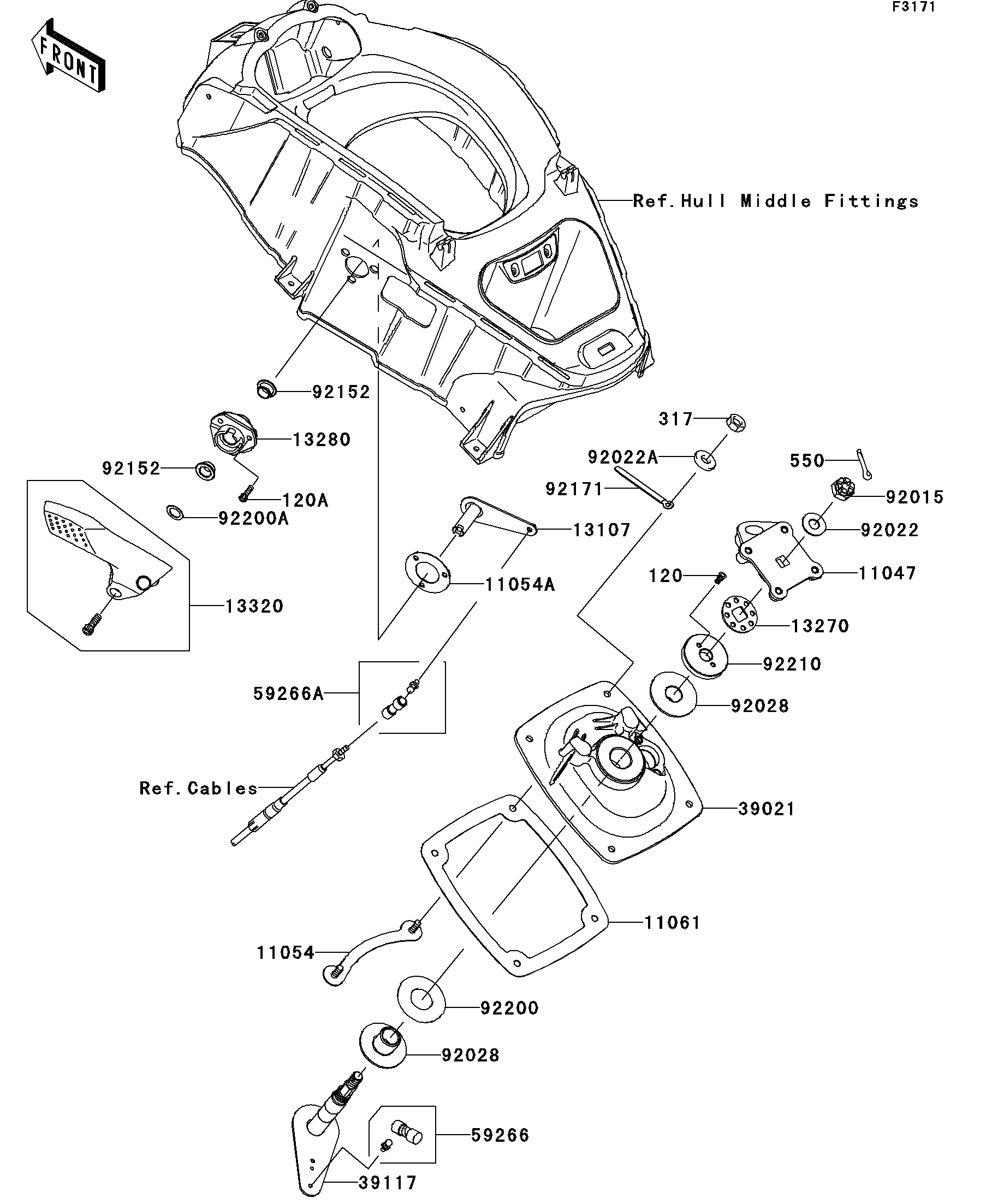

2008 Jet Ski® Ultra® LX - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
11047
11054
11054A
11061
13107
13270
13280
13320
39021
39117
59266
59266A
92015
92022
92022A
92028
92028
92152
92152
92171
92200
92200A
92210
120
120A
317
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HANDLE HOLDER 11047 11047-3759 1
BRACKET,HANDLE POLE BRACKET 11054 11054-3701 2
BRACKET 11054A 11054-3712 1
GASKET,HANDLE POLE BRACKET 11061 11061-3739 1
SHAFT 13107 13107-3799 1
PLATE,STEERING NUT 13270 13270-3808 1
HOLDER 13280 13280-3752 1
LEVER-ASSY,REVERSE 13320 13320-3719 1
BRACKET-HANDLE POLE 39021 39021-3716 1
SHAFT-STRG 39117 39117-3715 1
JOINT-BALL 59266 59266-3707 1
JOINT-BALL 59266A 59266-3710 1
NUT,CASTLE,14MM 92015 92015-3805 1
WASHER,15X34X2.0 92022 92022-3738 1
WASHER,8.4X23X2.5 92022A 92022-3744 4
BUSHING,STEERING 92028 92028-3748 2
COLLAR 92152 92152-3748 2
CLAMP,L=150 92171 92171-3717 1
WASHER,32.5X70X2 92200 92200-3718 1
WASHER,16.5X25X1 92200A 92200-3800 1
NUT,STEERING SHAFT,22MM 92210 92210-3776 1
BOLT-SOCKET,5X10 120 120R0510 2
BOLT-SOCKET,6X20 120A 120R0620 3
NUT-HEX-SMALL 317 317R0800 4
PIN-COTTER,3X35 550 550S3035 1
