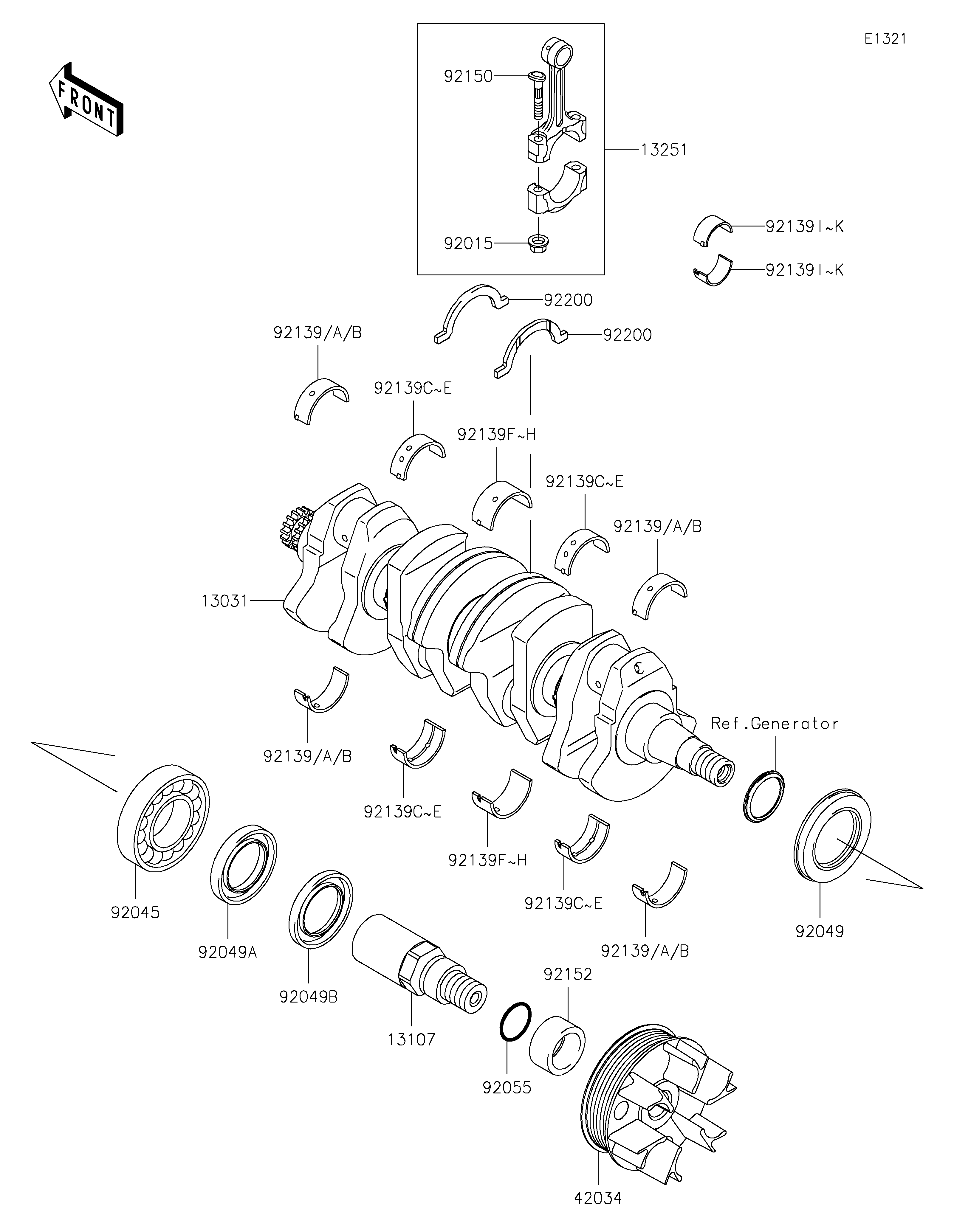

2008 Jet Ski® Ultra® 250X - Crankshaft
13031
13107
13251
42034
92015
92045
92049
92049A
92049B
92055
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92139C
92139C
92139C
92139C
92139D
92139D
92139D
92139D
92139E
92139E
92139E
92139E
92139F
92139F
92139G
92139G
92139H
92139H
92139I
92139I
92139J
92139J
92139K
92139K
92150
92152
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CRANKSHAFT-COMP | 13031 | 13031-3742 | 1 | ||
SHAFT | 13107 | 13107-3785 | 1 | ||
ROD-ASSY-CONNECTING,J | 13251 | 13251-3702-JJ | AR | ||
COUPLING | 42034 | 42034-3716 | 1 | ||
NUT,CONNECTING ROD | 92015 | 92015-1559 | 8 | ||
BEARING-BALL,6208ZZ AS2S | 92045 | 92045-3739 | 1 | ||
SEAL-OIL,SD347626LHS | 92049 | 92049-3736 | 1 | ||
SEAL-OIL,FPJ740628.5ZS | 92049A | 92049-3737 | 1 | ||
SEAL-OIL,S40626NS | 92049B | 92049-3738 | 1 | ||
RING-O | 92055 | 92055-091 | 1 | ||
BUSH,CRANK,#1,BLU,S/C MODEL | 92139 | 92139-1231 | 4 | ||
BUSH,CRANK,#1,BLK,S/C MODEL | 92139A | 92139-1232 | AR | ||
BUSH,CRANK,#1,BRN,S/C MODEL | 92139B | 92139-1233 | AR | ||
BUSH,CRANK,#2,BLU,S/C MODEL | 92139C | 92139-1234 | 4 | ||
BUSH,CRANK,#2,BLK,S/C MODEL | 92139D | 92139-1235 | AR | ||
BUSH,CRANK,#2,BRN,S/C MODEL | 92139E | 92139-1236 | AR | ||
BUSH,CRANK,#3,BLU,S/C MODEL | 92139F | 92139-1237 | 2 | ||
BUSH,CRANK,#3,BLK,S/C MODEL | 92139G | 92139-1238 | AR | ||
BUSH,CRANK,#3,BRN,S/C MODEL | 92139H | 92139-1239 | AR | ||
BUSHING,CONNECTING ROD,BLUE | 92139I | 92139-3708 | 8 | ||
BUSHING,CONNECTING ROD,BLACK | 92139J | 92139-3709 | AR | ||
BUSHING,CONNECTING ROD,BROWN | 92139K | 92139-3710 | AR | ||
BOLT,CONNECTING ROD,9MM | 92150 | 92150-1362 | 8 | ||
COLLAR,OUTPUT RR,L=19.5 | 92152 | 92152-3733 | 1 | ||
WASHER | 92200 | 92200-3789 | 2 |
