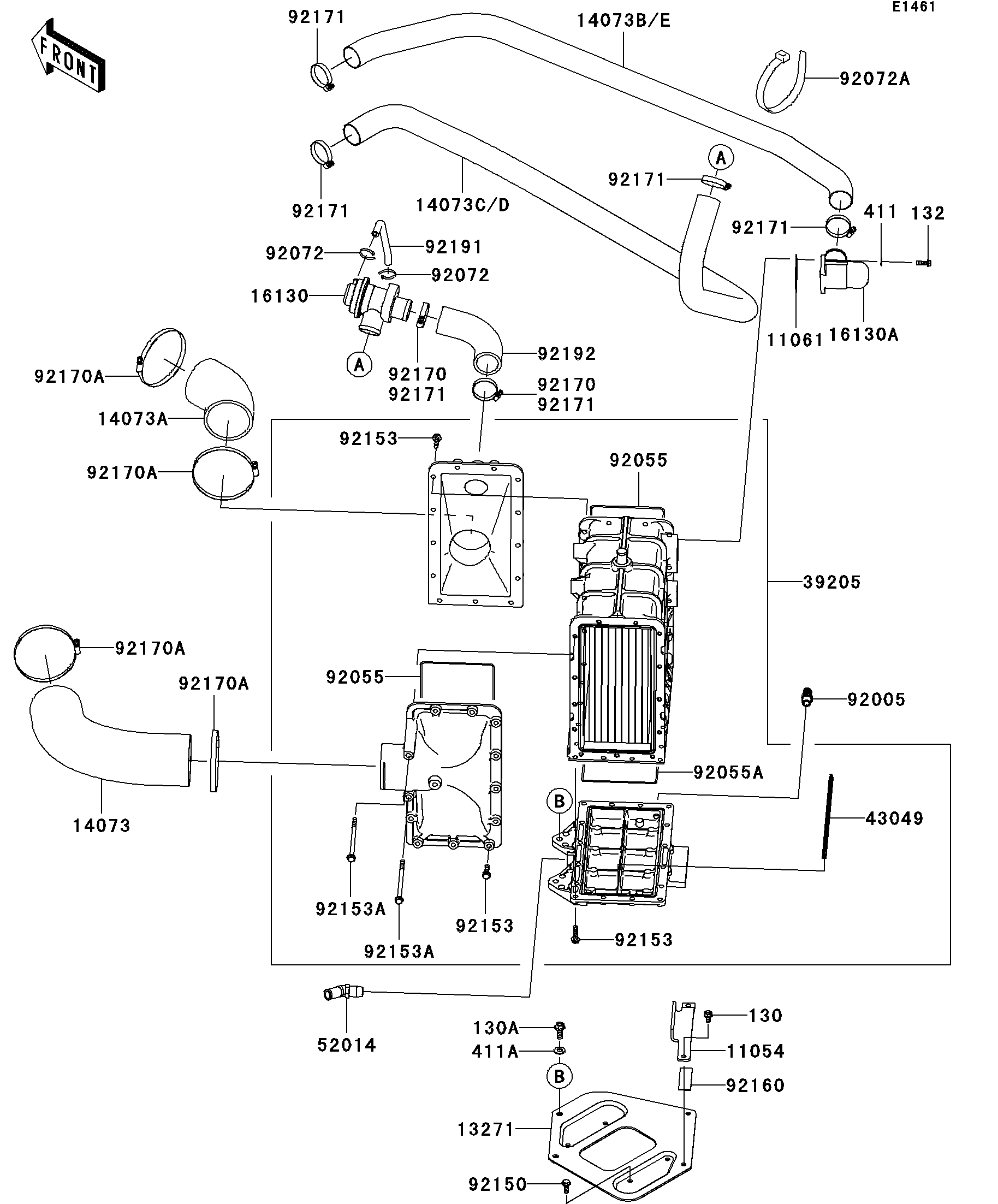

2008 Jet Ski® Ultra® 250X - Inter Cooler
11054
11061
13271
14073
14073A
14073D
14073E
16130
16130A
39205
43049
52014
92005
92055
92055
92055A
92072
92072
92072A
92150
92153
92153
92153
92153A
92153A
92160
92170A
92170A
92170A
92170A
92171
92171
92171
92171
92171
92171
92191
92192
130
130A
132
411
411A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11054 | 11054-3739 | 1 | ||
GASKET | 11061 | 11061-3750 | 1 | ||
PLATE | 13271 | 13271-3940 | 1 | ||
DUCT,S/C-I/C | 14073 | 14073-3813 | 1 | ||
DUCT,I/C-TH. | 14073A | 14073-3823 | 1 | ||
DUCT | 14073D | 14073-3834 | 1 | ||
DUCT,BLOW OFF VALVE-A/C | 14073E | 14073-3835 | 1 | ||
VALVE-ASSY-RELIEF,AIR BLEED | 16130 | 16130-3703 | 1 | ||
VALVE-ASSY-RELIEF,BLOW OFF | 16130A | 16130-3705 | 1 | ||
HEAT EXCHANGER,INTERCOOLER | 39205 | 39205-3701 | 1 | ||
PACKING | 43049 | 43049-3719 | 1 | ||
ELBOW | 52014 | 52014-3714 | 1 | ||
FITTING | 92005 | 92005-3714 | 1 | ||
RING-O | 92055 | 92055-3779 | 2 | ||
RING-O | 92055A | 92055-3780 | 1 | ||
BAND,L=100.08 | 92072 | 92072-3882 | 2 | ||
BAND,L=372.24 | 92072A | 92072-3883 | 1 | ||
BOLT,6X18 | 92150 | 92150-3729 | 4 | ||
BOLT,FLANGED,6X25 | 92153 | 92153-3750 | 40 | ||
BOLT,FLANGED,6X110 | 92153A | 92153-3751 | 2 | ||
DAMPER | 92160 | 92160-1075 | 1 | ||
CLAMP | 92170A | 92170-3764 | 4 | ||
CLAMP | 92171 | 92171-3724 | 6 | ||
TUBE,5.8X10.8X140 | 92191 | 92191-3823 | 1 | ||
TUBE,I/C-ABV | 92192 | 92192-3784 | 1 | ||
BOLT-FLANGED,6X12 | 130 | 130CD0612 | 2 | ||
BOLT-FLANGED,8X20 | 130A | 130CD0820 | 2 | ||
BOLT-FLANGED-SMALL,6X18 | 132 | 132BD0618 | 2 | ||
WASHER-PLAIN,6MM | 411 | 411S0600 | 2 | ||
WASHER-PLAIN,8MM | 411A | 411S0800 | 2 |
BRACKET | |
REF # | 11054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,S/C-I/C | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,I/C-TH. | |
REF # | 14073A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT | |
REF # | 14073D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,BLOW OFF VALVE-A/C | |
REF # | 14073E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY-RELIEF,AIR BLEED | |
REF # | 16130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY-RELIEF,BLOW OFF | |
REF # | 16130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HEAT EXCHANGER,INTERCOOLER | |
REF # | 39205 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=100.08 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=372.24 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X18 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 40 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X110 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
TUBE,5.8X10.8X140 | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,I/C-ABV | |
REF # | 92192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X20 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X18 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,8MM | |
REF # | 411A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
