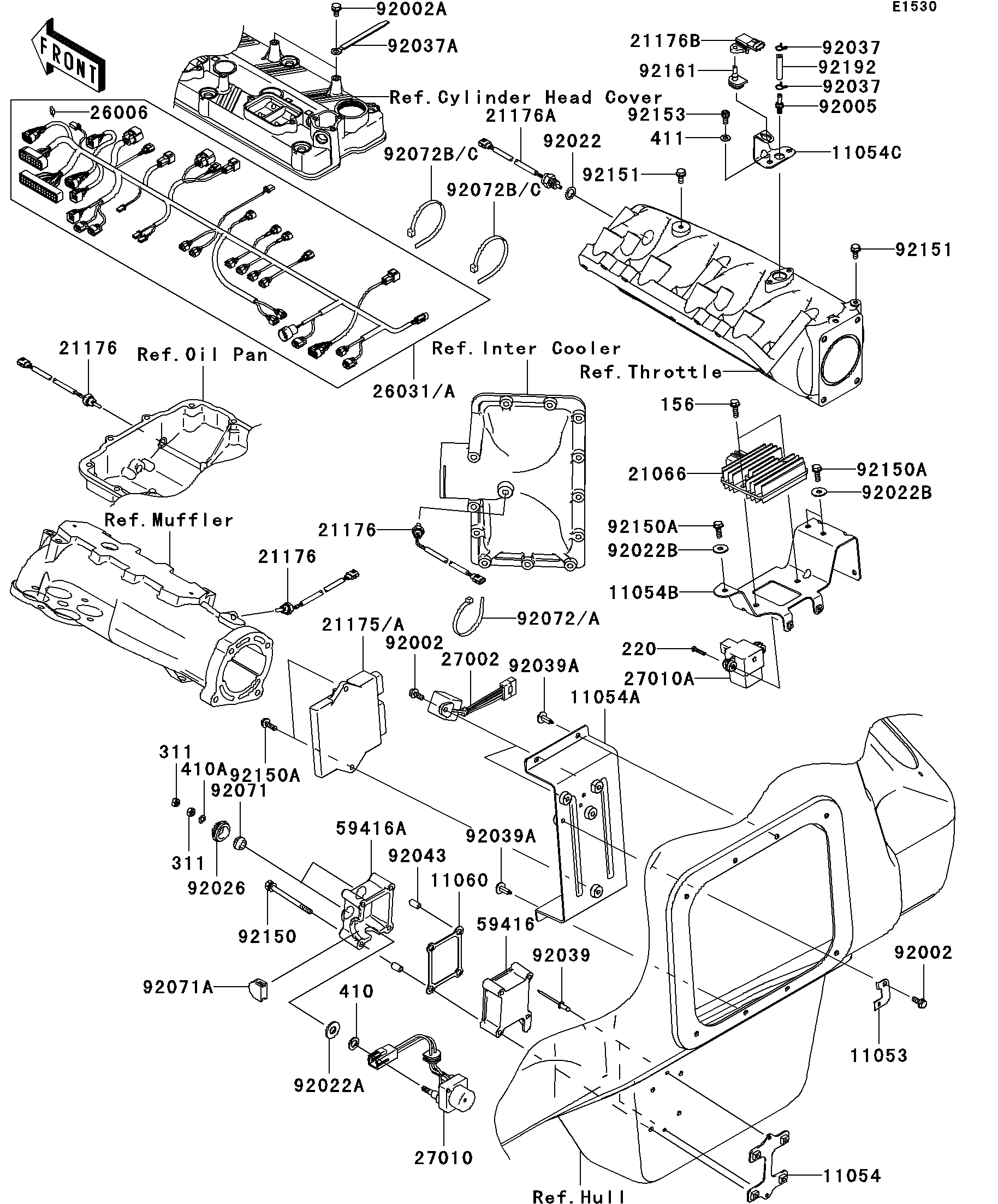

2008 Jet Ski® Ultra® 250X - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11054
11054
11054A
11054A
11054B
11054B
11054C
11054C
11060
11060
21066
21066
21175A
21175A
21176
21176
21176
21176
21176
21176
21176A
21176A
21176B
21176B
26006
26006
26031A
26031A
27002
27002
27010
27010
27010A
27010A
59416
59416
59416A
59416A
92002
92002
92002
92002
92002A
92002A
92005
92005
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92026
92026
92037
92037
92037
92037
92037A
92037A
92039
92039
92039A
92039A
92039A
92039A
92043
92043
92071
92071
92071A
92071A
92072
92072
92072C
92072C
92072C
92072C
92150
92150
92150A
92150A
92150A
92150A
92150A
92150A
92151
92151
92151
92151
92153
92153
92161
92161
92192
92192
156
156
220
220
311
311
311
311
410
410
410A
410A
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUSE 11053 11053-3724 1
BRACKET,SWITCH 11054 11054-3742 1
BRACKET,ECU&RELAY 11054A 11054-3743 1
BRACKET,REGULATOR&VDS 11054B 11054-3749 1
BRACKET 11054C 11054-3750 1
GASKET 11060 11060-3709 1
REGULATOR-VOLTAGE 21066 21066-3718 1
CONTROL UNIT-ELECTRONIC 21175A 21175-3738 1
SENSOR,TEMP 21176 21176-3758 3
SENSOR,AIR TEMPERATURE 21176A 21176-3767 1
SENSOR,BOOST 21176B 21176-3768 1
FUSE,20A 26006 26006-3704 1
HARNESS,ENGINE 26031A 26031-3725 1
RELAY-ASSY 27002 27002-3703 2
SWITCH 27010 27010-3777 1
SWITCH,SENSOR 27010A 27010-3785 1
CASE-ELECTRIC 59416 59416-3710 1
CASE-ELECTRIC 59416A 59416-3711 1
BOLT,6X16 92002 92002-3728 3
BOLT,6X12 92002A 92002-3763 2
FITTING 92005 92005-0056 1
WASHER,12X18X1.0 92022 92022-1211 1
WASHER 92022A 92022-3035 2
WASHER,6.5X20X1.5 92022B 92022-3710 3
SPACER 92026 92026-3703 2
CLAMP,TUBE 92037 92037-3025 2
CLAMP,L=100 92037A 92037-3736 2
RIVET 92039 92039-3714 2
RIVET 92039A 92039-3785 4
PIN 92043 92043-3715 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3837 1
BAND,L=188.85 92072 92072-0105 1
BAND,L=372.24 92072C 92072-3883 2
BOLT,6X80 92150 92150-3711 4
BOLT,6X18 92150A 92150-3729 5
BOLT,6X14 92151 92151-3788 2
BOLT,SOCKET,6X12 92153 92153-1525 2
DAMPER 92161 92161-0041 1
TUBE,3.5X8X38.5 92192 92192-3823 1
BOLT-WP,6X20 156 156R0620 2
SCREW-PAN-CROSS,4X20 220 220R0420 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410AA1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
WASHER-PLAIN,6MM 411 411S0600 2
