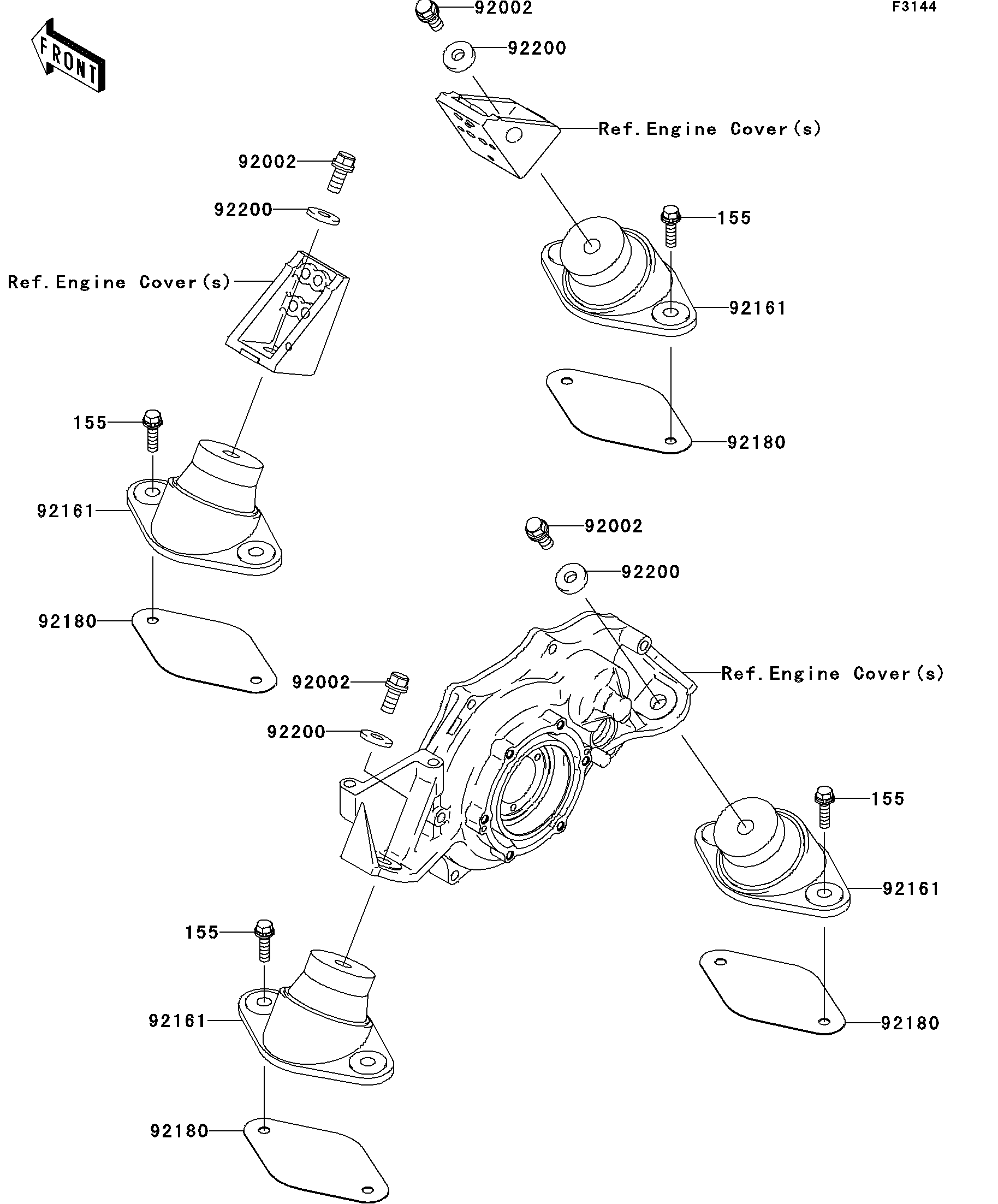

2008 Jet Ski® Ultra® 250X - Engine Mount
92002
92002
92002
92002
92161
92161
92161
92161
92180
92180
92180
92180
92200
92200
92200
92200
155
155
155
155
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,10X25 | 92002 | 92002-3770 | 4 | ||
DAMPER,ENGINE MOUNT | 92161 | 92161-3789 | 4 | ||
SHIM,T=1.0 | 92180 | 92180-3716 | AR | ||
WASHER,10.5X26X4 | 92200 | 92200-3798 | 4 | ||
BOLT-WSP-SMALL,8X30 | 155 | 155R0830 | 8 |
BOLT,10X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,ENGINE MOUNT | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHIM,T=1.0 | |
REF # | 92180 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
WASHER,10.5X26X4 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-WSP-SMALL,8X30 | |
REF # | 155 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
