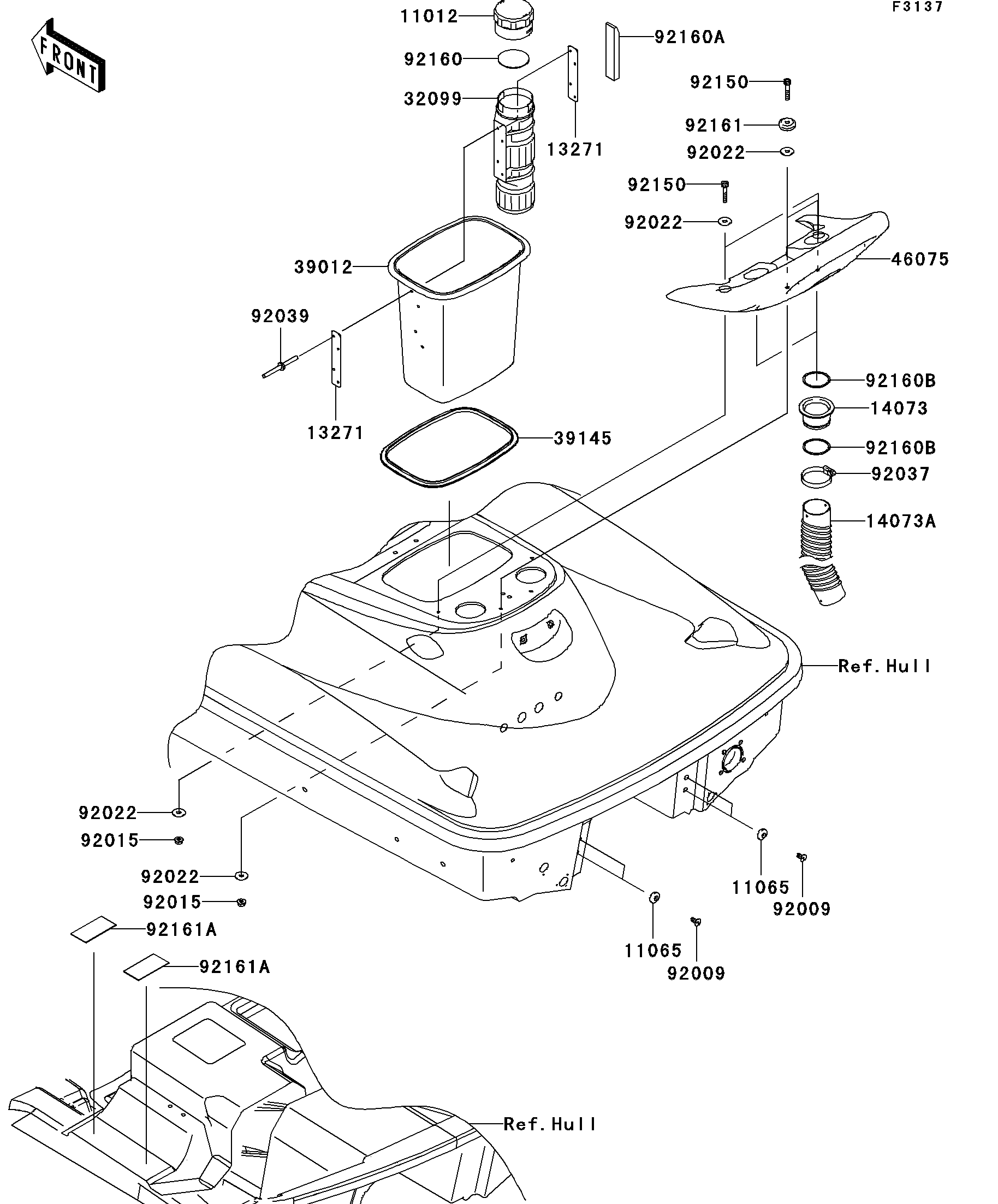

2009 Jet Ski® STX - Hull Rear Fittings
11012
11065
11065
13271
13271
14073
14073A
32099
39012
39145
46075
92009
92009
92015
92015
92022
92022
92022
92022
92037
92039
92150
92150
92160
92160A
92160B
92160B
92161
92161A
92161A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FIRE EXTINGUISHER | 11012 | 11012-3766 | 1 | ||
| CAP,STEP NUT,F.BLACK | 11065 | 11065-3728-6Z | 4 | ||
| PLATE,FIRE EXTINGUISHER | 13271 | 13271-3775 | 2 | ||
| DUCT | 14073 | 14073-3798 | 2 | ||
| DUCT | 14073A | 14073-3799 | 2 | ||
| CASE,FIRE EXTINGUISHER | 32099 | 32099-3769 | 1 | ||
| CASE-STORAGE,RR | 39012 | 39012-3727 | 1 | ||
| TRIM-SEAL,REAR STORAGE | 39145 | 39145-3767 | 1 | ||
| GRIP,RR,F.BLACK | 46075 | 46075-3755-6Z | 1 | ||
| SCREW,6X12 | 92009 | 92009-3852 | 4 | ||
| NUT,6MM | 92015 | 92015-3767 | 4 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 8 | ||
| CLAMP | 92037 | 92037-3738 | 2 | ||
| RIVET | 92039 | 92039-3783 | 4 | ||
| BOLT,SOCKET,6X30 | 92150 | 92150-3822 | 4 | ||
| DAMPER | 92160 | 92160-3814 | 1 | ||
| DAMPER | 92160A | 92160-3821 | 1 | ||
| DAMPER | 92160B | 92160-3910 | 4 | ||
| DAMPER | 92161 | 92161-3717 | 2 | ||
| DAMPER | 92161A | 92161-3728 | 2 |
| CAP,FIRE EXTINGUISHER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEP NUT,F.BLACK | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE,FIRE EXTINGUISHER | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE,FIRE EXTINGUISHER | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-STORAGE,RR | |
| REF # | 39012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL,REAR STORAGE | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,F.BLACK | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X30 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
