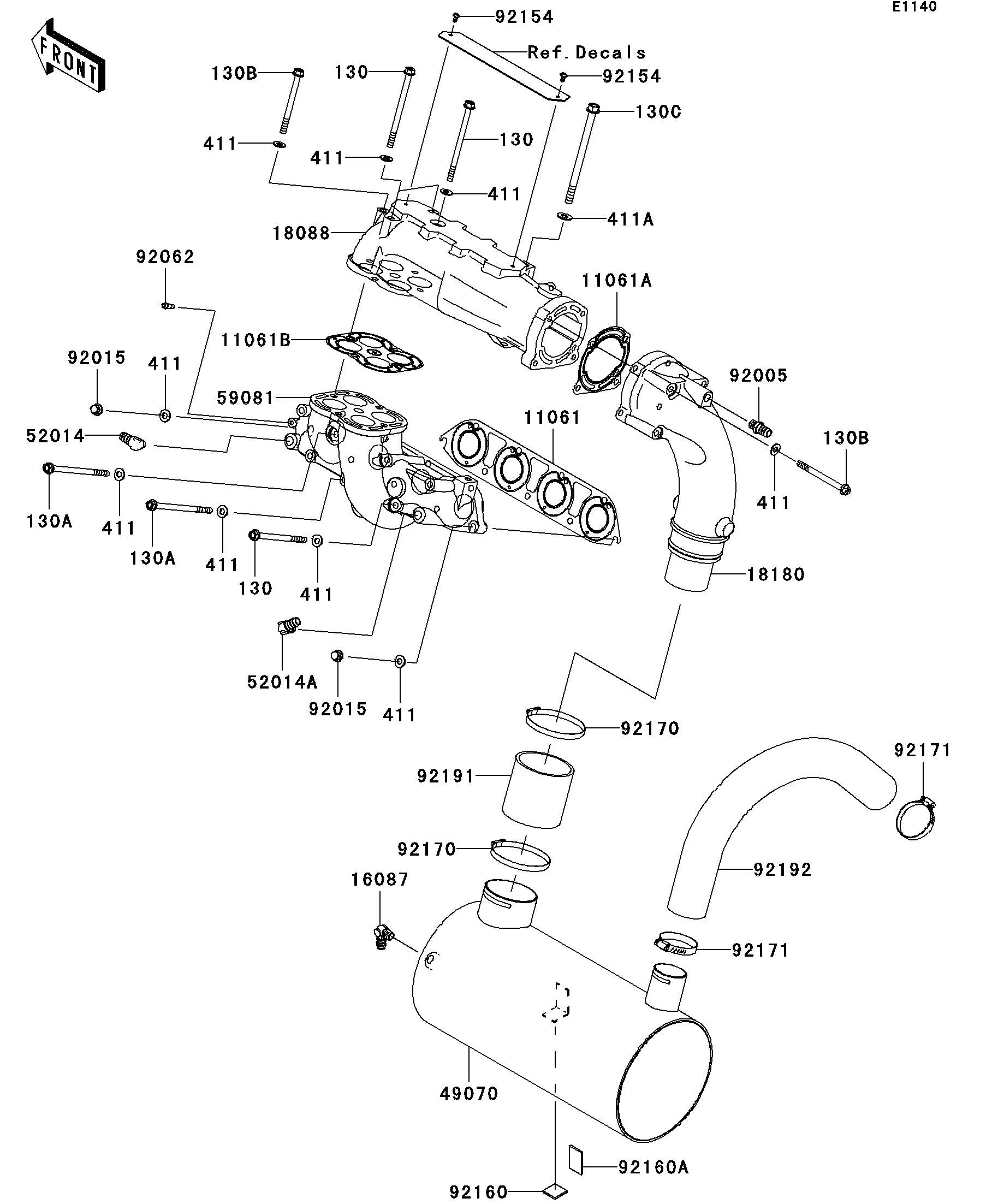

2009 Jet Ski® Ultra® 260X - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
16087
18088
18180
49070
52014
52014A
59081
92005
92015
92015
92062
92154
92154
92160
92160A
92170
92170
92171
92171
92191
92192
130
130
130
130A
130A
130B
130B
130C
411
411
411
411
411
411
411
411
411
411A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAUST 11061 11061-3742 1
GASKET,MUFFLER 11061A 11061-3760 1
GASKET,PIPE EXHAUST 11061B 11061-3762 1
VALVE-CHECK 16087 16087-3714 1
PIPE-EXHAUST 18088 18088-3726 1
BODY-MUFFLER 18180 18180-3741 1
MUFFLER-COMP,1ST 49070 49070-3752 1
ELBOW 52014 52014-3711 1
ELBOW 52014A 52014-3726 1
MANIFOLD-EXHAUST 59081 59081-3743 1
FITTING 92005 92005-3714 1
NUT,CAP,8MM 92015 92015-1371 2
NOZZLE 92062 92062-3705 1
BOLT,SOCKET,5X10 92154 92154-0211 2
DAMPER,25X25 92160 92160-3864 1
DAMPER,40X25 92160A 92160-3865 1
CLAMP 92170 92170-3760 2
CLAMP 92171 92171-3723 2
TUBE,PIPE EX-MUFFLER 92191 92191-3986 1
TUBE,1ST-TAIL PIPE 92192 92192-3831 1
BOLT-FLANGED,8X120 130 130CD08120 8
BOLT-FLANGED,8X140 130A 130CD08140 2
BOLT-FLANGED,8X95 130B 130CD0895 5
BOLT-FLANGED,10X150 130C 130CD10150 1
WASHER-PLAIN,8MM 411 411S0800 17
WASHER-PLAIN,10MM 411A 411S1000 1
