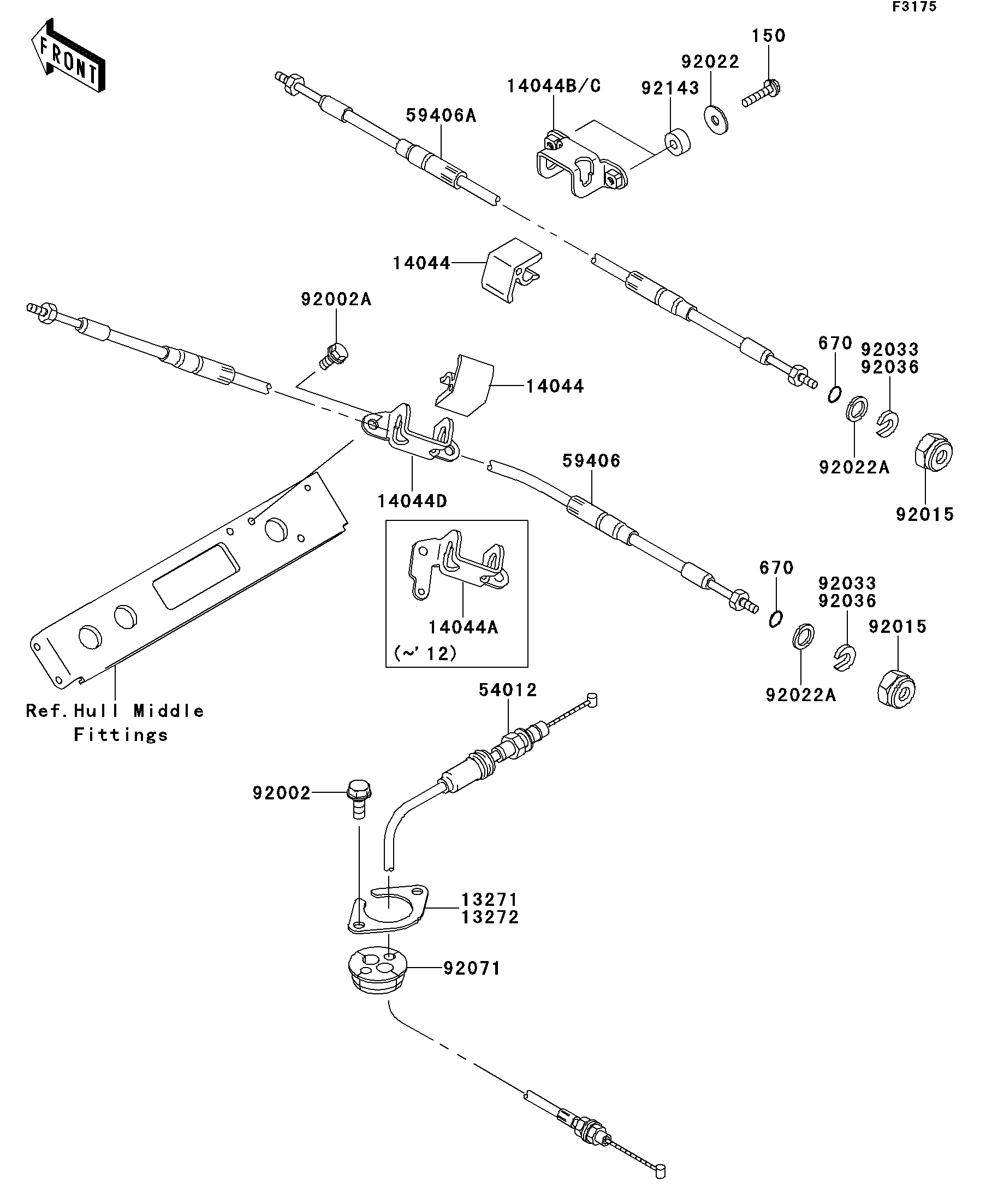

2014 JET SKI® STX®-15F - Cables

DOWNLOAD PDF
SELECT A NEW PART
13272
14044
14044
14044C
14044D
54012
59406
59406A
92002
92002A
92015
92015
92022
92022A
92022A
92033
92033
92071
92143
150
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-3729 1
HOLDER-CABLE,STEERING 14044 14044-3714 2
HOLDER-CABLE,STEERING 14044C 14044-3771 1
HOLDER-CABLE 14044D 14044-3772 1
CABLE-THROTTLE 54012 54012-3771 1
CABLE-STRG 59406 59406-3778 1
CABLE-STRG,REVERSE 59406A 59406-3779 1
BOLT,6X16 92002 92002-3728 2
BOLT,6X20 92002A 92002-3755 2
NUT,20MM 92015 92015-526 2
WASHER,6.5X20X1.5 92022 92022-3710 2
WASHER 92022A 92022-535 2
RING-SNAP,7.7X17.5X3.0 92033 92033-3737 2
GROMMET,HARNESS 92071 92071-3790 1
COLLAR,6.2X16X7.5 92143 92143-3769 2
BOLT-WS,6X25 150 150R0625 2
O RING,11MM 670 670B2011 2
