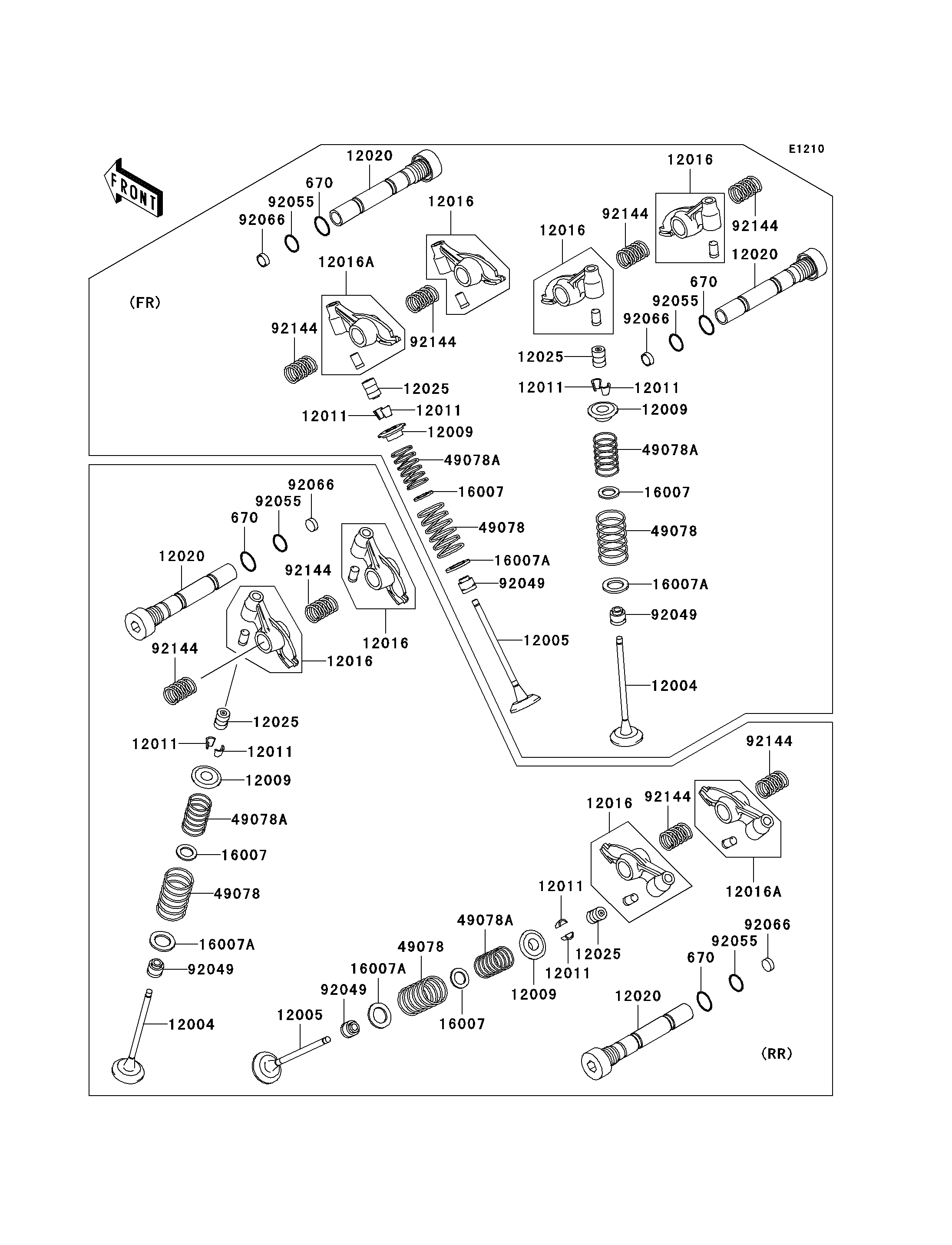

2003 Vulcan 1500 Mean Streak - Valve(s)
670
670
670
670
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12016
12016
12016
12016
12016
12016
12016A
12016A
12020
12020
12020
12020
12025
12025
12025
12025
16007
16007
16007
16007
16007A
16007A
16007A
16007A
49078
49078
49078
49078
49078A
49078A
49078A
49078A
92049
92049
92049
92049
92055
92055
92055
92055
92066
92066
92066
92066
92144
92144
92144
92144
92144
92144
92144
92144
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING,20MM | 670 | 670B2020 | 4 | ||
| VALVE-INTAKE | 12004 | 12004-1153 | 4 | ||
| VALVE-EXHAUST | 12005 | 12005-1317 | 4 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-005 | 8 | ||
| COLLET,RETAINER | 12011 | 12011-004 | 16 | ||
| ARM-ROCKER | 12016 | 12016-1112 | 6 | ||
| ARM-ROCKER | 12016A | 12016-1113 | 2 | ||
| SHAFT-ROCKER | 12020 | 12020-1061 | 4 | ||
| ADJUSTER-LASH | 12025 | 12025-1054 | 8 | ||
| SEAT-SPRING | 16007 | 16007-1031 | 8 | ||
| SEAT-SPRING,OUTER | 16007A | 16007-1137 | 8 | ||
| SPRING-ENGINE VALVE,OUTER | 49078 | 49078-1157 | 8 | ||
| SPRING-ENGINE VALVE,INNER | 49078A | 49078-1158 | 8 | ||
| SEAL-OIL,RV37129.5 | 92049 | 92049-016 | 8 | ||
| RING-O | 92055 | 92055-025 | 4 | ||
| PLUG | 92066 | 92066-1198 | 4 | ||
| SPRING,ROCKER ARM | 92144 | 92144-1221 | 8 |
