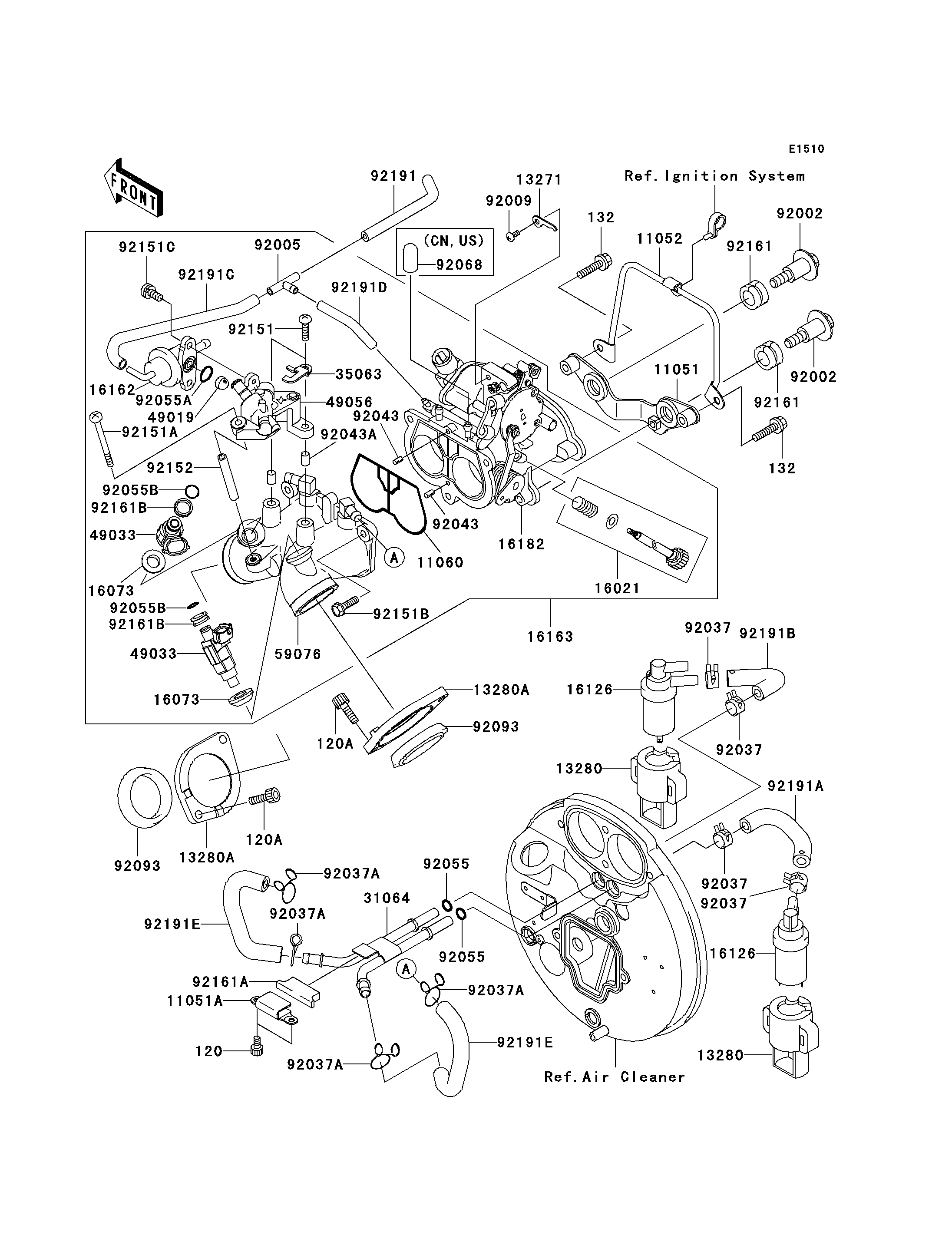

2003 Vulcan 1500 Mean Streak - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11051A
11051A
11052
11052
11060
11060
13271
13271
13280
13280
13280
13280
13280A
13280A
13280A
13280A
16021
16021
16073
16073
16073
16073
16126
16126
16126
16126
16162
16162
16163
16163
16182
16182
31064
31064
35063
35063
49019
49019
49033
49033
49033
49033
49056
49056
59076
59076
92002
92002
92002
92002
92005
92005
92009
92009
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92043
92043
92043
92043
92043A
92043A
92055
92055
92055
92055
92055A
92055A
92055B
92055B
92055B
92055B
92093
92093
92093
92093
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92152
92152
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
120
120
120A
120A
120A
120A
132
132
132
132
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191D
92191D
92191E
92191E
92191E
92191E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11051 11051-1333 1
BRACKET 11051A 11051-1345 1
BRACKET,HIGH TENSHION CORD 11052 11052-1067 1
GASKET,THROTTLE BODY 11060 11060-1928 1
PLATE,STARTER CABLE 13271 13271-1314 1
HOLDER 13280 13280-1139 2
HOLDER 13280A 13280-1154 2
SCREW-THROTTLE STOP 16021 16021-1227 1
INSULATOR 16073 16073-1119 2
VALVE 16126 16126-1372 2
REGULATOR-FUEL 16162 16162-1054 1
THROTTLE-ASSY 16163 16163-1113 1
BODY-THROTTLE 16182 16182-1003 1
PIPE-COMP 31064 31064-1242 1
STAY 35063 35063-1148 1
FILTER-FUEL,STRAINER 49019 49019-3707 1
NOZZLE-INJECTION 49033 49033-1057 2
PIPE-INJECTION 49056 49056-1054 1
MANIFOLD-INTAKE 59076 59076-1113 1
BOLT 92002 92002-1595 2
FITTING 92005 92005-1366 1
SCREW,4X6 92009 92009-1903 1
CLAMP 92037 92037-1181 4
CLAMP,FUEL TUBE 92037A 92037-1271 4
PIN,THROTTLE BODY 92043 92043-1600 2
PIN,DELIVERY PIPE 92043A 92043-1601 2
RING-O,7.8X3.5 92055 92055-029 2
RING-O,FUEL REGULATOR 92055A 92055-1620 1
RING-O,INJECTION NOZZLE 92055B 92055-1622 2
SEAL 92093 92093-1484 2
BOLT,5X20 92151 92151-1585 2
BOLT,5X75 92151A 92151-1586 1
BOLT,THROTTLE BODY 92151B 92151-1587 3
BOLT,6X12 92151C 92151-1588 2
COLLAR,DELIVERY PIPE 92152 92152-1206 1
DAMPER 92161 92161-1058 2
DAMPER 92161A 92161-1062 1
DAMPER,INJECTION NOZZLE 92161B 92161-1083 2
BOLT-SOCKET 120 120S0510 2
BOLT-SOCKET 120A 120Z0620 4
BOLT-FLANGED-SMALL 132 132J0625 2
TUBE,THROTTLE-BOOST 92191 92191-1298 1
TUBE,REAR VALVE,RED 92191A 92191-1367 1
TUBE,FRONT VALVE,BLUE 92191B 92191-1368 1
TUBE,L=130 92191C 92191-1402 1
TUBE,L=55 92191D 92191-1403 1
TUBE 92191E 92191-1608 2
PLUG,12X25 92068 92068-006 1 CNUS
