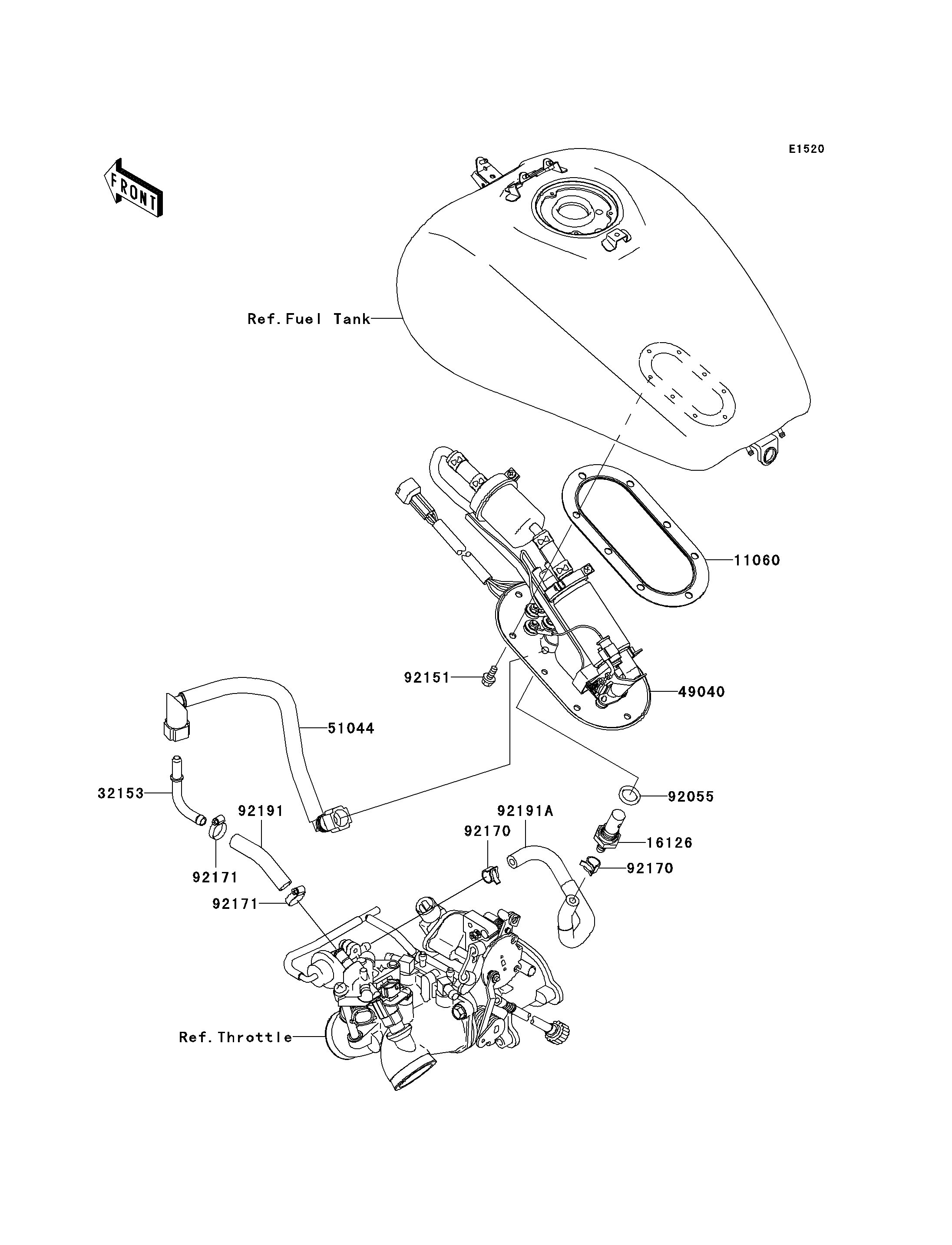

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11060 11060-1929 1
VALVE 16126 16126-1418 1
PIPE 32153 32153-1414 1
PUMP-FUEL 49040 49040-1074 1
TUBE-ASSY 51044 51044-1212 1
RING-O,14.8X2.4 92055 92055-1667 1
BOLT,FLANGED,5X12 92151 92151-1599 8
CLAMP 92170 92170-1492 2
CLAMP 92171 92171-1274 2
TUBE 92191 92191-1536 1
TUBE 92191A 92191-1557 1
