Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

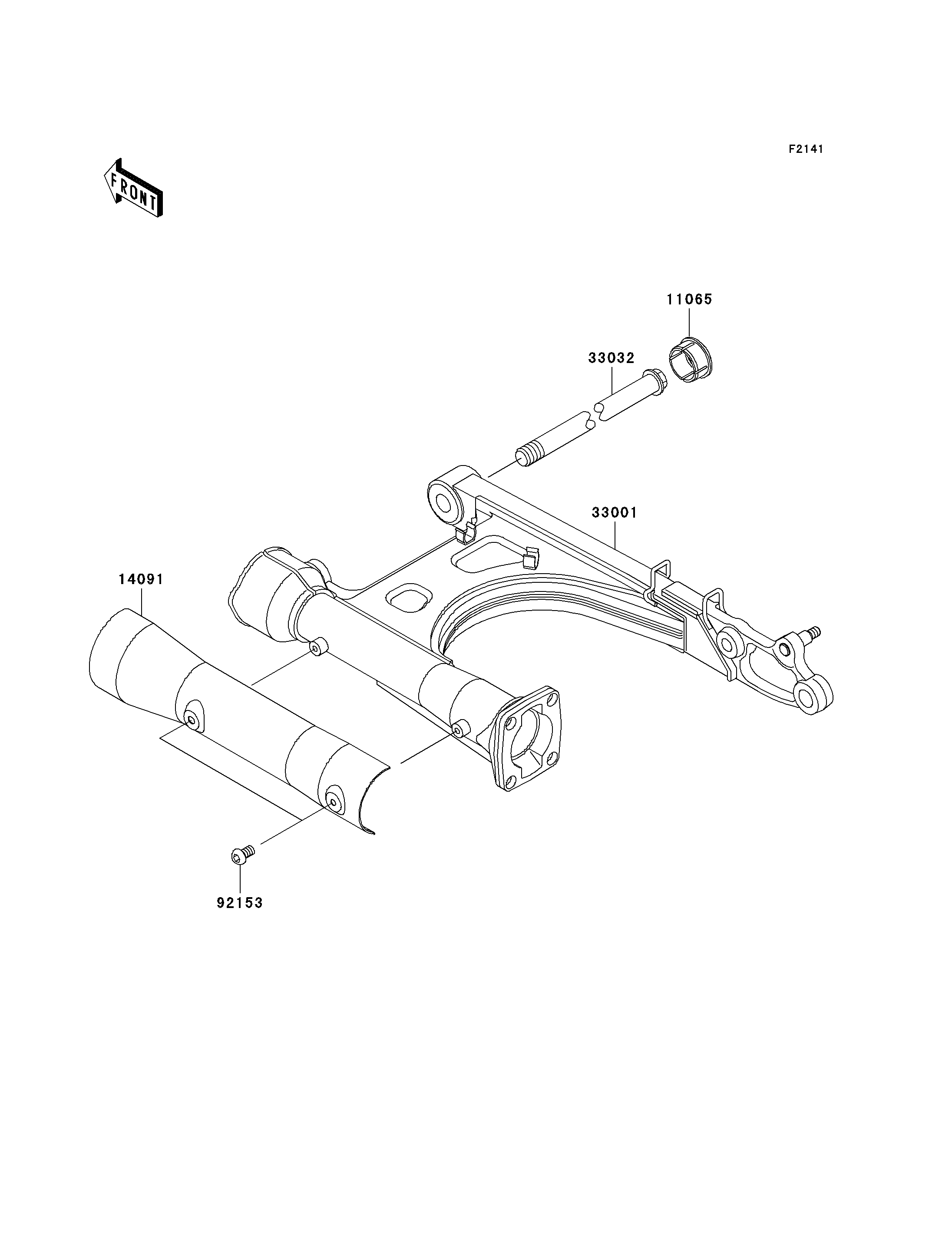

11065
14091
33001
33032
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11065 11065-1099 1
COVER,SWING ARM 14091 14091-1441 1
ARM-COMP-SWING 33001 33001-1604 1
SHAFT-SWING ARM 33032 33032-1181 1
BOLT,SOCKET,6X10 92153 92153-1096 2
