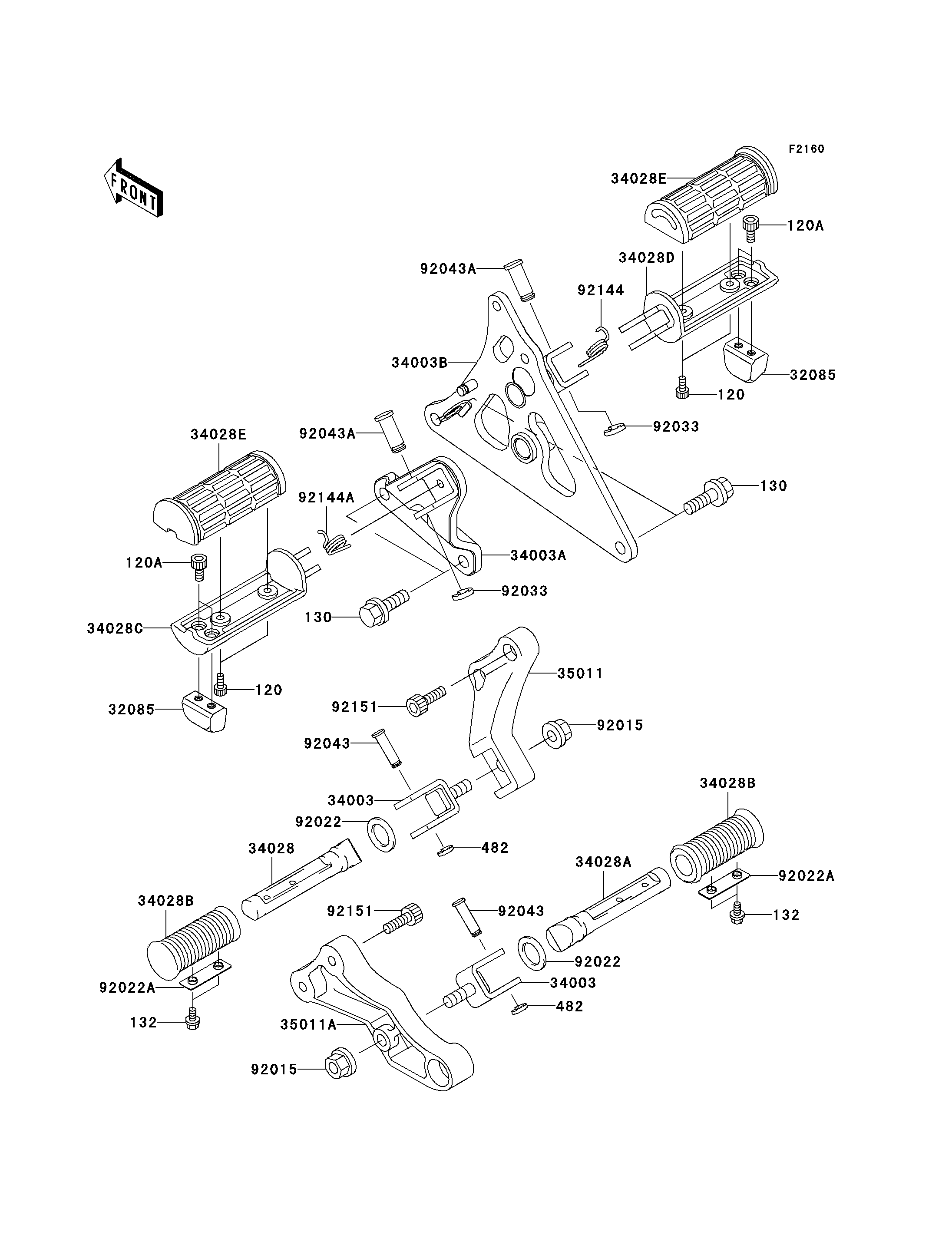

2003 Vulcan 1500 Mean Streak - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
120A
130
130
132
132
482
482
32085
32085
34003
34003
34003A
34003B
34028
34028A
34028B
34028B
34028C
34028D
34028E
34028E
35011
35011A
92015
92015
92022
92022
92022A
92022A
92033
92033
92043
92043
92043A
92043A
92144
92144A
92151
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 4
BOLT-SOCKET,6X14,BLACK 120A 120S0614 4
BOLT-FLANGED,10X30 130 130J1030 4
BOLT-FLANGED-SMALL 132 132J0510 4
CIRCLIP-TYPE-E 482 482L7000 2
STOPPER,BANK SENSOR 32085 32085-1534 2
HOLDER-STEP,RR 34003 34003-1292 2
HOLDER-STEP,FR,LH 34003A 34003-1506 1
HOLDER-STEP,FR,RH 34003B 34003-1507 1
STEP,RR,LH 34028 34028-1219 1
STEP,RR,RH 34028A 34028-1220 1
STEP,RR,RUBBER 34028B 34028-1221 2
STEP,FR,LH 34028C 34028-1519 1
STEP,FR,RH 34028D 34028-1520 1
STEP,RUBBER 34028E 34028-1522 2
STAY,REAR STEP,LH 35011 35011-1770 1
STAY,REAR STEP,RH 35011A 35011-1922 1
NUT,FLANGED,10MM 92015 92015-1428 2
WASHER,20X30X2.3 92022 92022-1568 2
WASHER,STEP 92022A 92022-1874 2
RING-SNAP,10MM 92033 92033-1166 2
PIN,8X36.5 92043 92043-1339 2
PIN,12X37 92043A 92043-1358 2
SPRING,STEP RETURN 92144 92144-1126 1
SPRING,STEP RETURN 92144A 92144-1210 1
BOLT,SOCKET,8X25 92151 92151-1525 4
