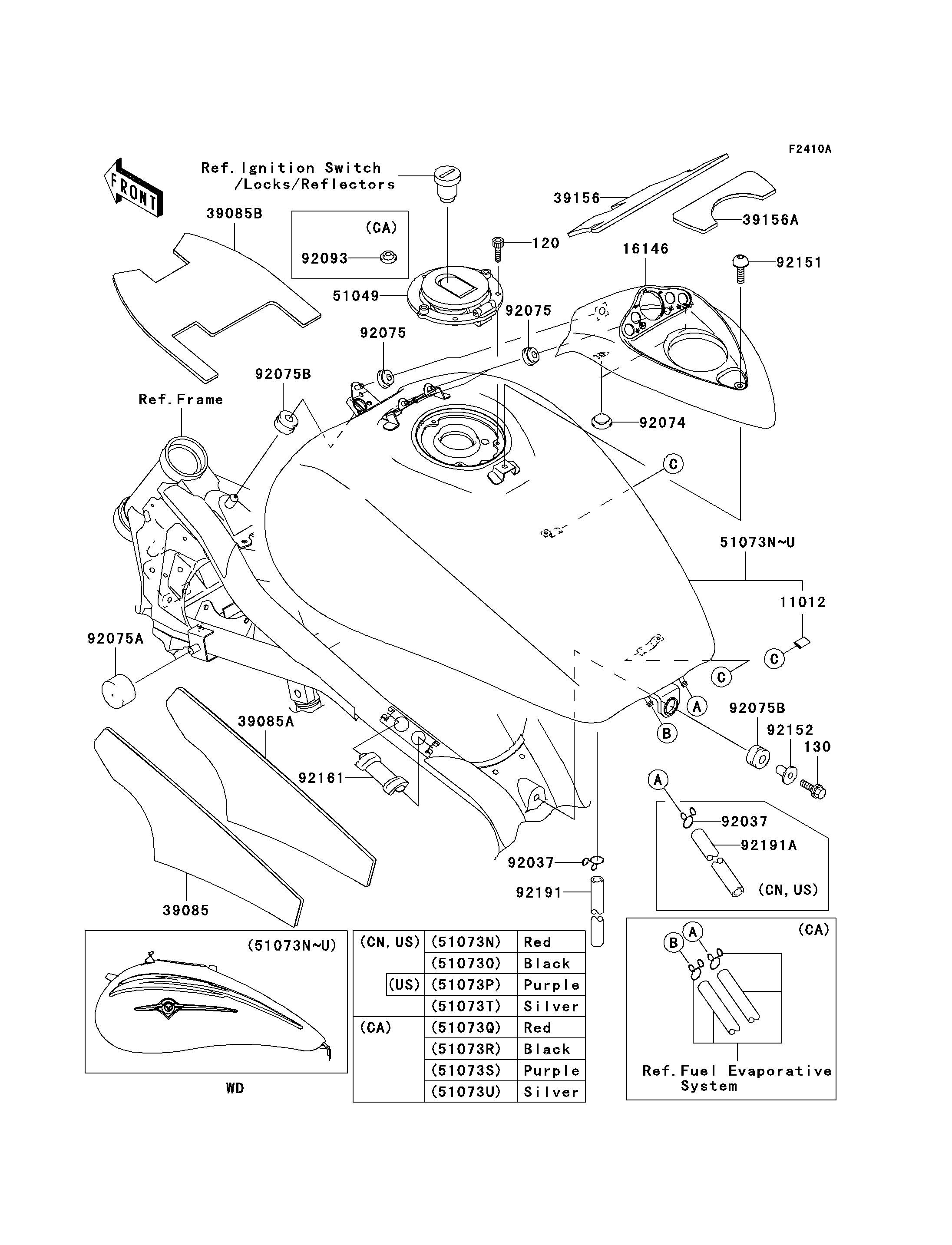

2003 Vulcan 1500 Mean Streak - Fuel Tank(VN1500-P2)
11012
11012
11012
16146
16146
16146
39085
39085
39085
39085A
39085A
39085A
39085B
39085B
39085B
39156
39156
39156
39156A
39156A
39156A
51049
51049
51049
120
120
120
130
130
130
92074
92074
92074
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92075B
92075B
92151
92151
92151
92152
92152
92152
92161
92161
92161
92191
92191
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1725 | 2 | ||
| COVER-ASSY,FUEL TANK | 16146 | 16146-1220 | 1 | ||
| PAD-TANK,FUEL TANK,LH | 39085 | 39085-1065 | 1 | ||
| PAD-TANK,FUEL TANK,RH | 39085A | 39085-1066 | 1 | ||
| PAD-TANK,FUEL TANK,CNT | 39085B | 39085-1067 | 1 | ||
| PAD,FUEL TANK COVER,FR | 39156 | 39156-1700 | 1 | ||
| PAD,FUEL TANK COVER,RR | 39156A | 39156-1701 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1124 | 1 | ||
| BOLT-SOCKET | 120 | 120S0512 | 3 | ||
| BOLT-FLANGED,8X30 | 130 | 130H0830 | 1 | ||
| PLUG,7X2 | 92074 | 92074-028 | 2 | ||
| DAMPER | 92075 | 92075-1011 | 3 | ||
| DAMPER,FUEL TANK | 92075A | 92075-125 | 2 | ||
| DAMPER | 92075B | 92075-1736 | 2 | ||
| BOLT,SOCKET,6X12 | 92151 | 92151-1940 | 1 | ||
| COLLAR | 92152 | 92152-1393 | 1 | ||
| DAMPER,FUEL TANK | 92161 | 92161-1245 | 2 | ||
| TUBE,DRAIN | 92191 | 92191-1272 | 1 | ||
| TANK-ASSY-FUEL,P.RED | 51073N | 51073-5021-234 | 1 | CNUS | |
| TANK-ASSY-FUEL,BLACK | 51073O | 51073-5022-B5 | 1 | CNUS | |
| TANK-ASSY-FUEL,M.M.PURPLE | 51073P | 51073-5023-3F | 1 | US | |
| TANK-ASSY-FUEL,P.RED | 51073Q | 51073-5024-234 | 1 | CA | |
| TANK-ASSY-FUEL,BLACK | 51073R | 51073-5025-B5 | 1 | CA | |
| TANK-ASSY-FUEL,M.M.PURPLE | 51073S | 51073-5026-3F | 1 | CA | |
| TANK-ASSY-FUEL,M.P.SILVER | 51073T | 51073-5027-GU | 1 | CNUS | |
| TANK-ASSY-FUEL,M.P.SILVER | 51073U | 51073-5028-GU | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 2 | CNUS | |
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
| TUBE,5X10X650 | 92191A | 92191-1529 | 1 | CNUS |
