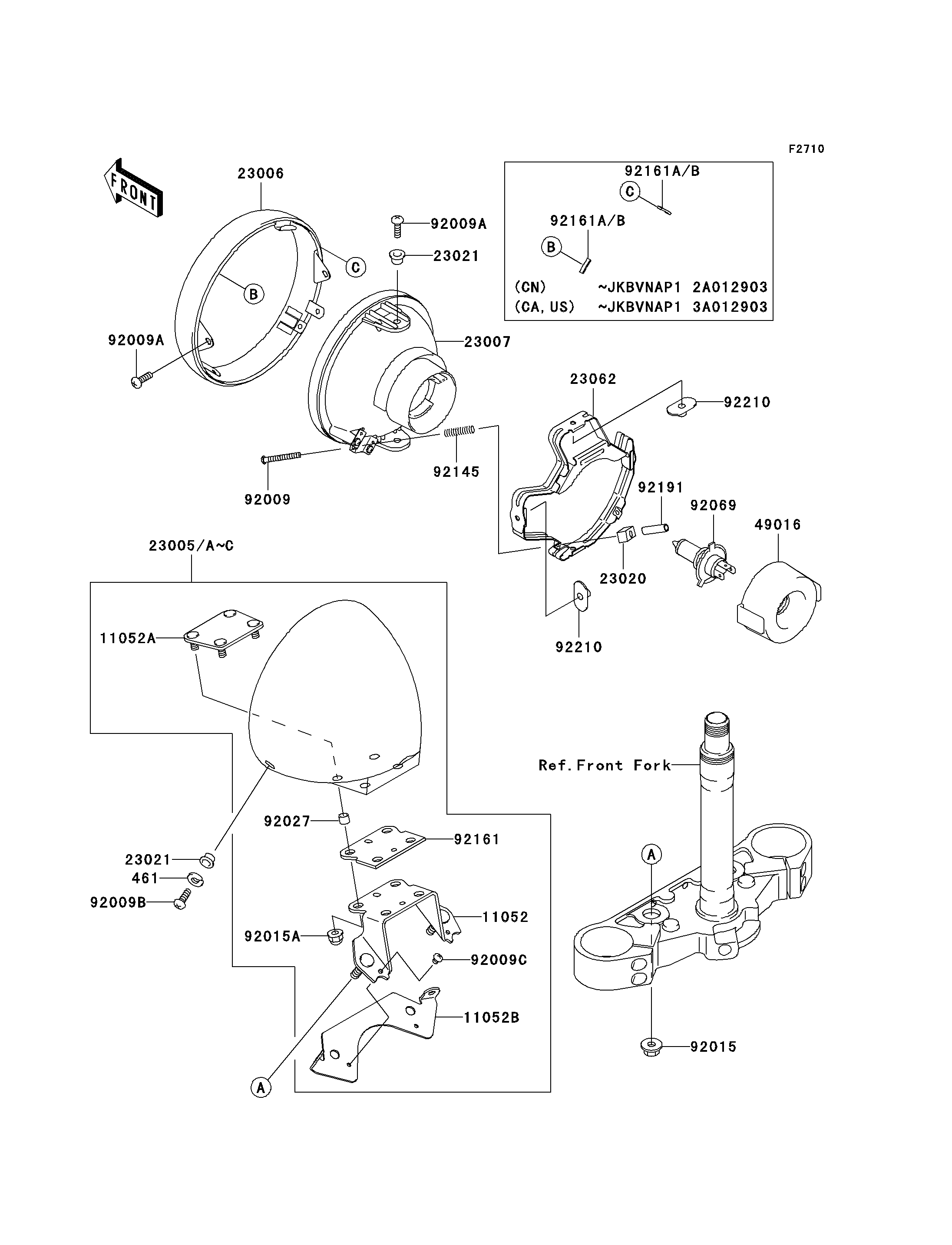

2003 Vulcan 1500 Mean Streak - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11052
11052
11052A
11052A
11052B
11052B
23005A
23005A
23005C
23005C
23006
23006
23007
23007
23020
23020
23021
23021
23021
23021
23062
23062
49016
49016
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92015
92015
92015A
92015A
92027
92027
92069
92069
92145
92145
92161
92161
461
461
92161B
92161B
92161B
92161B
92191
92191
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP BODY 11052 11052-1265 1
BRACKET,HEAD LAMP BODY 11052A 11052-1266 1
BRACKET,HEAD LAMP BODY 11052B 11052-1371 1
BODY-COMP-HEAD LAMP 23005A 23005-1188 1 CAUS ( - JKBVNAP1 3A012903)
BODY-COMP-HEAD LAMP 23005C 23005-1202 1 CAUS (JKBVNAP1 3A012904 - )
RIM-LAMP 23006 23006-1079 1
LENS-COMP,HEAD LAMP 23007 23007-1359 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
WASHER 23021 23021-010 4
BRACKET-COMP,HEAD LAMP 23062 23062-1131 1
COVER-SEAL,SOCKET 49016 49016-1203 1
SCREW,FOCUS ADJUST,4X60 92009 92009-1816 2
SCREW,5X16 92009A 92009-1879 4
SCREW,5MM 92009B 92009-1947 2
SCREW,4X5 92009C 92009-1988 2
NUT,FLANGED,8MM,BLACK 92015 92015-1183 2
NUT,CAP,6MM 92015A 92015-1385 4
COLLAR,6.8X10X6 92027 92027-103 4
BULB,12V 60/55W,H4 92069 92069-1002 1
SPRING,HEAD LAMP LENS 92145 92145-1268 2
DAMPER,HEAD LAMP BODY 92161 92161-1212 1
WASHER-SPRING,5MM 461 461F0500 2
DAMPER 92161B 92161-1271 2 CAUS ( - JKBVNAP1 3A012903)
TUBE,3.5X5.5X19 92191 92191-1217 2
NUT,SPECIAL,5MM 92210 92210-1060 4
BODY-COMP-HEAD LAMP 23005B 23005-1202 1 CN
