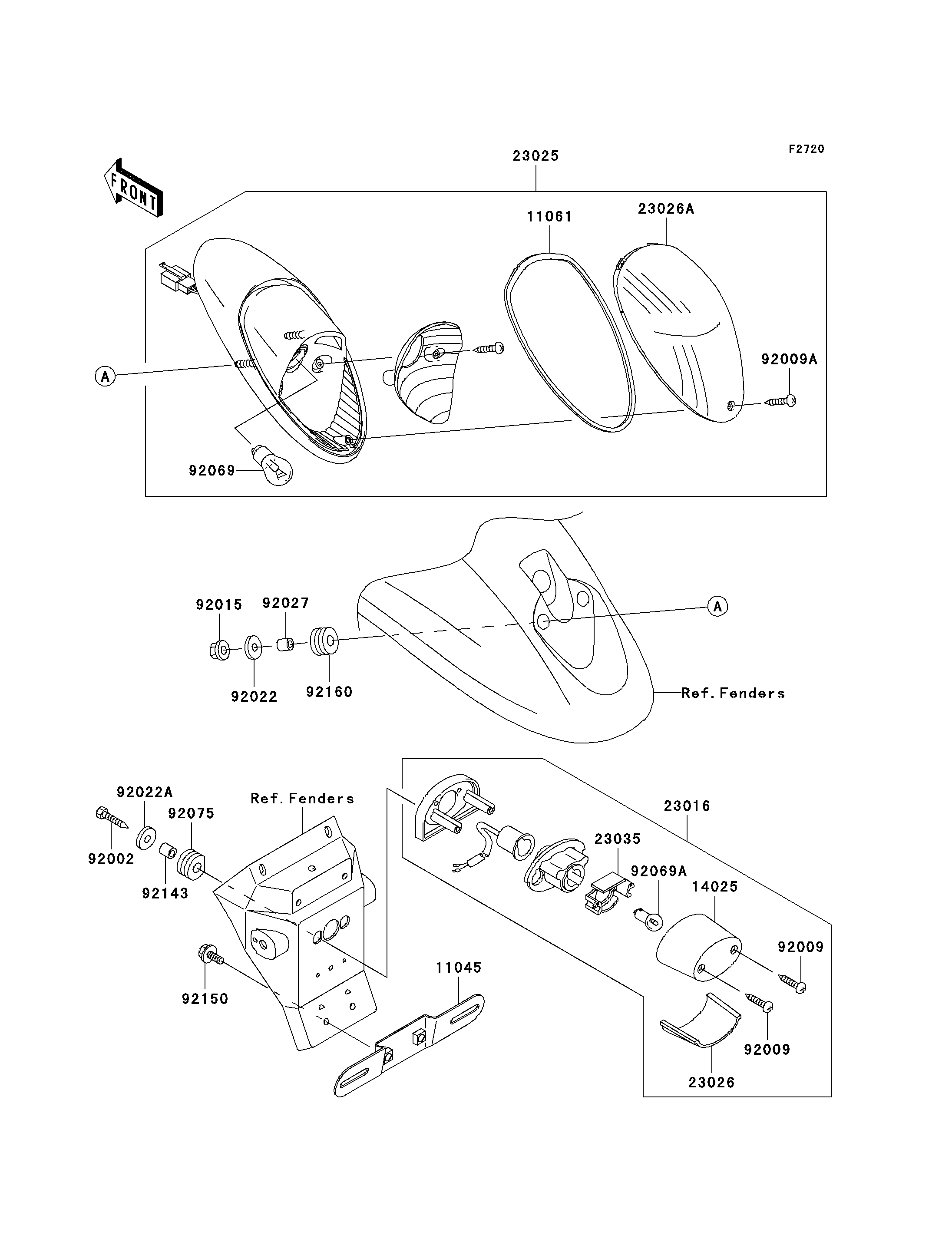

2003 Vulcan 1500 Mean Streak - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11045
11061
14025
23016
23025
23026
23026A
23035
92002
92009
92009
92009A
92015
92022
92022A
92027
92069
92069A
92075
92143
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11045 11045-1387 1
GASKET,TAIL LAMP LENS 11061 11061-1089 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-1193 1
LAMP-TAIL 23025 23025-1317 1
LENS,LICENSE LAMP 23026 23026-1064 1
LENS,TAIL LAMP 23026A 23026-1246 1
REFLECTOR-LAMP,LICENSE 23035 23035-1060 1
BOLT,TAPPING,5X25 92002 92002-1831 2
SCREW,TAPPING,4X20 92009 92009-1378 2
SCREW,TAPPING,4X16 92009A 92009-1966 1
NUT,FLANGED,6MM 92015 92015-1367 2
WASHER,6.5X20X1.6 92022 92022-1557 2
WASHER,5.5X20X1.2 92022A 92022-1581 2
COLLAR,6.8X10X12 92027 92027-162 2
BULB,12V 21/5W 92069 92069-063 1
BULB,12V 5W 92069A 92069-1055 1
DAMPER 92075 92075-1870 2
COLLAR,5.8X9X10.5 92143 92143-1047 2
BOLT,6X16 92150 92150-1909 2
DAMPER 92160 92160-1162 2
