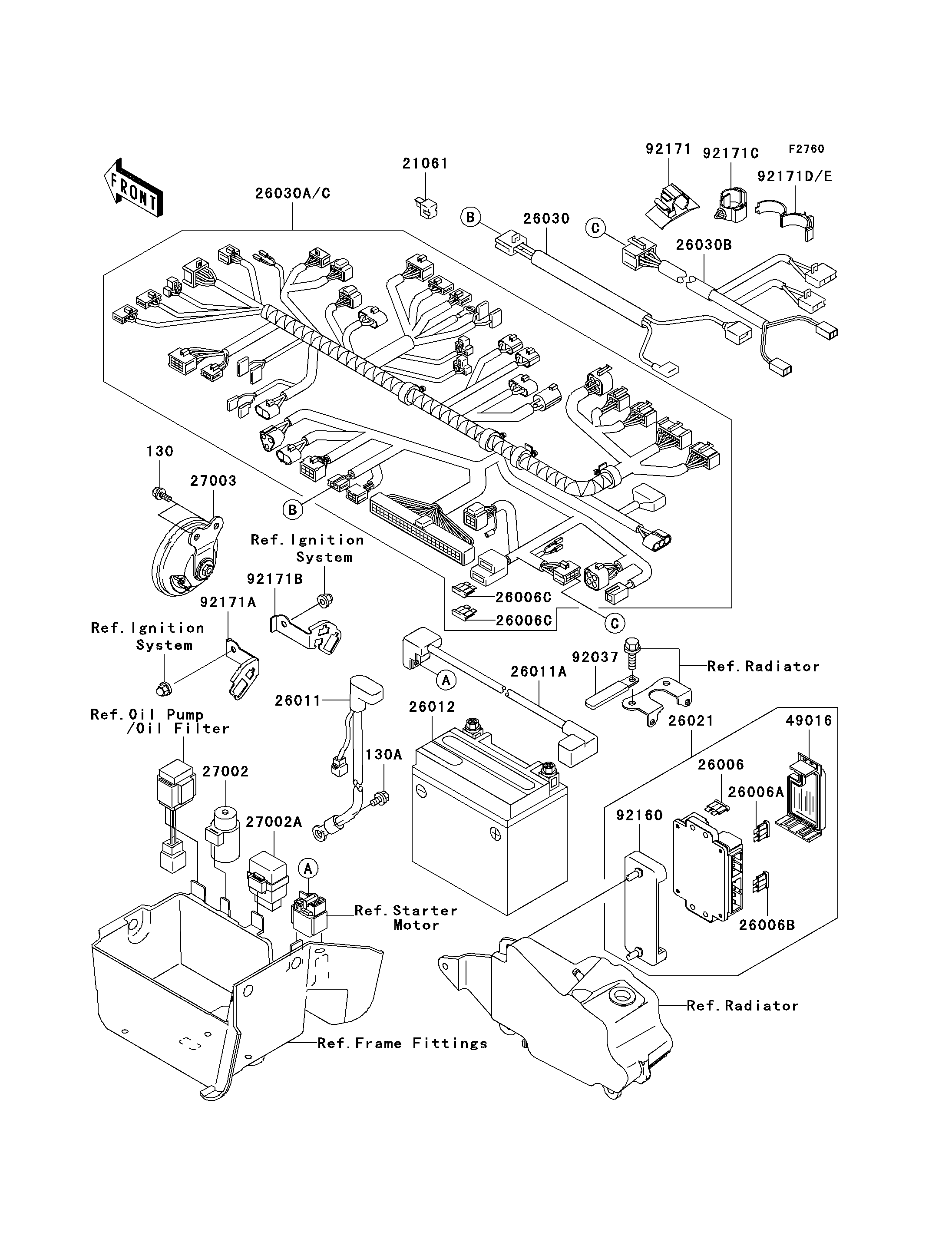

2003 Vulcan 1500 Mean Streak - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
21061
26006
26006A
26006B
26006C
26006C
26011
26011A
26012
26021
26030
26030B
26030C
27002
27002A
27003
49016
92037
92160
92171
92171A
92171B
92171C
92171D
92171E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED,6X10 130A 130V0610 1
RECTIFIER 21061 21061-1003 2
FUSE,30A-G 26006 26006-1006 1
FUSE,10A-R 26006A 26006-1007 7
FUSE,15A-B 26006B 26006-1061 1
FUSE,15A-B 26006C 26006-1069 2
WIRE-LEAD,BATTERY(-) 26011 26011-1750 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1764 1
BATTERY,MF,FTZ16-BS,12V 18AH 26012 26012-1371 1
JUNCTION BOX 26021 26021-0002 1
HARNESS,SUB 26030 26030-1450 1
HARNESS,RR 26030B 26030-1877 1
HARNESS,MAIN 26030C 26030-1950 1
RELAY-ASSY 27002 27002-1051 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1113 1
HORN 27003 27003-1431 1
COVER-SEAL,FUSE 49016 49016-0005 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 1
DAMPER,JUNCTION BOX 92160 92160-1650 1
CLAMP,HARNESS 92171 92171-1269 1
CLAMP,IGNITION COIL,LH 92171A 92171-1369 1
CLAMP,IGNITION COIL,RH 92171B 92171-1370 1
CLAMP,C CRIP,DIA=13 92171C 92171-1415 1
CLAMP,DIA=10 92171D 92171-1423 4
CLAMP,DIA=15 92171E 92171-1424 8
