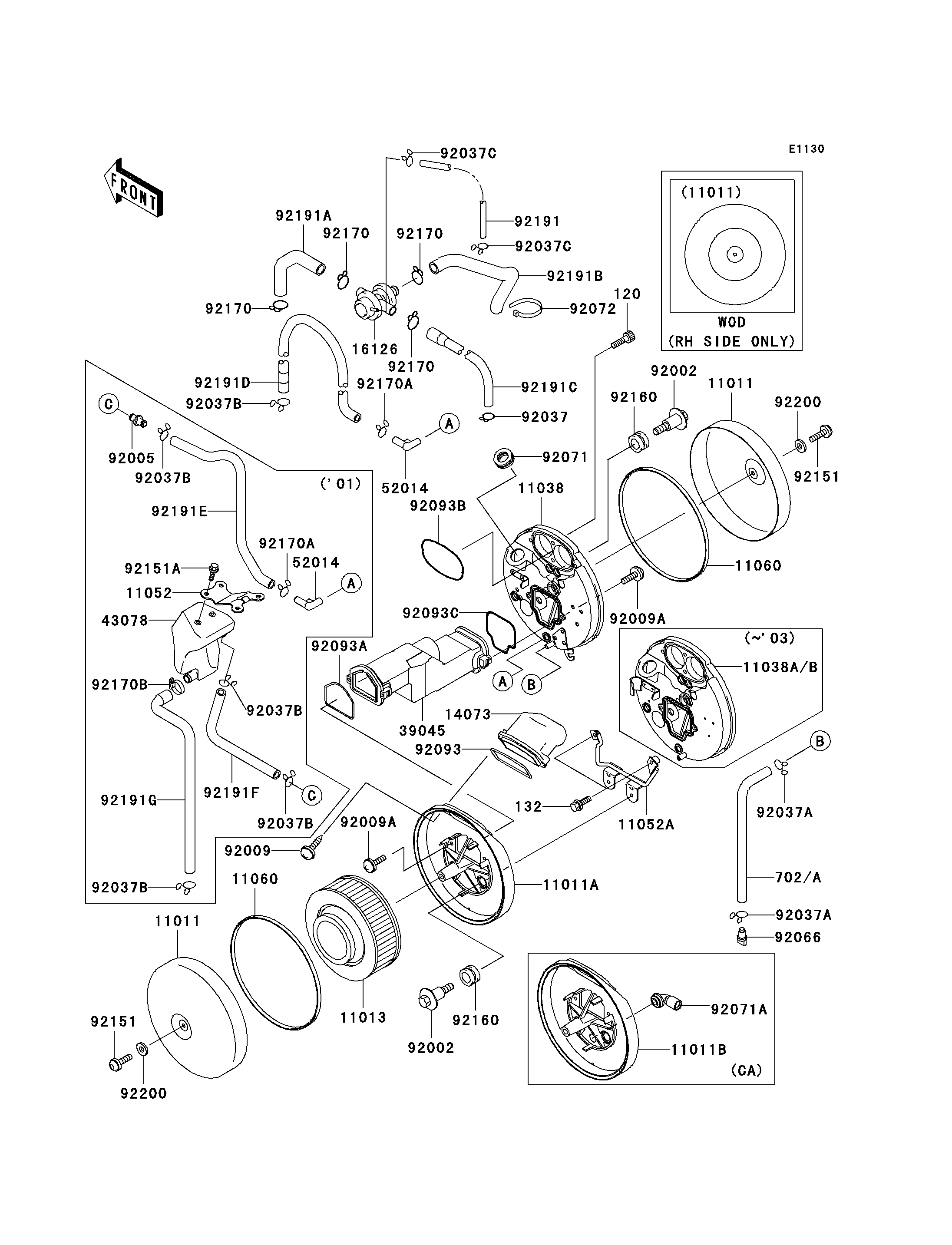

2001 Vulcan 1500 Drifter - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11011
11011
11011
11013
11013
11038B
11038B
11052
11052
11052A
11052A
11060
11060
11060
11060
14073
14073
16126
16126
39045
39045
43078
43078
52014
52014
52014
52014
92002
92002
92002
92002
92005
92005
92009
92009
92009A
92009A
92009A
92009A
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037C
92037C
92037C
92037C
92066
92066
92071
92071
92072
92072
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92151
92151
92151
92151
92151A
92151A
92160
92160
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
120
120
132
132
702A
702A
92170B
92170B
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191E
92191E
92191F
92191F
92191G
92191G
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,OUTSIDE 11011 11011-1576 2
ELEMENT-AIR FILTER 11013 11013-1248 1
CASE-ASSY-AIR FILTER,RH 11038B 11038-1128 1
BRACKET 11052 11052-1085 1
BRACKET 11052A 11052-1166 1
GASKET,AIR FILTER CASE 11060 11060-1968 2
DUCT,AIR FILTER 14073 14073-1739 1
VALVE,AIR SWITCH 16126 16126-1384 1
DUCT-ASSY,CENTER 39045 39045-0003 1
RESERVOIR 43078 43078-1174 1
ELBOW 52014 52014-1083 1
BOLT,M6X14X13.5 92002 92002-1595 3
FITTING 92005 92005-1379 1
SCREW,TAPPING,5X16 92009 92009-1264 2
SCREW,5X20 92009A 92009-1905 4
CLAMP 92037 92037-1468 1
CLAMP,TUBE 92037A 92037-147 2
CLAMP 92037B 92037-1593 4
CLAMP 92037C 92037-1712 2
PLUG,DRAIN 92066 92066-1211 1
GROMMET,AIR FILTER 92071 92071-1028 1
BAND,L=202 92072 92072-1195 1
SEAL,AIR FILTER CASE 92093 92093-1408 1
SEAL,DUCT,LH 92093A 92093-1459 1
SEAL 92093B 92093-1485 1
SEAL,DUCT,RH 92093C 92093-1491 1
BOLT,8X14 92151 92151-1438 2
BOLT,6X10 92151A 92151-1884 2
DAMPER 92160 92160-1594 3
CLAMP,TUBE 92170 92170-1445 4
CLAMP 92170A 92170-1695 1
BOLT-SOCKET 120 120S0616 4
BOLT-FLANGED-SMALL 132 132J0625 2
TUBE-RUBBER,7X10X260 702A 702A07260 1
CLAMP 92170B 92170-3729 1
TUBE,THROTTLE-VALVE 92191 92191-1312 1
TUBE,HEAD,FR-VALVE 92191A 92191-1359 1
TUBE,VALVE-CLEANER 92191B 92191-1360 1
TUBE,HEAD,RR-VALVE 92191C 92191-1369 1
TUBE 92191E 92191-1546 1
TUBE 92191F 92191-1561 1
TUBE 92191G 92191-1592 1
WASHER,8.5X20X1.6 92200 92200-1463 2
CASE-AIR FILTER,LH 11011A 11011-1597 1 CNUS
CASE-AIR FILTER,LH 11011B 11011-1601 1 CA
GROMMET,AIR FILTER 92071A 92071-1114 1 CA
