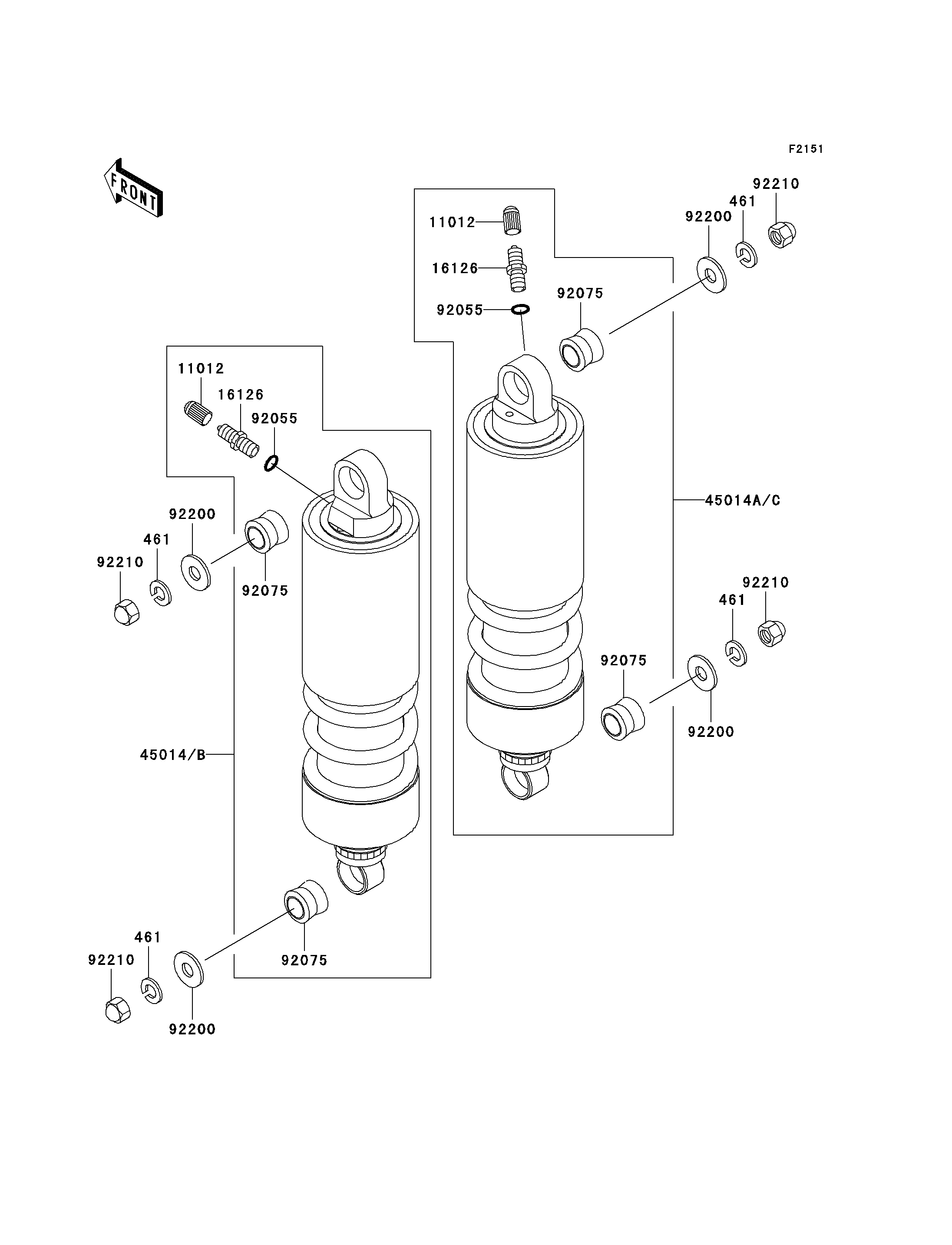

2003 Vulcan 1500 Drifter - Suspension/Shock Absorber
461
461
461
461
11012
11012
16126
16126
45014B
45014C
92055
92055
92075
92075
92075
92075
92200
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-SPRING,10MM | 461 | 461S1000 | 4 | ||
| CAP | 11012 | 11012-1283 | 2 | ||
| VALVE,AIR | 16126 | 16126-1105 | 2 | ||
| SHOCKABSORBER,LH | 45014B | 45014-1793 | 1 | ||
| SHOCKABSORBER,RH | 45014C | 45014-1794 | 1 | ||
| RING-O | 92055 | 92055-1130 | 2 | ||
| DAMPER,SHOCKABSORBER | 92075 | 92075-1387 | 4 | ||
| WASHER,10.5X26X2.5 | 92200 | 92200-1565 | 4 | ||
| NUT,CAP,10MM | 92210 | 92210-1288 | 4 |
| WASHER-SPRING,10MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE,AIR | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,LH | |
| REF # | 45014B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER,RH | |
| REF # | 45014C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCKABSORBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
