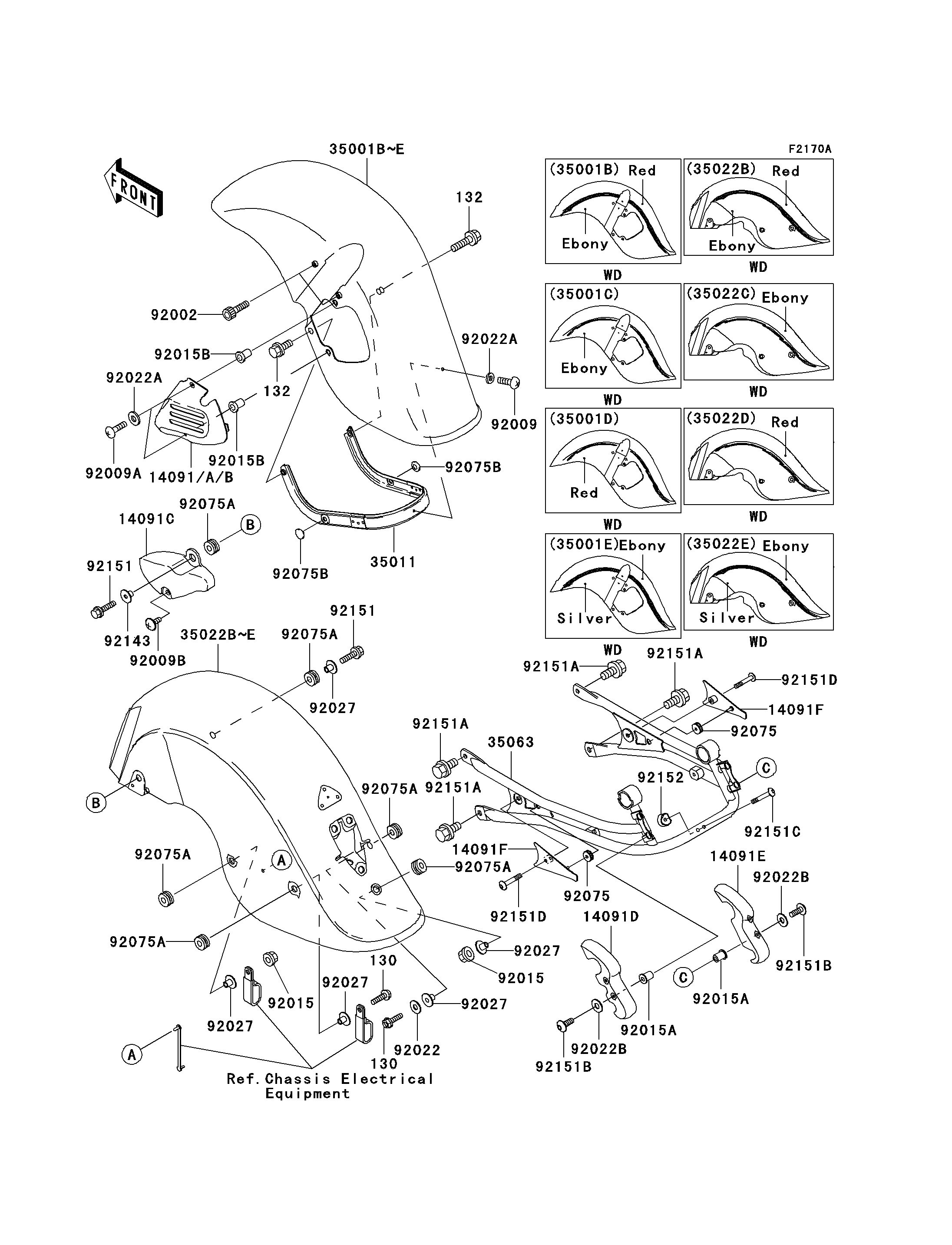

2003 Vulcan 1500 Drifter - Fenders(R2-R5)

DOWNLOAD PDF
SELECT A NEW PART
14091A
14091A
14091C
14091C
14091D
14091D
14091E
14091E
14091F
14091F
14091F
14091F
35001D
35001D
35011
35011
35022D
35022D
35063
35063
92002
92002
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022B
92022B
92027
92027
92027
92027
92027
92027
92027
92027
92027
92027
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92143
92143
92151
92151
92151
92151
92151A
92151A
92151A
92151A
92151A
92151A
92151A
92151A
92151B
92151B
92151B
92151B
92151C
92151C
130
130
130
130
132
132
132
132
92151D
92151D
92151D
92151D
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FRONT CALIPER,M.R.RED 14091A 14091-1059-468 1
COVER,COUPLER 14091C 14091-1071 1
COVER,RR FENDER STAY,RR,LH 14091D 14091-1289 1
COVER,RR FENDER STAY,RR,RH 14091E 14091-1291 1
COVER,RR FENDER STAY(L/R) 14091F 14091-1293 2
FENDER-ASSY-FRONT,M.R.RED 35001D 35001-5058-468 1
STAY,FRONT FENDER 35011 35011-1962 1
FENDER-COMP-REAR,M.R.RED 35022D 35022-5113-468 1
STAY,RR FENDER 35063 35063-1147 1
BOLT,SOCKET,8X30 92002 92002-1179 4
SCREW,5X12 92009 92009-1652 1
SCREW,5X16,BLACK 92009A 92009-1654 2
SCREW,6X12 92009B 92009-1877 1
NUT,6MM 92015 92015-1386 3
NUT 92015A 92015-1700 4
NUT,WELL,5MM 92015B 92015-1757 2
WASHER,6.5X16X1.0 92022 92022-1093 1
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 3
WASHER,6.5X16X1.0 92022B 92022-1654 4
COLLAR,L=13.1,BLACK 92027 92027-1450 6
DAMPER 92075 92075-1629 2
DAMPER 92075A 92075-1690 7
DAMPER,RUBBER 92075B 92075-261 2
COLLAR 92143 92143-1960 1
BOLT,FLANGED,6X25 92151 92151-1488 2
BOLT,FLANGED,10X20 92151A 92151-1511 4
BOLT,SOCKET,6X20 92151B 92151-1750 4
BOLT,SOCKET,6X50 92151C 92151-1902 1
BOLT-FLANGED,6X22,BLACK 130 130J0622 2
BOLT-FLANGED-SMALL 132 132E0820 2
BOLT,SOCKET,6X40 92151D 92151-1921 2
COLLAR 92152 92152-1283 1
