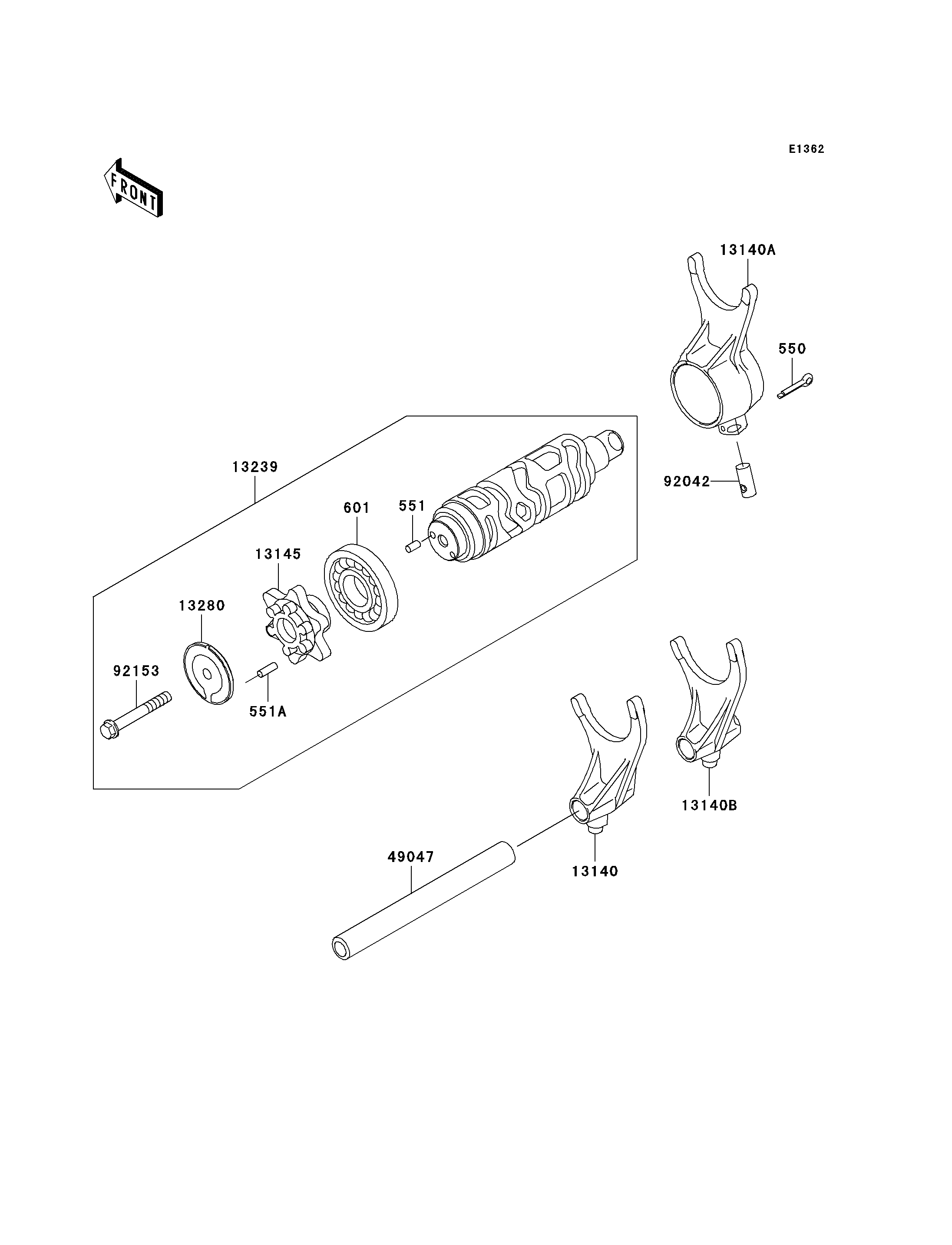

2006 Vulcan 1500 Classic - Gear Change Drum/Shift Fork(s)

550
551
551A
601
13140
13140A
13140B
13145
13239
13280
49047
92042
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,3.0X20 550 550D3020 1
PIN-DOWEL,4X8 551 551A0408 1
PIN-DOWEL 551A 551A0412 1
BEARING-BALL 601 601A6005 1
FORK-SHIFT,OUTPUT TOP 13140 13140-1270 1
FORK-SHIFT,INPUT 3RD 13140A 13140-1292 1
FORK-SHIFT,OUTPUT 4TH 13140B 13140-1293 1
CAM-CHANGE DRUM 13145 13145-1089 1
DRUM-ASSY-CHANGE 13239 13239-1214 1
HOLDER 13280 13280-1300 1
ROD-SHIFT 49047 49047-1095 1
PIN,DOWEL,8X18 92042 92042-021 1
BOLT,6X45 92153 92153-1281 1
