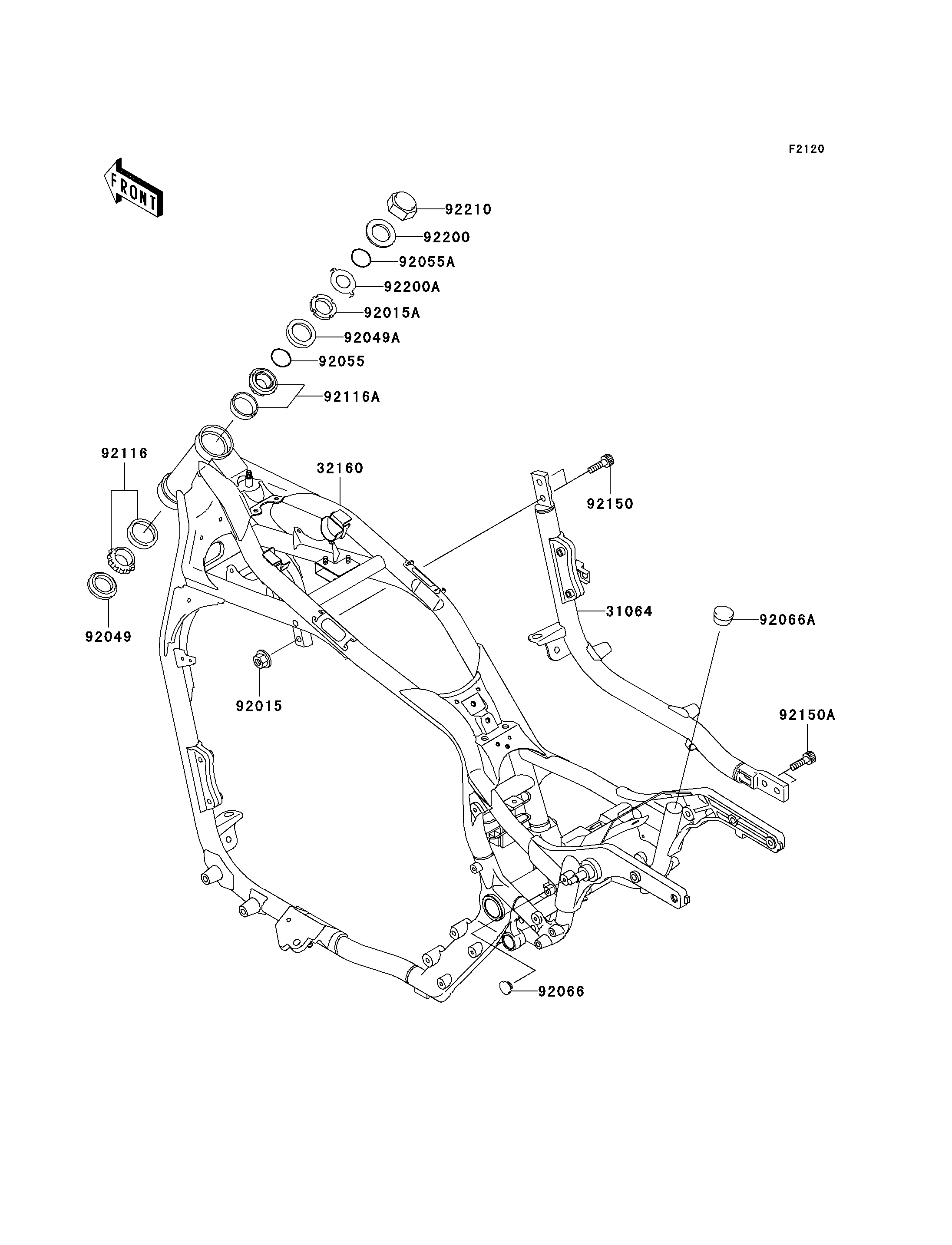

2006 Vulcan 1500 Classic - Frame

DOWNLOAD PDF
SELECT A NEW PART
31064
32160
92015
92015A
92049
92049A
92055
92055A
92066
92066A
92116
92116A
92150
92150A
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-COMP,DOWNTUBU,RH 31064 31064-1237 1
FRAME-COMP 32160 32160-1679 1
NUT,FLANGED,10MM 92015 92015-1727 2
NUT,STEERING STEM,35MM 92015A 92015-1848 1
SEAL-OIL,XMHE 43 55 4J 92049 92049-1383 1
SEAL-OIL,MX043N2 92049A 92049-1483 1
RING-O,34.5X2.0 92055 92055-1452 1
RING-O,ID=24.5 92055A 92055-1459 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 2
PLUG 92066A 92066-1444 2
BEARING-ROLLER,32907JR-2 92116 92116-1072 1
BEARING-ROLLER,32907JR-3 92116A 92116-1074 1
BOLT,SOCKET,10X30 92150 92150-1690 2
BOLT,SOCKET,10X23 92150A 92150-1942 2
WASHER,25.5X42X2.3 92200 92200-0105 1
WASHER,CLAW,25.5X40X2.3 92200A 92200-1083 1
NUT,CAP,25MM 92210 92210-1166 1
