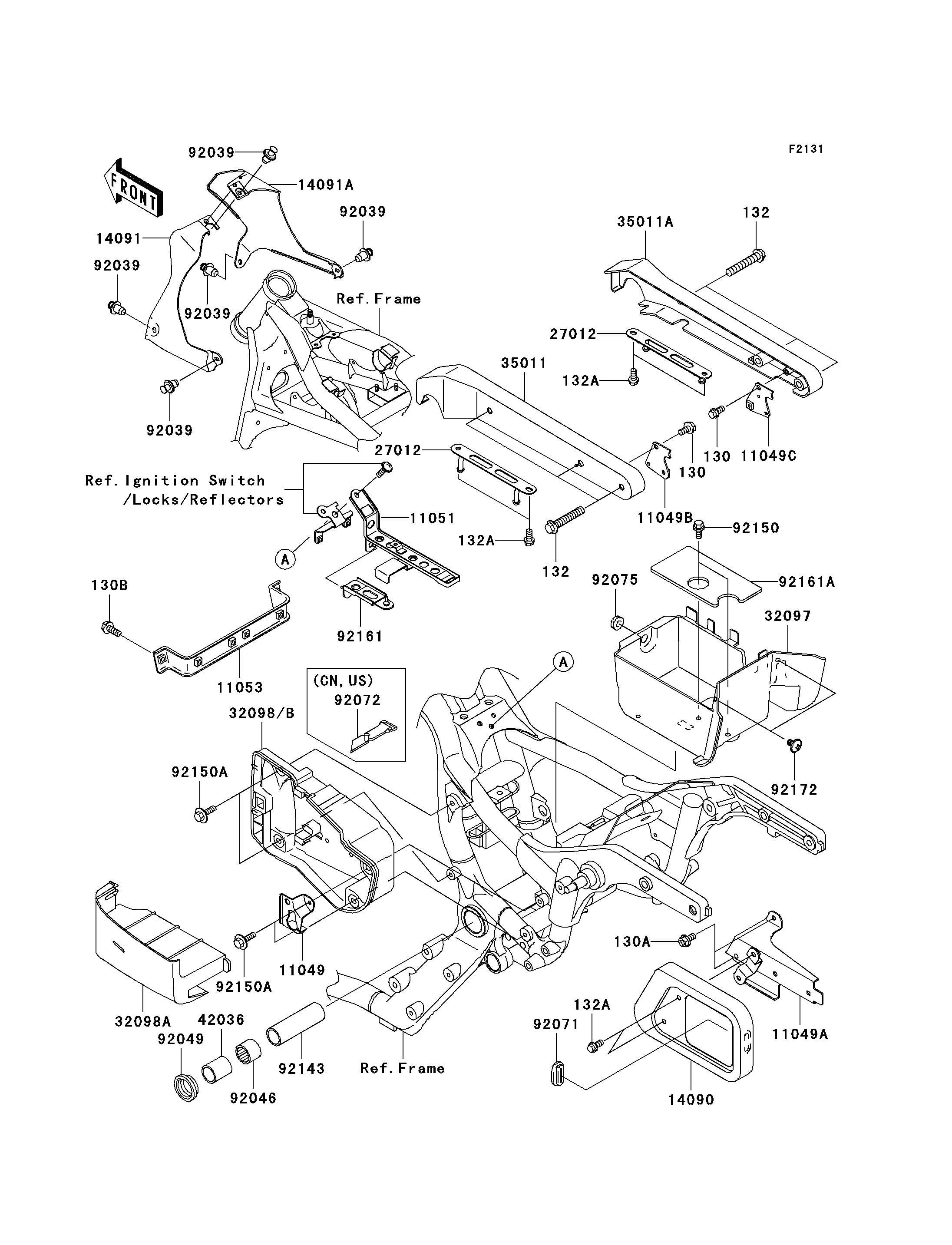

2006 Vulcan 1500 Classic - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
132
132
132A
132A
132A
11049
11049A
11049B
11049C
11051
11053
14090
14091
14091A
27012
27012
32097
32098A
35011
35011A
42036
92039
92039
92039
92039
92039
92046
92049
92071
92075
92143
92150
92150A
92150A
92161
92161A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130H0612 2
BOLT-FLANGED,6X12 130A 130J0612 2
BOLT-FLANGED,6X16 130B 130J0616 2
BOLT-FLANGED-SMALL,8X45 132 132E0845 6
BOLT-FLANGED-SMALL,6X12 132A 132J0612 6
BRACKET,LOCK 11049 11049-1600 1
BRACKET,REGULATOR 11049A 11049-1607 1
BRACKET,HELMET LOCK,LH 11049B 11049-1624 1
BRACKET,HELMET LOCK,RH 11049C 11049-1625 1
BRACKET,BATTERY BAND 11051 11051-1798 1
BRACKET,REGULATOR 11053 11053-0434 1
COVER,REGULATOR 14090 14090-1940 1
COVER,HEAD PIPE,LH 14091 14091-1285 1
COVER,HEAD PIPE,RH 14091A 14091-1286 1
HOOK,BUNGEE CORD 27012 27012-1524 2
CASE-BATTERY 32097 32097-1175 1
CASE-TOOL,COVER 32098A 32098-1126 1
STAY,REAR FENDER,LH 35011 35011-1868 1
STAY,REAR FENDER,RH 35011A 35011-1869 1
SLEEVE,L=45 42036 42036-1330 2
RIVET 92039 92039-1227 5
BEARING-NEEDLE,BM2824 92046 92046-1202 2
SEAL-OIL 92049 92049-1181 2
GROMMET 92071 92071-0013 1
DAMPER 92075 92075-1067 1
COLLAR,20.2X27X90 92143 92143-1878 1
BOLT,6X14 92150 92150-1133 2
BOLT,6X16 92150A 92150-1198 4
DAMPER,BATTERY BAND 92161 92161-1096 1
DAMPER,BATTERY 92161A 92161-1097 1
SCREW,6X10 92172 92172-0005 2
CASE-TOOL 32098 32098-1125 1 CNUS
CASE-TOOL 32098B 32098-1127 1 CA
BAND,L=470 92072 92072-1331 1 CNUS
