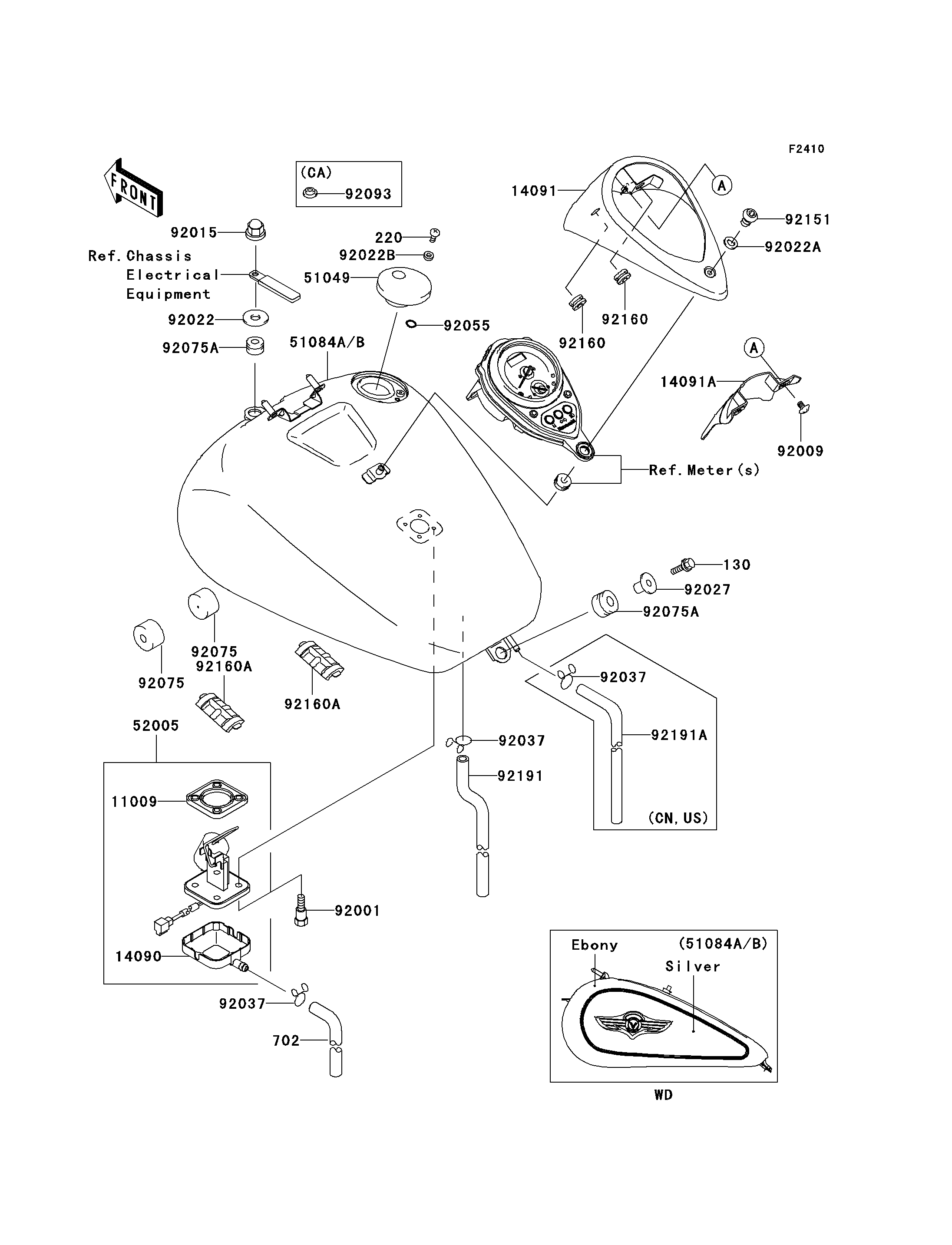

2006 Vulcan 1500 Classic - Fuel Tank(4/4)
11009
11009
11009
11009
14090
14090
14090
14090
14091
14091
14091
14091
14091A
14091A
14091A
14091A
51049
51049
51049
51049
130
130
130
130
220
220
220
220
52005
52005
52005
52005
92001
92001
92001
92001
92009
92009
92009
92009
92015
92015
92015
92015
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022B
92022B
92027
92027
92027
92027
92055
92055
92055
92055
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92151
92151
92151
92151
92160
92160
92160
92160
92160
92160
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92191
92191
92191
92191
702
702
702
702
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL GAUGE | 11009 | 11009-1656 | 1 | ||
| COVER,FUEL GAUGE | 14090 | 14090-1624 | 1 | ||
| COVER,METER | 14091 | 14091-1208 | 1 | ||
| COVER,METER,FR | 14091A | 14091-1301 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-0003 | 1 | ||
| BOLT-FLANGED,8X30 | 130 | 130H0830 | 1 | ||
| SCREW-PAN-CROS,5X10 | 220 | 220D0510 | 2 | ||
| GAUGE,FUEL | 52005 | 52005-1138 | 1 | ||
| BOLT,FUEL GAUGE | 92001 | 92001-1705 | 4 | ||
| SCREW,6X12 | 92009 | 92009-1877 | 2 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 1 | ||
| WASHER,8X26X2.3 | 92022 | 92022-1345 | 1 | ||
| WASHER,6.2X11X1.5 | 92022A | 92022-183 | 1 | ||
| WASHER,5.1X10X1.0 | 92022B | 92022-1977 | 2 | ||
| COLLAR,L=19.3 | 92027 | 92027-1780 | 1 | ||
| RING-O,ID=9 | 92055 | 92055-1552 | 2 | ||
| DAMPER,FUEL TANK | 92075 | 92075-125 | 2 | ||
| DAMPER | 92075A | 92075-1736 | 2 | ||
| BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 1 | ||
| DAMPER | 92160 | 92160-1162 | 2 | ||
| DAMPER,FUEL TANK | 92160A | 92160-1907 | 2 | ||
| TUBE,DRAIN | 92191 | 92191-1272 | 1 | ||
| TUBE-RUBBER,7X10X860 | 702 | 702A07860 | 1 | ||
| TANK-COMP-FUEL,SILVER/EBONY | 51084A | 51084-5113-686 | 1 | CNUS | |
| TANK-COMP-FUEL,SILVER/EBONY | 51084B | 51084-5152-686 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 2 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 3 | CNUS | |
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
| TUBE,5X10X650 | 92191A | 92191-1529 | 1 | CNUS |
