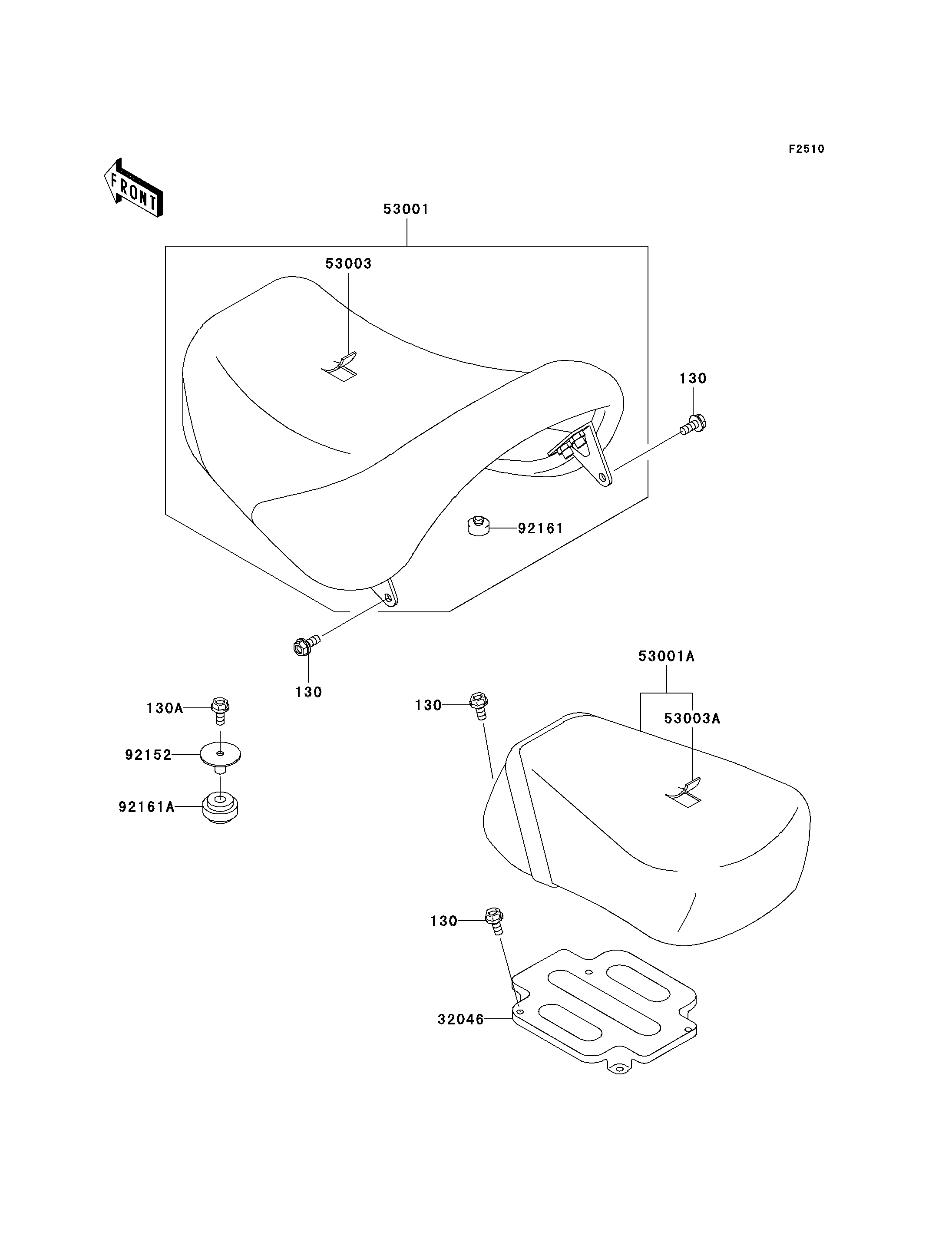

130
130
130
130
130A
32046
53001
53001A
53003
53003A
92152
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130J0614 7
BOLT-FLANGED,8X35 130A 130J0835 1
BRACKET-SEAT,RR 32046 32046-1458 1
SEAT-ASSY,FR,BLACK 53001 53001-1925-MA 1
SEAT-ASSY,RR,W/BAND,BLACK 53001A 53001-1926-MA 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1451-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-1452-MA 1
COLLAR 92152 92152-1100 1
DAMPER,SEAT 92161 92161-1065 4
DAMPER 92161A 92161-1157 1
