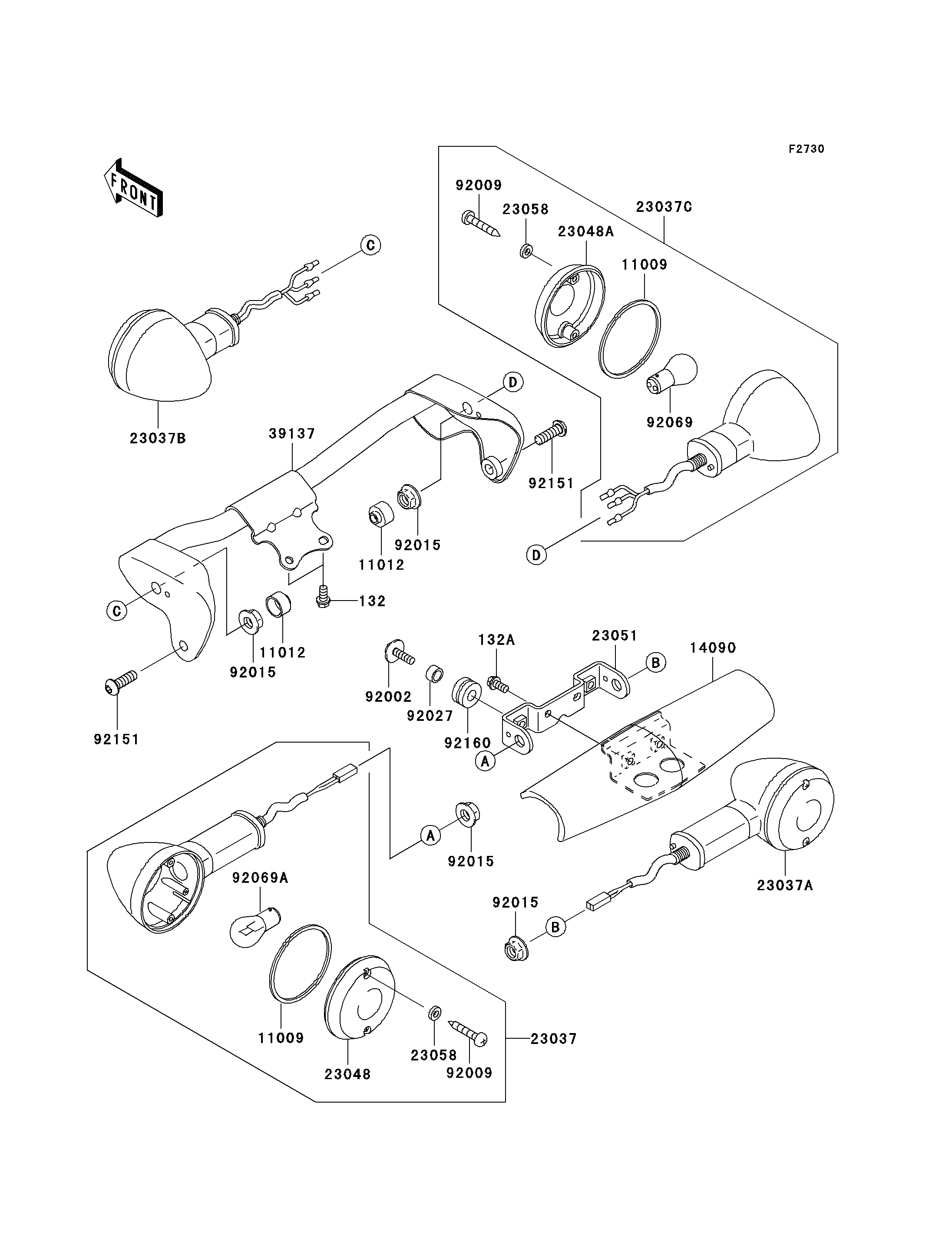

2006 Vulcan 1500 Classic - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
132
132A
11009
11009
11012
11012
14090
23037
23037A
23037B
23037C
23048
23048A
23051
23058
23058
39137
92002
92009
92009
92015
92015
92015
92015
92027
92069
92069A
92151
92151
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132E0612 2
BOLT-FLANGED-SMALL,6X12 132A 132J0612 2
GASKET,SIGNAL LAMP 11009 11009-1413 4
CAP 11012 11012-1367 2
COVER 14090 14090-1691 1
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-1388 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-1389 1
LAMP-ASSY-SIGNAL,FR,LH 23037B 23037-1426 1
LAMP-ASSY-SIGNAL,FR,RH 23037C 23037-1427 1
LENS-SIGNAL LAMP 23048 23048-1065 2
LENS-SIGNAL LAMP 23048A 23048-1066 2
BRACKET-SIGNAL LAMP,RR 23051 23051-1230 1
WASHER,PLAIN,4MM 23058 23058-002 8
STAY-COMP,SIGNAL LAMP,FR 39137 39137-1077 1
BOLT,UPSET-WP,6X22 92002 92002-1262 2
SCREW,TAPPING,4X25 92009 92009-1637 8
NUT,10MM 92015 92015-1356 4
COLLAR,6.8X10X12 92027 92027-162 2
BULB,12V 21/5W 92069 92069-063 2
BULB,12V 21W 92069A 2 (LOCAL PROCUREMENT ITEM)
BOLT,SOCKET,8X25 92151 92151-1327 2
DAMPER 92160 92160-1162 2
