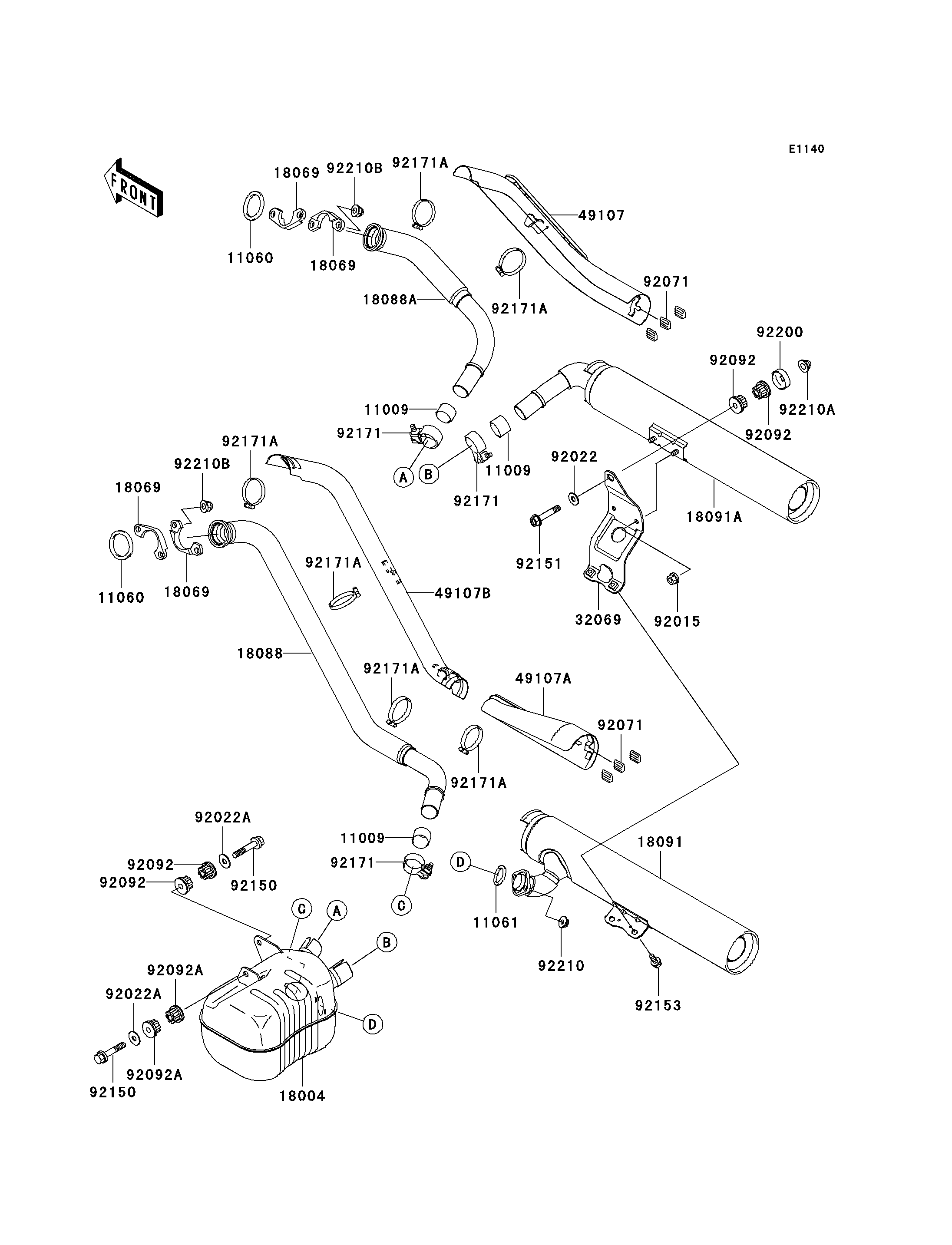

2004 Vulcan 1600 Mean Streak - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11060
11060
11061
18004
18069
18069
18069
18069
18088
18088A
18091
18091A
32069
49107
49107A
49107B
92015
92022
92022A
92022A
92071
92071
92092
92092
92092
92092
92092A
92092A
92150
92150
92151
92153
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92200
92210
92210A
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST MANIFOLD 11009 11009-1668 3
GASKET,EXHAUST PIPE 11060 11060-1119 2
GASKET,EXHAUST PIPE 11061 11061-1069 1
CHAMBER-PREMUFFLER 18004 18004-0002 1
HOLDER-EXHAUST PIPE 18069 18069-1161 4
PIPE-EXHAUST,FR 18088 18088-1130 1
PIPE-EXHAUST,RR 18088A 18088-1131 1
BODY-COMP-MUFFLER,LWR 18091 18091-0070 1
BODY-COMP-MUFFLER 18091A 18091-0071 1
BRACKET-MUFFLER 32069 32069-1631 1
COVER-EXHAUST PIPE,RR 49107 49107-0023 1
COVER-EXHAUST PIPE 49107A 49107-1202 1
COVER-EXHAUST PIPE,FR 49107B 49107-1216 1
NUT,8MM 92015 92015-1936 2
WASHER,10.5X26X2.3 92022 92022-044 1
WASHER,10.5X30X2.3,BLACK 92022A 92022-1302 2
GROMMET 92071 92071-1270 6
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
BUSHING-RUBBER 92092A 92092-1081 2
BOLT,10X55 92150 92150-1749 2
BOLT,FLANGED,10X57 92151 92151-1332 1
BOLT,FLANGED,8X14 92153 92153-0387 2
CLAMP 92171 92171-0084 3
CLAMP 92171A 92171-0137 6
WASHER,10.5X36X2 92200 92200-1664 1
NUT,8MM 92210 92210-0076 2
NUT,CAP,10MM 92210A 92210-1121 1
NUT,CAP,8MM 92210B 92210-1132 4
