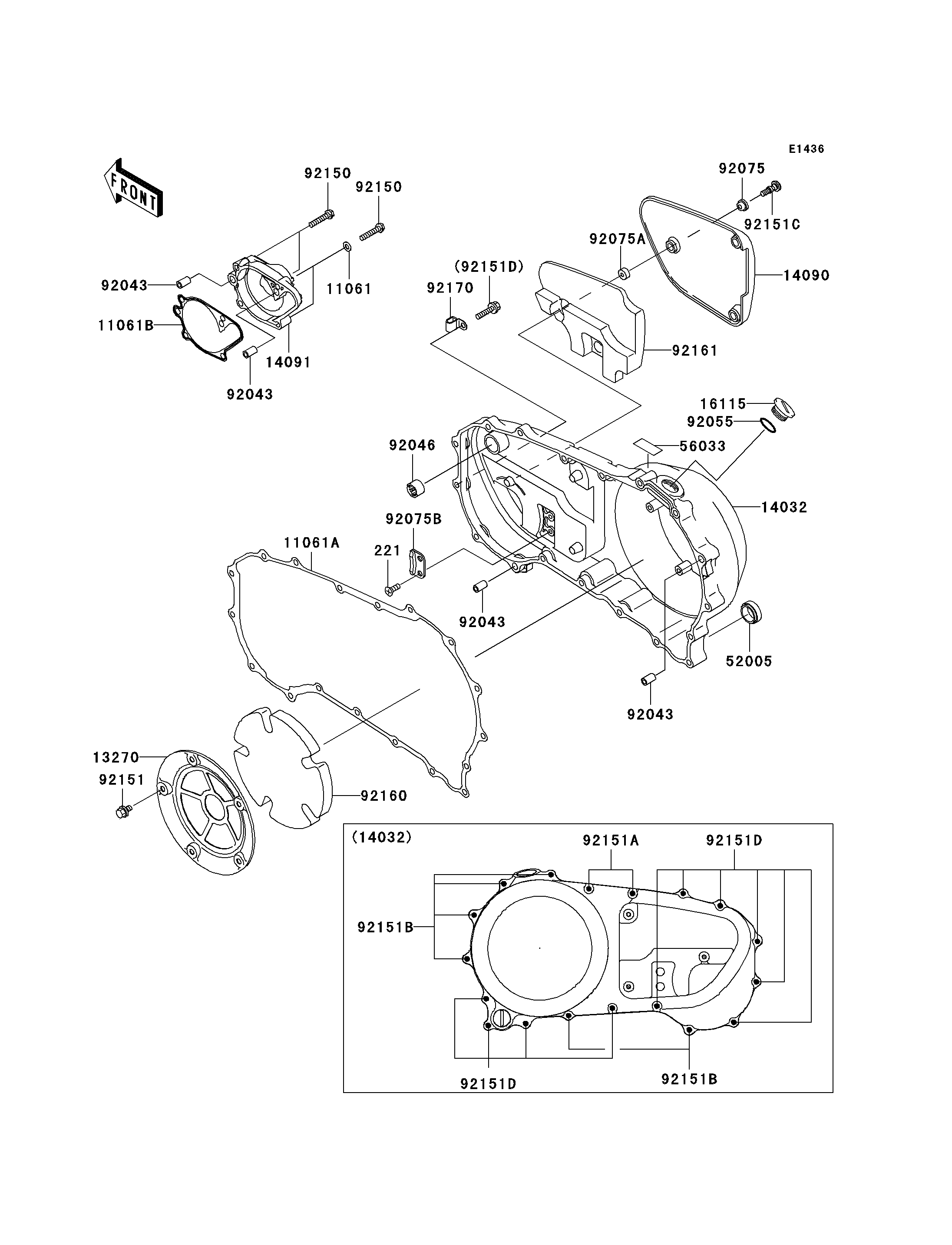

2004 Vulcan 1600 Mean Streak - Right Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
221
11061
11061A
11061B
13270
14032
14090
14091
16115
52005
56033
92043
92043
92043
92043
92046
92055
92075
92075A
92075B
92150
92150
92151
92151A
92151B
92151B
92151C
92151D
92151D
92160
92161
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS,6X12 221 221B0612 2
GASKET 11061 11061-0107 2
GASKET,CLUTCH COVER 11061A 11061-1081 1
GASKET,WATER PUMP COVER 11061B 11061-1172 1
PLATE 13270 13270-1592 1
COVER-CLUTCH 14032 14032-1493 1
COVER,CLUTCH OUTER 14090 14090-1678 1
COVER,WATER PUMP 14091 14091-0124 1
CAP-OIL FILLER 16115 16115-1063 1
GAUGE,OIL LEVEL 52005 52005-1009 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-1156 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-NEEDLE,HK1212 92046 92046-1163 1
RING-O,31.7X2.4 92055 92055-049 1
DAMPER 92075 92075-1855 3
DAMPER 92075A 92075-1856 3
DAMPER 92075B 92075-1905 1
BOLT,6X30 92150 92150-1021 4
BOLT,6X10 92151 92151-1064 5
BOLT,6X30 92151A 92151-1134 2
BOLT,6X35 92151B 92151-1135 6
BOLT,SOCKET,M6X22.5 92151C 92151-1273 3
BOLT,6X25 92151D 92151-1930 10
DAMPER 92160 92160-1716 1
DAMPER 92161 92161-1139 1
CLAMP 92170 92170-1804 1
