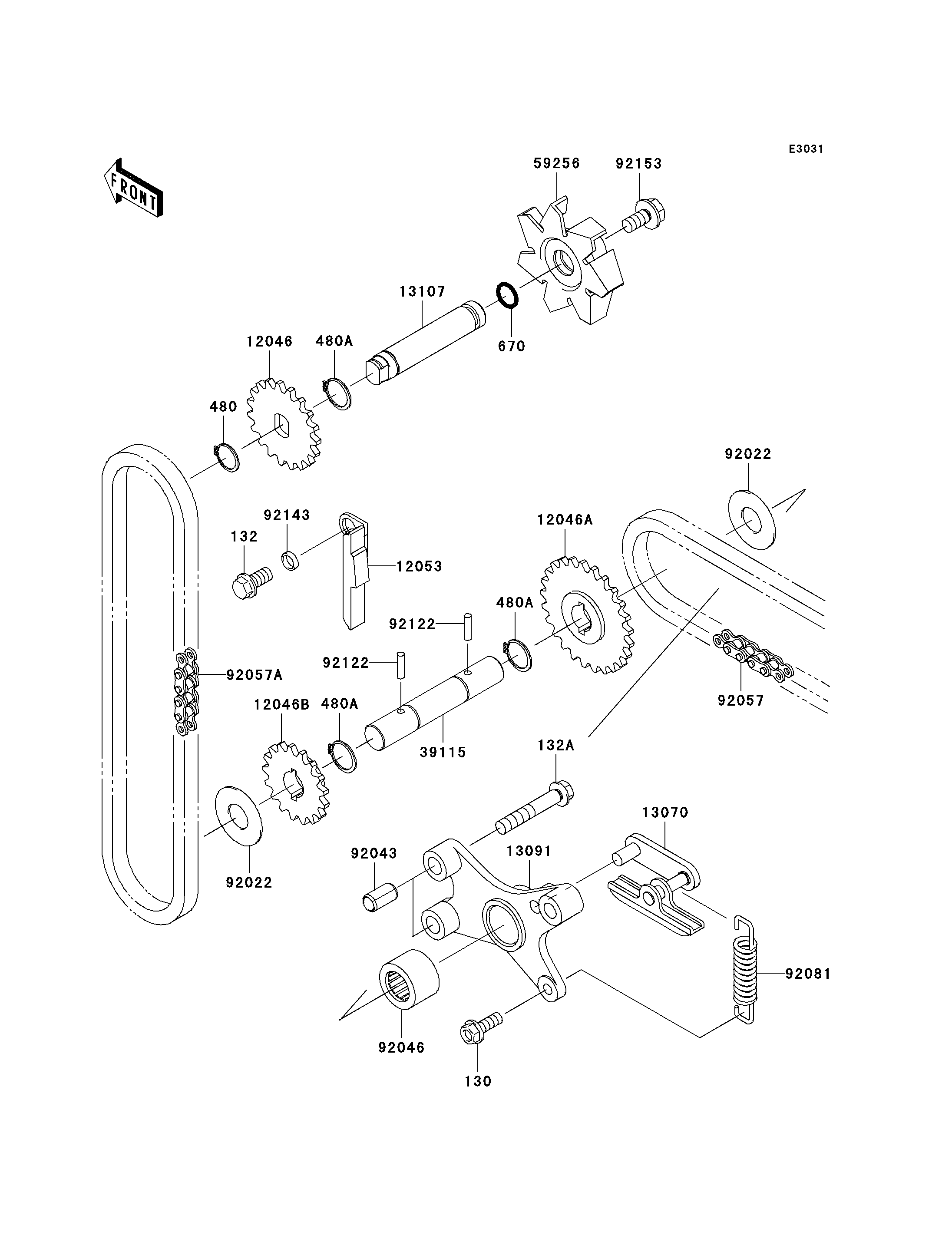

2004 Vulcan 1600 Mean Streak - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
480
480A
480A
480A
670
12046
12046A
12046B
12053
13070
13091
13107
39115
59256
92022
92022
92043
92046
92057
92057A
92081
92122
92122
92143
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0514 1
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0635 3
CIRCLIP-TYPE-C,11MM 480 480J1100 1
CIRCLIP-TYPE-C,12MM 480A 480J1200 3
O RING,9MM 670 670D1509 1
SPROCKET,OIL PUMP,19T 12046 12046-1079 1
SPROCKET,CRANK IDLER,25T 12046A 12046-1096 1
SPROCKET,IDLER,17T 12046B 12046-1097 1
GUIDE-CHAIN 12053 12053-1227 1
GUIDE 13070 13070-1178 1
HOLDER 13091 13091-1471 1
SHAFT,IMPELLER 13107 13107-1196 1
SHAFT-IDLER 39115 39115-1058 1
IMPELLER 59256 59256-1066 1
WASHER,12X27.5X1.0 92022 92022-1852 2
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1212 92046 92046-1163 1
CHAIN,BS25HX46L 92057 92057-1230 1
CHAIN,BS25HX44L 92057A 92057-1231 1
SPRING,IDLER SHAFT 92081 92081-1791 1
ROLLER,3X15.8 92122 92122-1126 2
COLLAR 92143 92143-1123 1
BOLT,6X12 92153 92153-0009 1
