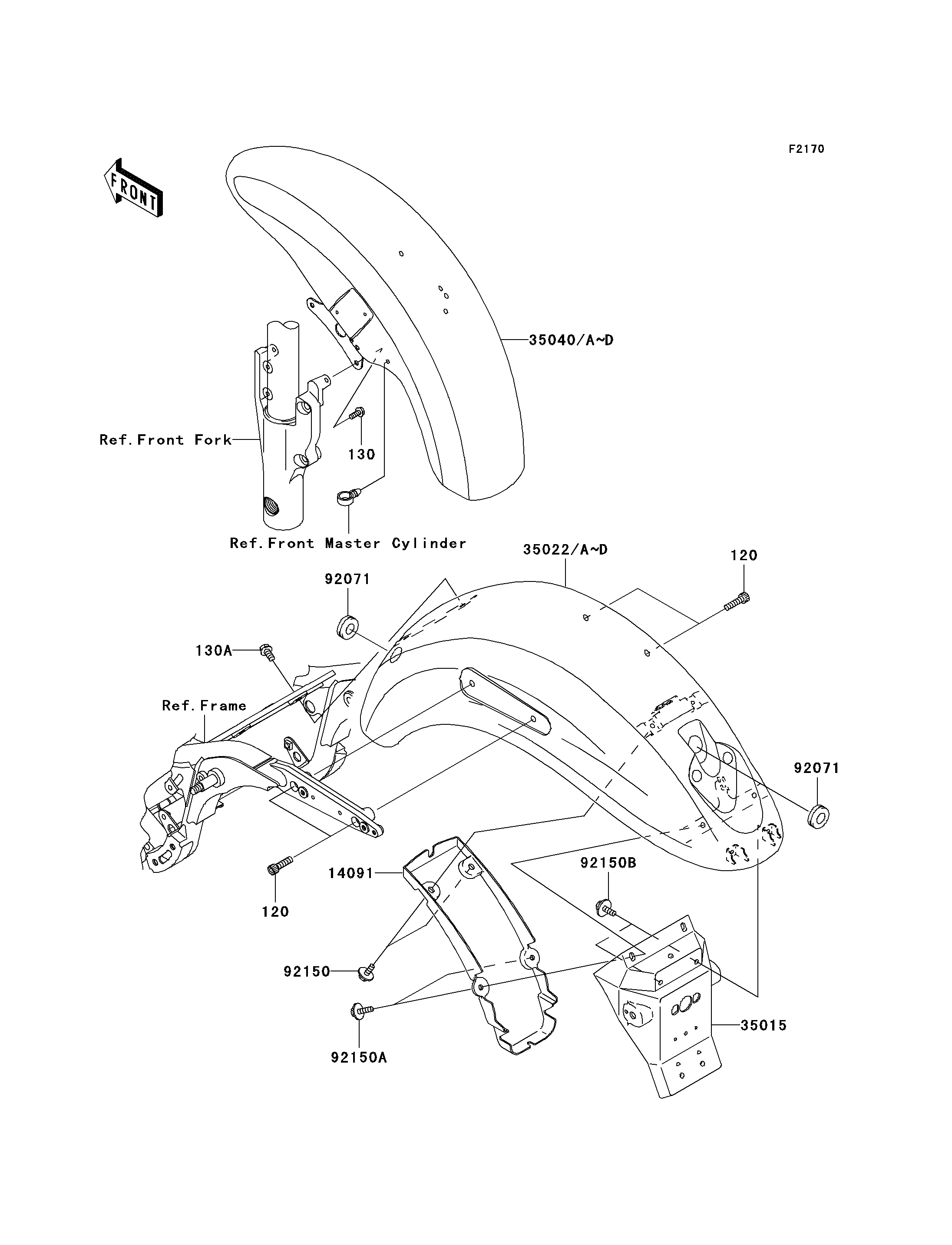

2004 Vulcan 1600 Mean Streak - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130A
14091
35015
35022A
35022B
35022D
35040A
35040B
35040D
92071
92071
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED,6X16,BLACK 130 130J0616 4
BOLT-FLANGED,8X16,BLACK 130A 130J0816 2
COVER,TAIL LAMP 14091 14091-1348 1
FLAP-COMP 35015 35015-0002 1
FENDER-COMP-REAR,C.T.BLUE 35022A 35022-0013-235 1
FENDER-COMP-REAR,M.S.BLACK 35022B 35022-0013-660 1
FENDER-COMP-REAR,C.L.GREEN 35022D 35022-0013-8N 1
FENDER-COMP-FRONT,C.T.BLUE 35040A 35040-1053-235 1
FENDER-COMP-FRONT,M.S.BLACK 35040B 35040-1053-660 1
FENDER-COMP-FRONT,C.L.GREEN 35040D 35040-1053-8N 1
GROMMET 92071 92071-1265 2
BOLT,FLANGED,6X14 92150 92150-1689 2
BOLT,6X20 92150A 92150-1801 2
BOLT,FLANGED,6X16 92150B 92150-1894 2
