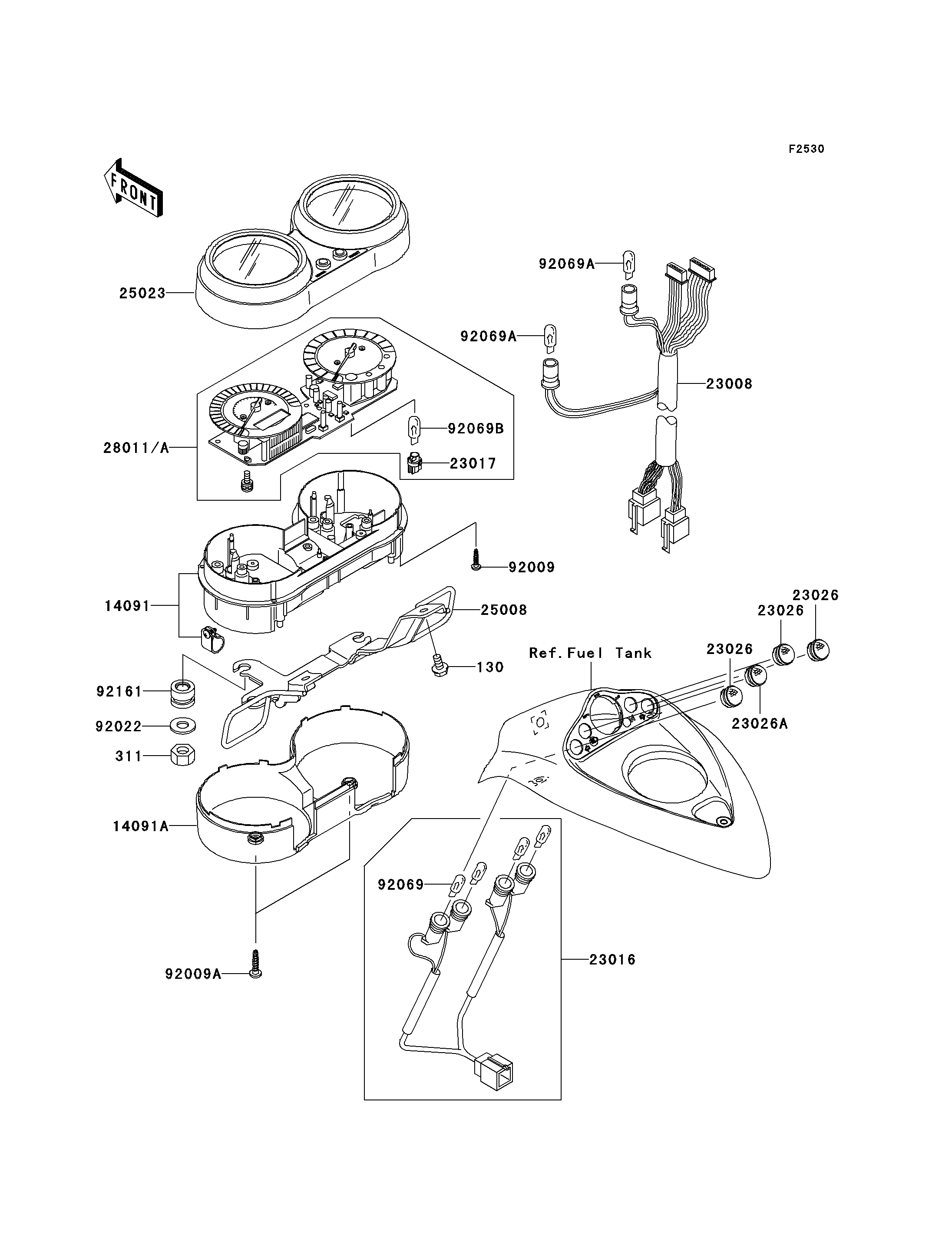

2004 Vulcan 1600 Mean Streak - Meter(s)
130
311
14091
14091A
23008
23016
23017
23026
23026
23026
23026A
25008
25023
92009
92009A
92022
92069
92069A
92069A
92069B
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0612 | 2 | ||
NUT-HEX | 311 | 311B0500 | 3 | ||
COVER,METER HOUSING | 14091 | 14091-1370 | 1 | ||
COVER,METER,LWR | 14091A | 14091-1371 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1655 | 1 | ||
LAMP-ASSY | 23016 | 23016-1192 | 1 | ||
SOCKET | 23017 | 23017-1064 | 1 | ||
LENS,GREEN | 23026 | 23026-1171 | 3 | ||
LENS,BLUE | 23026A | 23026-1172 | 1 | ||
BRACKET-METER | 25008 | 25008-1230 | 1 | ||
COVER-METER CASE,UPP | 25023 | 25023-1261 | 1 | ||
SCREW,TAPPING,3X14 | 92009 | 92009-1592 | 5 | ||
SCREW,TAPPING,4X16 | 92009A | 92009-1601 | 2 | ||
WASHER,5.2X16X1.2 | 92022 | 92022-263 | 3 | ||
BULB,12V 3.4W,T10 | 92069 | 92069-1007 | 4 | ||
BULB,12V 1.7W,T10 | 92069A | 92069-1059 | 2 | ||
BULB,12V 3W,T6.5 | 92069B | 92069-1068 | 1 | ||
DAMPER,METER BRACKET | 92161 | 92161-1247 | 3 | ||
METER,SPEED&TACHO,MPH | 28011 | 28011-1224 | 1 | CAUS | |
METER,SPEED&TACHO,KPH | 28011A | 28011-1225 | 1 | CN |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
COVER,METER HOUSING | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,METER,LWR | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,METER | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY | |
REF # | 23016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET | |
REF # | 23017 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,GREEN | |
REF # | 23026 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
LENS,BLUE | |
REF # | 23026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-METER CASE,UPP | |
REF # | 25023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,3X14 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X16 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,5.2X16X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BULB,12V 3.4W,T10 | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W,T10 | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 3W,T6.5 | |
REF # | 92069B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,METER BRACKET | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
METER,SPEED&TACHO,MPH | |
REF # | 28011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
METER,SPEED&TACHO,KPH | |
REF # | 28011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
