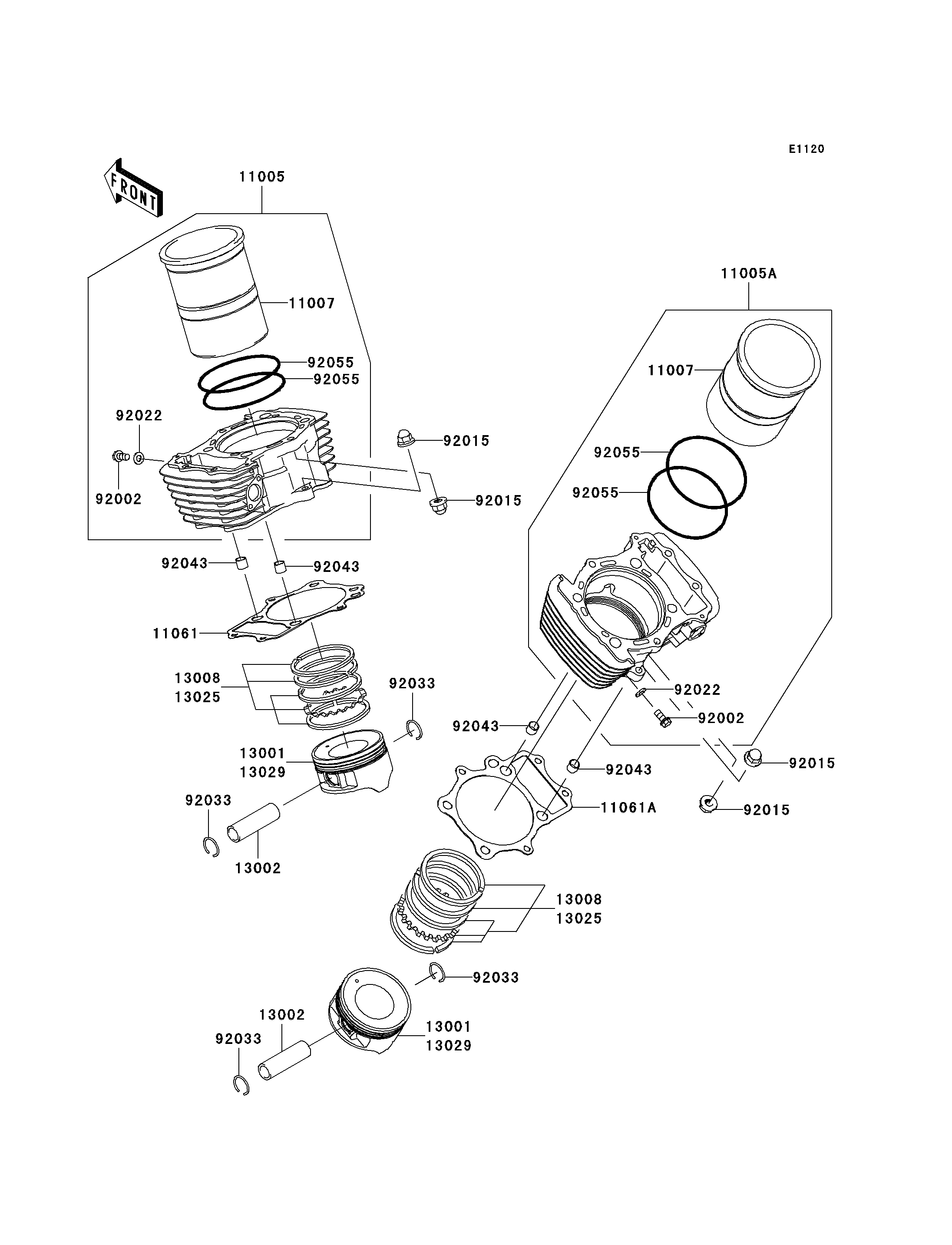

2006 Vulcan 1600 Classic - Cylinder/Piston(s)
11005
11005A
11007
11007
11061
11061A
13001
13001
13002
13002
13008
13008
13025
13025
13029
13029
92002
92002
92015
92015
92015
92015
92022
92022
92033
92033
92033
92033
92043
92043
92043
92043
92055
92055
92055
92055
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER-ENGINE,FR | 11005 | 11005-0019 | 1 | ||
CYLINDER-ENGINE,RR | 11005A | 11005-0020 | 1 | ||
LINER-CYLINDER | 11007 | 11007-1176 | 2 | ||
GASKET,CYLINDER BASE,FR | 11061 | 11061-1083 | 1 | ||
GASKET,CYLINDER BASE,RR | 11061A | 11061-1084 | 1 | ||
PISTON-ENGINE,STD | 13001 | 13001-0054 | 2 | ||
PIN-PISTON | 13002 | 13002-1107 | 2 | ||
RING-SET-PISTON,STD | 13008 | 13008-1218 | 2 | ||
RING-SET-PISTON L,O/S 0.50 | 13025 | 13025-0004 | AR | (OPTION) | |
PISTON-ENGINE L,O/S 0.50 | 13029 | 13029-0014 | AR | (OPTION) | |
BOLT,6X12 | 92002 | 92002-1569 | 2 | ||
NUT,CAP,8MM | 92015 | 92015-1370 | 8 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 2 | ||
RING-SNAP | 92033 | 92033-1226 | 4 | ||
PIN,13X16X14 | 92043 | 92043-1608 | 4 | ||
RING-O,110.5X2.5 | 92055 | 92055-1371 | 4 |
CYLINDER-ENGINE,FR | |
REF # | 11005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ENGINE,RR | |
REF # | 11005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LINER-CYLINDER | |
REF # | 11007 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,CYLINDER BASE,FR | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CYLINDER BASE,RR | |
REF # | 11061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE,STD | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN-PISTON | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SET-PISTON,STD | |
REF # | 13008 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SET-PISTON L,O/S 0.50 | |
REF # | 13025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS | (OPTION) |
PISTON-ENGINE L,O/S 0.50 | |
REF # | 13029 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS | (OPTION) |
BOLT,6X12 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,6.1X12X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,13X16X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,110.5X2.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
