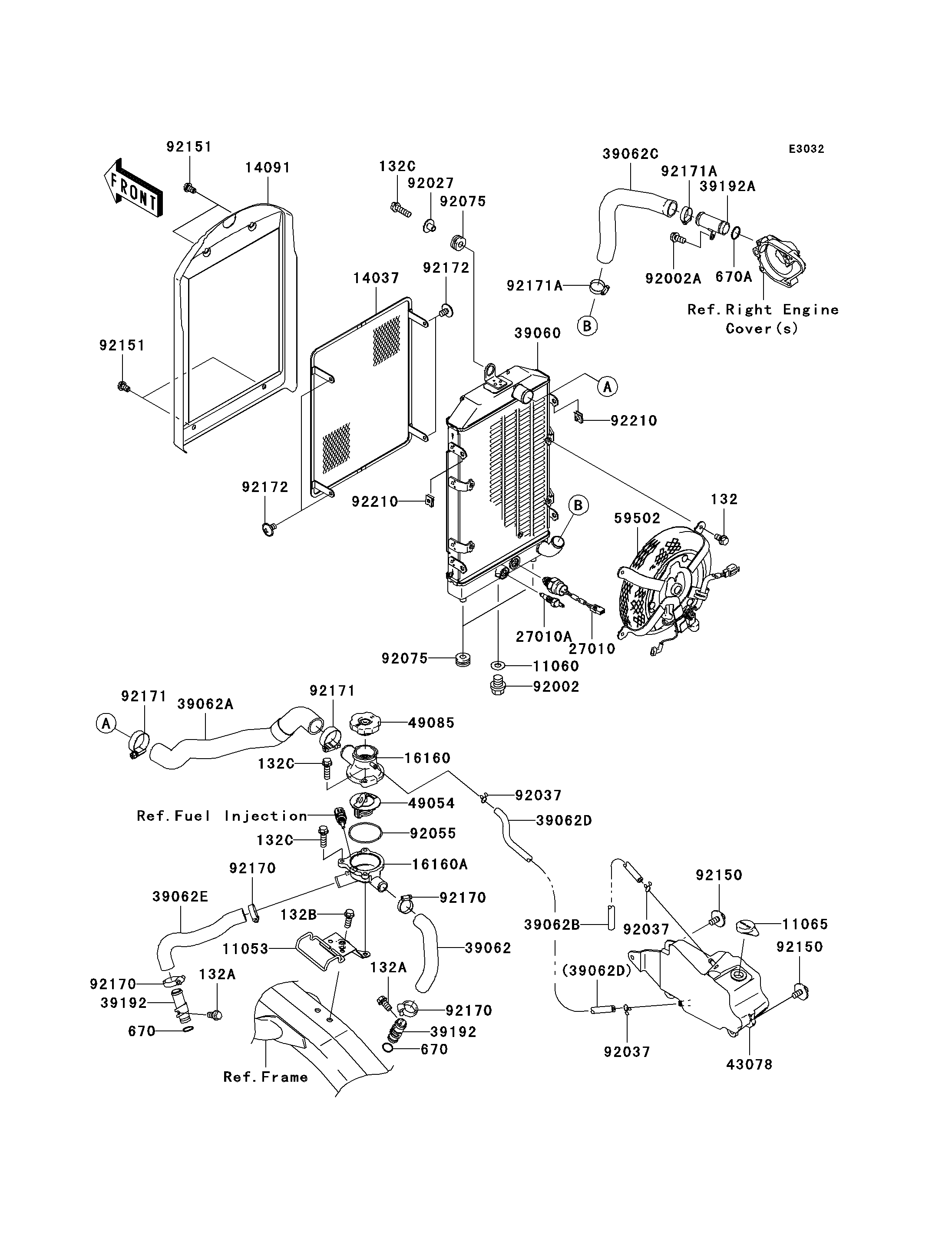

2006 Vulcan 1600 Classic - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132A
132A
132B
132B
132C
132C
132C
132C
132C
132C
670
670
670
670
11053
11053
11060
11060
11065
11065
14037
14037
14091
14091
16160
16160
16160A
16160A
27010
27010
27010A
27010A
39060
39060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39192
39192
39192
39192
39192A
39192A
43078
43078
49054
49054
49085
49085
59502
59502
92002
92002
92002A
92002A
92027
92027
92037
92037
92037
92037
92037
92037
92055
92055
92075
92075
92075
92075
92150
92150
92150
92150
92151
92151
92151
92151
92170
92170
92170
92170
92170
92170
92170
92170
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92172
92172
92172
92172
92210
92210
92210
92210
670A
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132J0610 4
BOLT-FLANGED-SMALL,6X12 132A 132J0612 2
BOLT-FLANGED-SMALL,6X16 132B 132J0616 2
BOLT-FLANGED-SMALL,6X20 132C 132J0620 4
O RING,14MM 670 670B2014 2
BRACKET,THERMOSTAT CASE 11053 11053-0009 1
GASKET,DRAIN PLUG 11060 11060-1767 1
CAP,COOLANT 11065 11065-1093 1
SCREEN,INNER 14037 14037-0014 1
COVER 14091 14091-0414 1
BODY,UPP 16160 16160-1152 1
BODY,LWR 16160A 16160-1361 1
SWITCH,FAN 27010 27010-0024 1
SWITCH,WARNING 27010A 27010-1305 1
RADIATOR 39060 39060-0019 1
HOSE-COOLING,RR HEAD-THERMO 39062 39062-0018 1
HOSE-COOLING,RADIATOR-THERMO 39062A 39062-0019 1
HOSE-COOLING 39062B 39062-1258 1
HOSE-COOLING,RADIATOR-PUMP 39062C 39062-1850 1
HOSE-COOLING,THERMO-RESERVOIR 39062D 39062-1934 1
HOSE-COOLING,FR HEAD-THERMO 39062E 39062-1935 1
PIPE-WATER 39192 39192-1094 2
PIPE-WATER 39192A 39192-1096 1
RESERVOIR 43078 43078-1180 1
THERMOSTAT 49054 49054-1067 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
FAN-ASSY 59502 59502-0013 1
BOLT,FLANGED,10X10 92002 92002-1311 1
BOLT,6X12 92002A 92002-1569 1
COLLAR,L=13.1,BLACK 92027 92027-1450 1
CLAMP,TUBE 92037 92037-147 3
RING-O,53.5X2.6 92055 92055-112 1
DAMPER 92075 92075-1690 3
BOLT,FLANGED,6X14,WASHER 92150 92150-1392 2
BOLT,6X10 92151 92151-1809 4
CLAMP,COOLING HOSE 92170 92170-1032 4
CLAMP 92171 92171-0179 2
CLAMP 92171A 92171-0261 2
SCREW,6X10 92172 92172-0005 4
NUT 92210 92210-1125 4
O RING,18MM 670A 670B2018 1
