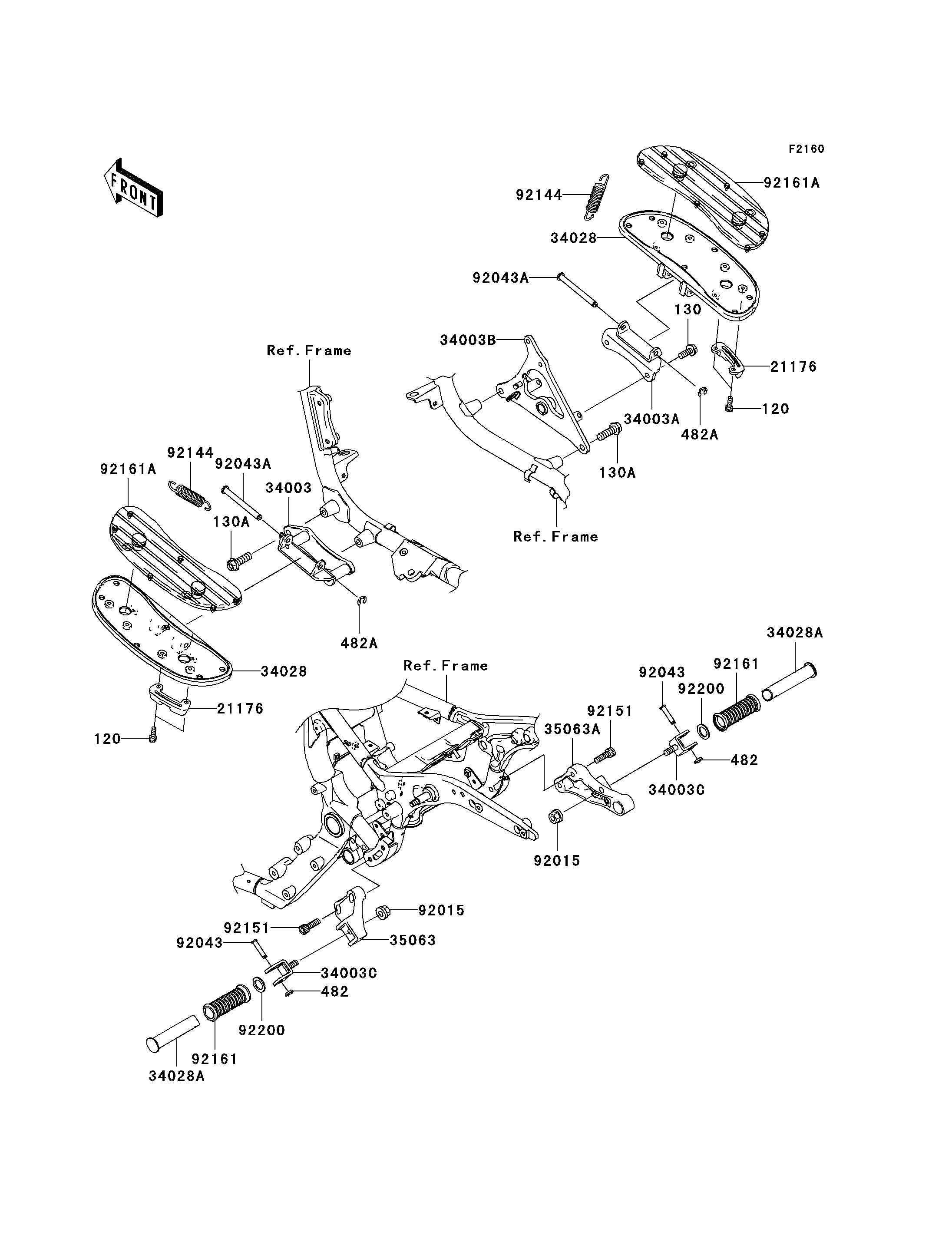

2006 Vulcan 1600 Classic - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130A
130A
482
482
482A
482A
21176
21176
34003
34003A
34003B
34003C
34003C
34028
34028
34028A
34028A
35063
35063A
92015
92015
92043
92043
92043A
92043A
92144
92144
92151
92151
92161
92161
92161A
92161A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120S0616 4
BOLT-FLANGED,8X20 130 130J0820 2
BOLT-FLANGED,10X30 130A 130J1030 4
CIRCLIP-TYPE-E 482 482L7000 2
CIRCLIP-TYPE-E,8MM 482A 482L8000 2
SENSOR,BANK 21176 21176-0021 2
HOLDER-STEP,FR,LH 34003 34003-0012 1
HOLDER-STEP,FR,RH 34003A 34003-0013 1
HOLDER-STEP,FR,RH 34003B 34003-0014 1
HOLDER-STEP,RR 34003C 34003-0015 2
STEP,FR 34028 34028-0011 2
STEP,RR 34028A 34028-0017 2
STAY,REAR STEP,LH 35063 35063-1268 1
STAY,REAR STEP,RH 35063A 35063-1269 1
NUT,FLANGED,10MM 92015 92015-1428 2
PIN,8X36.5 92043 92043-1339 2
PIN,10X98.5 92043A 92043-1707 2
SPRING 92144 92144-1266 2
BOLT,SOCKET,8X25 92151 92151-1525 4
DAMPER,STEP 92161 92161-0232 2
DAMPER,FRONT STEP 92161A 92161-1325 2
WASHER,22.5X33X2.3 92200 92200-1482 2
