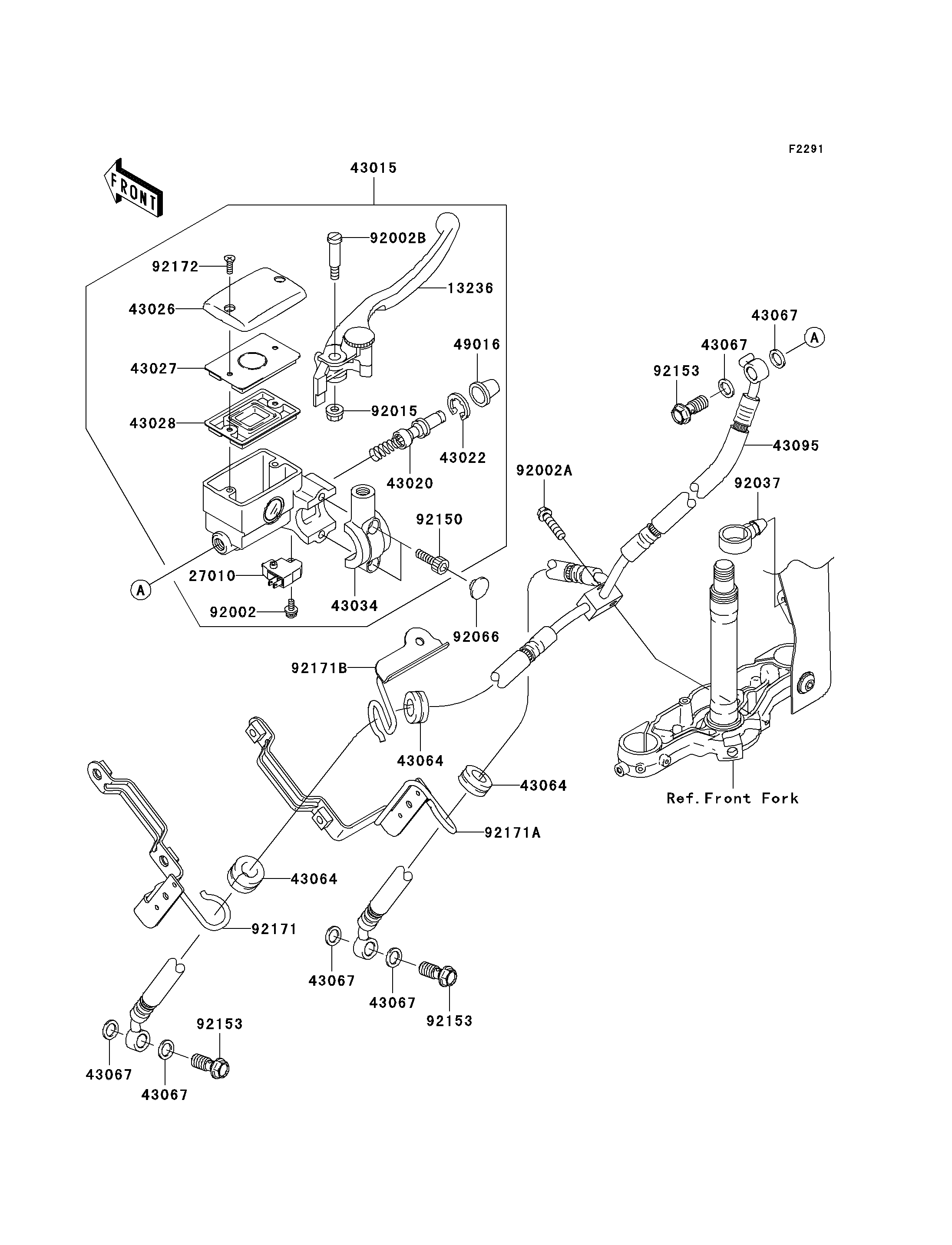

2006 Vulcan 1600 Classic - Front Master Cylinder
13236
27010
43015
43020
43022
43026
43027
43028
43034
43064
43064
43064
43067
43067
43067
43067
43067
43067
43095
49016
92002
92002A
92002B
92015
92037
92066
92150
92153
92153
92153
92171
92171A
92171B
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-COMP,FRONT BRAKE | 13236 | 13236-1315 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-0025 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-0025 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-0003 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1059 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
HOLDER-BRAKE | 43034 | 43034-1172 | 1 | ||
GROMMET,HOSE CLAMP | 43064 | 43064-006 | 3 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 6 | ||
HOSE-BRAKE,FR | 43095 | 43095-0188 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,SCREW,4X12 | 92002 | 92002-1323 | 1 | ||
BOLT,6X25 | 92002A | 92002-1344 | 1 | ||
BOLT,LEVER SET | 92002B | 92002-1561 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
PLUG | 92066 | 92066-1301 | 2 | ||
BOLT,SOCKET,6MM | 92150 | 92150-1025 | 2 | ||
BOLT,OIL,L=23 | 92153 | 92153-0627 | 3 | ||
CLAMP,BRAKE HOSE,LH | 92171 | 92171-0115 | 1 | ||
CLAMP,BRAKE HOSE,RH | 92171A | 92171-0468 | 1 | ||
CLAMP,BRAKE HOSE,UPP,LH | 92171B | 92171-0523 | 1 | ||
SCREW | 92172 | 92172-0083 | 2 |
