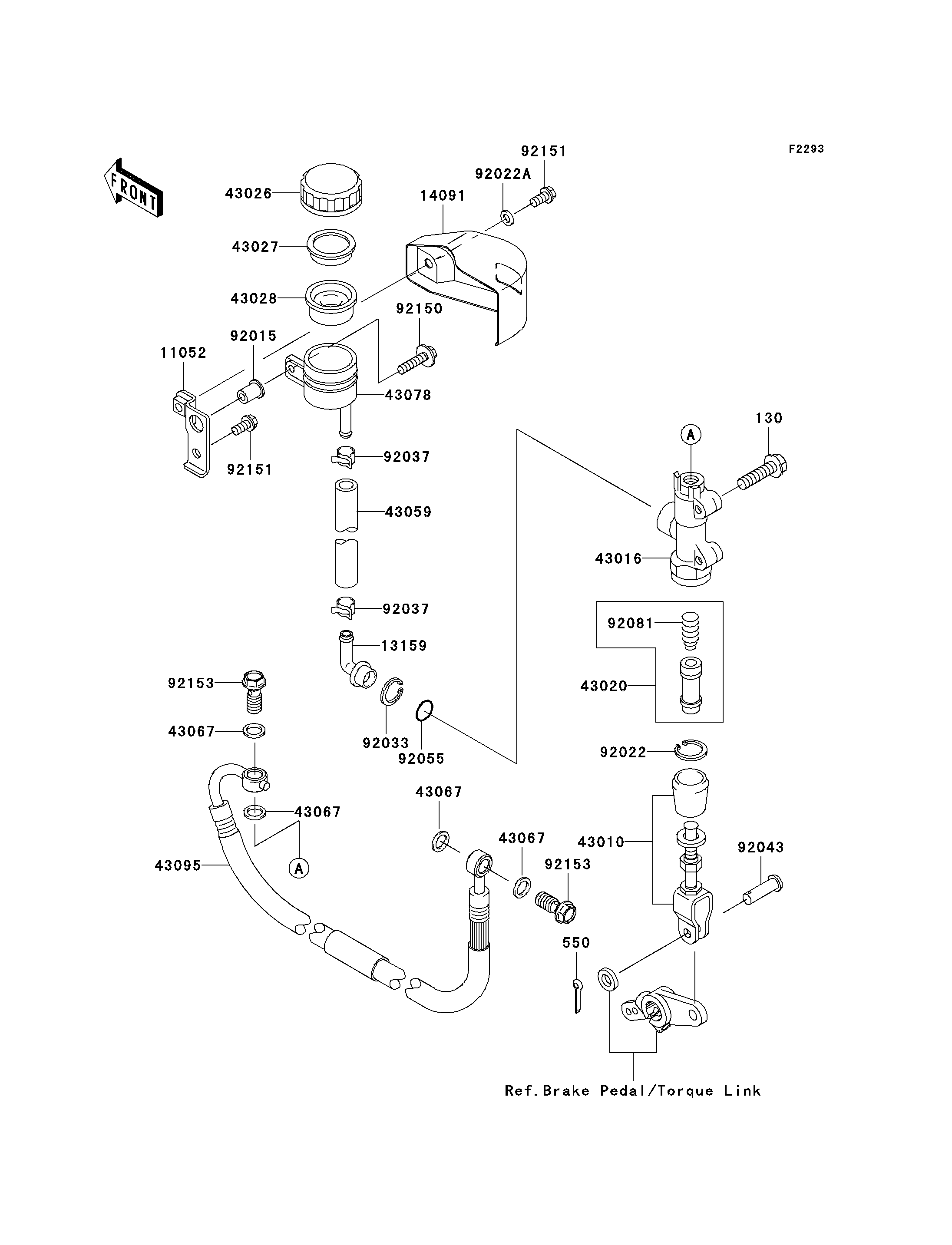

2006 Vulcan 1600 Classic - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
550
11052
13159
14091
43010
43016
43020
43026
43027
43028
43059
43067
43067
43067
43067
43078
43095
92015
92022
92022A
92033
92037
92037
92043
92055
92081
92150
92151
92151
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130J0830 2
PIN-COTTER,2.0X15 550 550D2015 1
BRACKET,RESERVOIR TANK 11052 11052-1305 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK 14091 14091-0412 1
ROD-ASSY-BRAKE 43010 43010-1055 1
CYLINDER-MASTER,RR 43016 43016-1122 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1318 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1178 1
HOSE-BRAKE,RR 43095 43095-0150 1
NUT 92015 92015-1700 1
WASHER,CIRCRIP 92022 92022-1601 1
WASHER,6.2X11X1.5 92022A 92022-183 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
PIN,8X16 92043 92043-1013 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,6X25 92150 92150-1829 1
BOLT,FLANGED,6X12 92151 92151-1401 2
BOLT,OIL,L=23 92153 92153-0627 2
