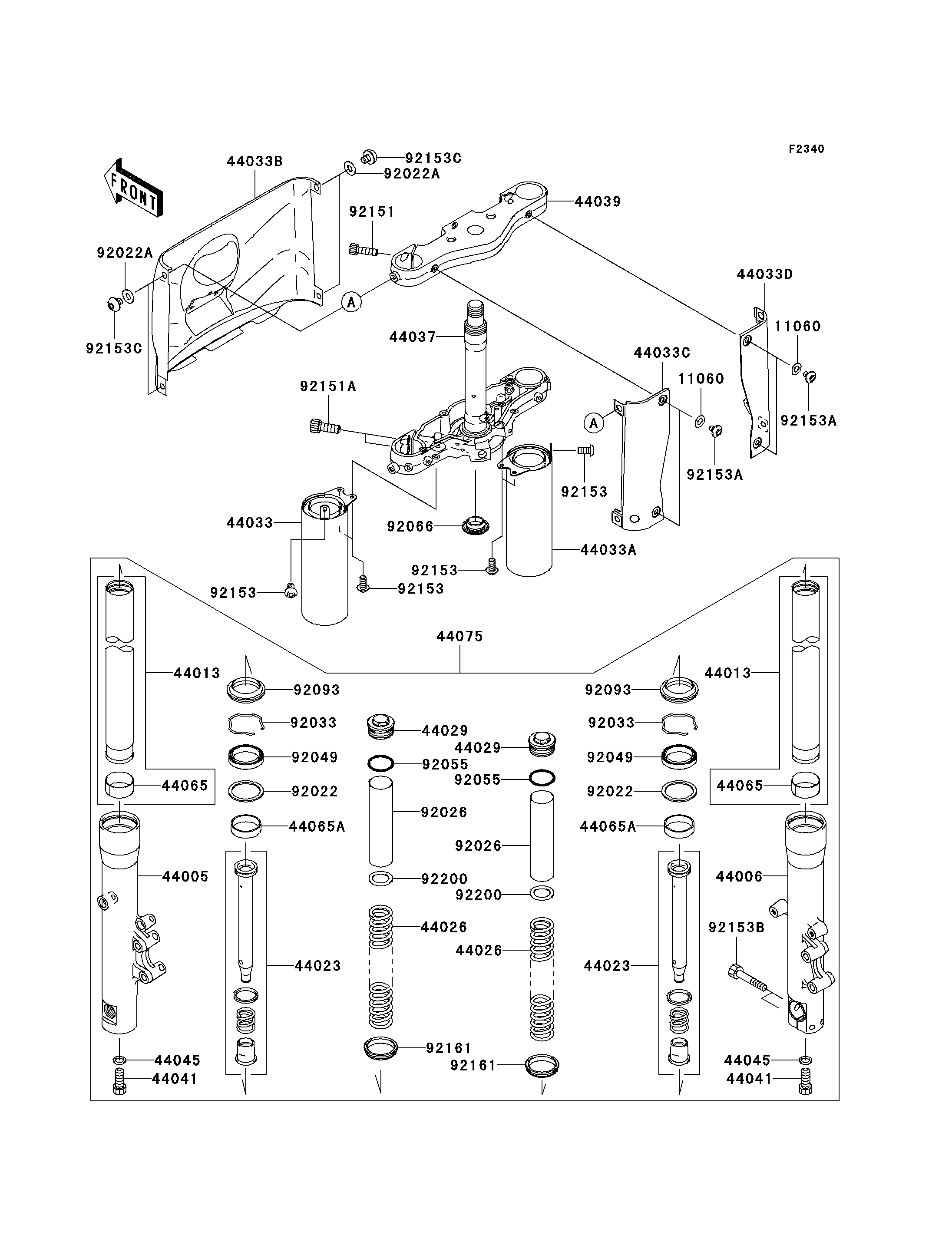

2006 Vulcan 1600 Classic - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44033
44033A
44033B
44033C
44033D
44037
44039
44041
44041
44045
44045
44065
44065
44065A
44065A
44075
92022
92022
92022A
92022A
92026
92026
92033
92033
92049
92049
92055
92055
92066
92093
92093
92151
92151A
92153
92153
92153
92153
92153A
92153A
92153B
92153C
92153C
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,6.2X12X0.3 11060 11060-1994 4
PIPE-LEFT FORK OUTER 44005 44005-1436 1
PIPE-RIGHT FORK OUTER 44006 44006-0006 1
PIPE-FORK INNER 44013 44013-0002 2
CYLINDER-SET-FORK 44023 44023-0004 2
SPRING-FRONT FORK 44026 44026-0014 2
SEAT-FORK SPRING 44029 44029-1154 2
COVER-FORK,INNER,LH 44033 44033-0011 1
COVER-FORK,INNER,RH 44033A 44033-0012 1
COVER-FORK,CNT 44033B 44033-0013 1
COVER-FORK,RR,LH 44033C 44033-0029 1
COVER-FORK,RR,RH 44033D 44033-0031 1
HOLDER-FORK UNDER 44037 44037-0030 1
HOLDER-FORK UPPER 44039 44039-0032 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
GASKET 44045 44045-057 2
BUSHING-FRONT FORK 44065 44065-0003 2
BUSHING-FRONT FORK 44065A 44065-1143 2
DAMPER-SET-FORK 44075 44075-1188 1
WASHER 92022 92022-1299 2
WASHER,8.2X18X1.5 92022A 92022-3743 4
SPACER 92026 92026-0002 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL 92049 92049-0007 2
RING-O 92055 92055-1123 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-1480 2
BOLT,SOCKET,8X25 92151 92151-1270 2
BOLT,SOCKET,10X25 92151A 92151-1358 4
BOLT 92153 92153-0300 6
BOLT,SOCKET,6X10 92153A 92153-0411 4
BOLT 92153B 92153-0425 2
BOLT,SOCKET,8X10 92153C 92153-1278 4
DAMPER 92161 92161-1343 2
WASHER 92200 92200-1253 2
