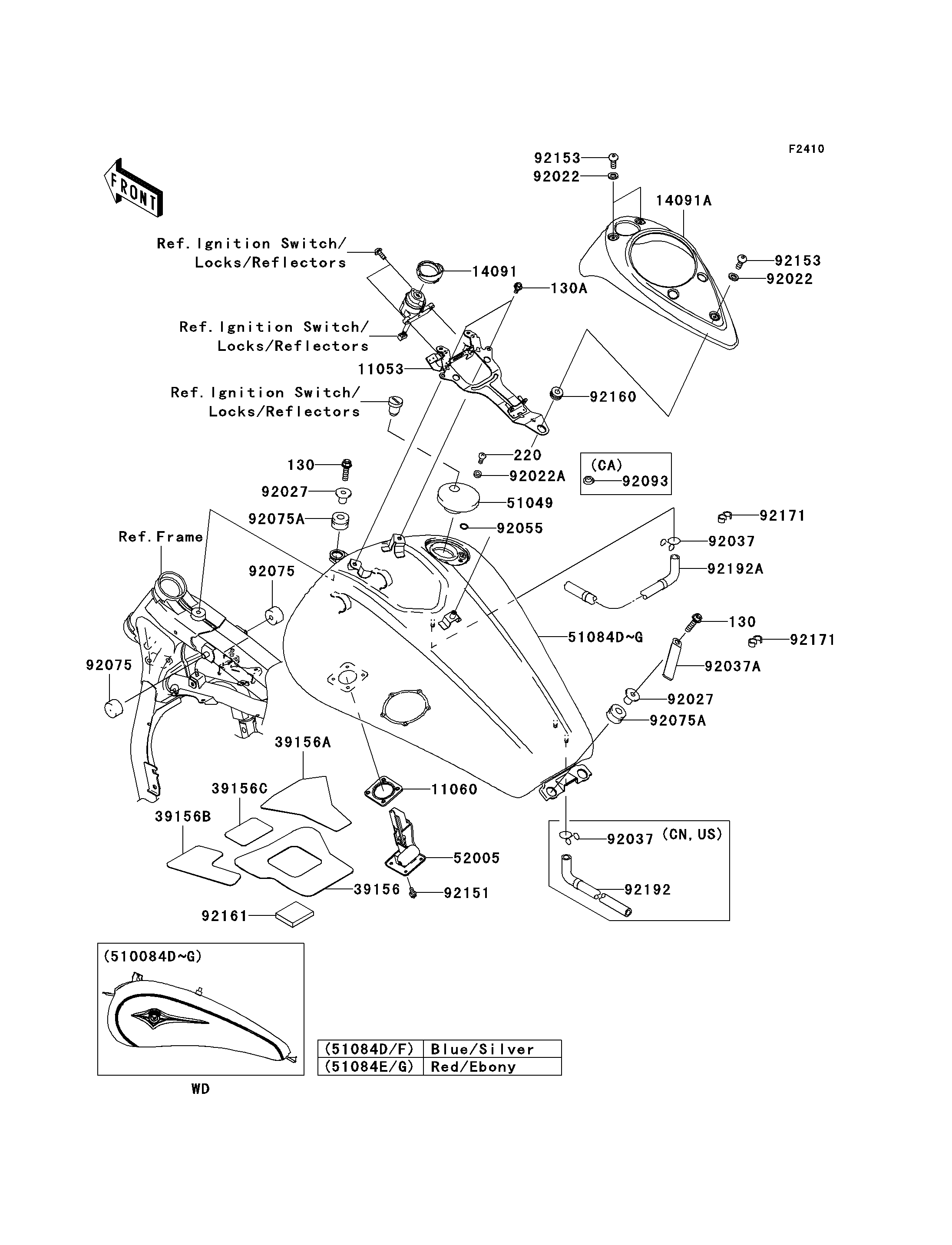

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,METER COVER | 11053 | 11053-0275 | 1 | ||
GASKET,FUEL GAUGE | 11060 | 11060-1952 | 1 | ||
COVER,IGNITION SWITCH | 14091 | 14091-0088 | 1 | ||
COVER,METER | 14091A | 14091-0091 | 1 | ||
PAD,FUEL TANK,CNT,RR | 39156 | 39156-0019 | 1 | ||
PAD,FUEL TANK,RH | 39156A | 39156-0020 | 1 | ||
PAD,FUEL TANK,LH | 39156B | 39156-0021 | 1 | ||
PAD,FUEL TANK,CNT,FR | 39156C | 39156-0022 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-0003 | 1 | ||
BOLT-FLANGED,8X30 | 130 | 130H0830 | 3 | ||
BOLT-FLANGED,6X14 | 130A | 130J0614 | 2 | ||
SCREW-PAN-CROS,5X10 | 220 | 220D0510 | 2 | ||
GAUGE,FUEL | 52005 | 52005-0004 | 1 | ||
WASHER,6.2X11X1.5 | 92022 | 92022-183 | 3 | ||
WASHER,5.1X10X1.0 | 92022A | 92022-1977 | 2 | ||
COLLAR,L=19.3 | 92027 | 92027-1780 | 3 | ||
CLAMP,TUBE | 92037 | 92037-147 | 2 | ||
CLAMP,HARNESS,L=100 | 92037A | 92037-1636 | 1 | ||
RING-O,ID=9 | 92055 | 92055-1552 | 2 | ||
DAMPER,FUEL TANK | 92075 | 92075-125 | 2 | ||
DAMPER | 92075A | 92075-1736 | 3 | ||
BOLT,5X12 | 92151 | 92151-1599 | 4 | ||
BOLT,SOCKET,6X10 | 92153 | 92153-1096 | 3 | ||
DAMPER | 92160 | 92160-1162 | 1 | ||
DAMPER | 92161 | 92161-1338 | 1 | ||
CLAMP | 92171 | 92171-1184 | 2 | ||
TUBE,DRAIN | 92192A | 92192-0038 | 1 | ||
TANK-COMP-FUEL,BLUE/SILVER | 51084D | 51084-5078-728 | 1 | CNUS | |
TANK-COMP-FUEL,RED/EBONY | 51084E | 51084-5079-827 | 1 | US | |
TANK-COMP-FUEL,BLUE/SILVER | 51084F | 51084-5129-728 | 1 | CA | |
TANK-COMP-FUEL,RED/EBONY | 51084G | 51084-5130-827 | 1 | CA | |
CLAMP,TUBE | 92037 | 92037-147 | 1 | CA | |
CLAMP,TUBE | 92037 | 92037-147 | 2 | CNUS | |
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
TUBE,BREATHER | 92192 | 92192-0024 | 1 | CNUS |
