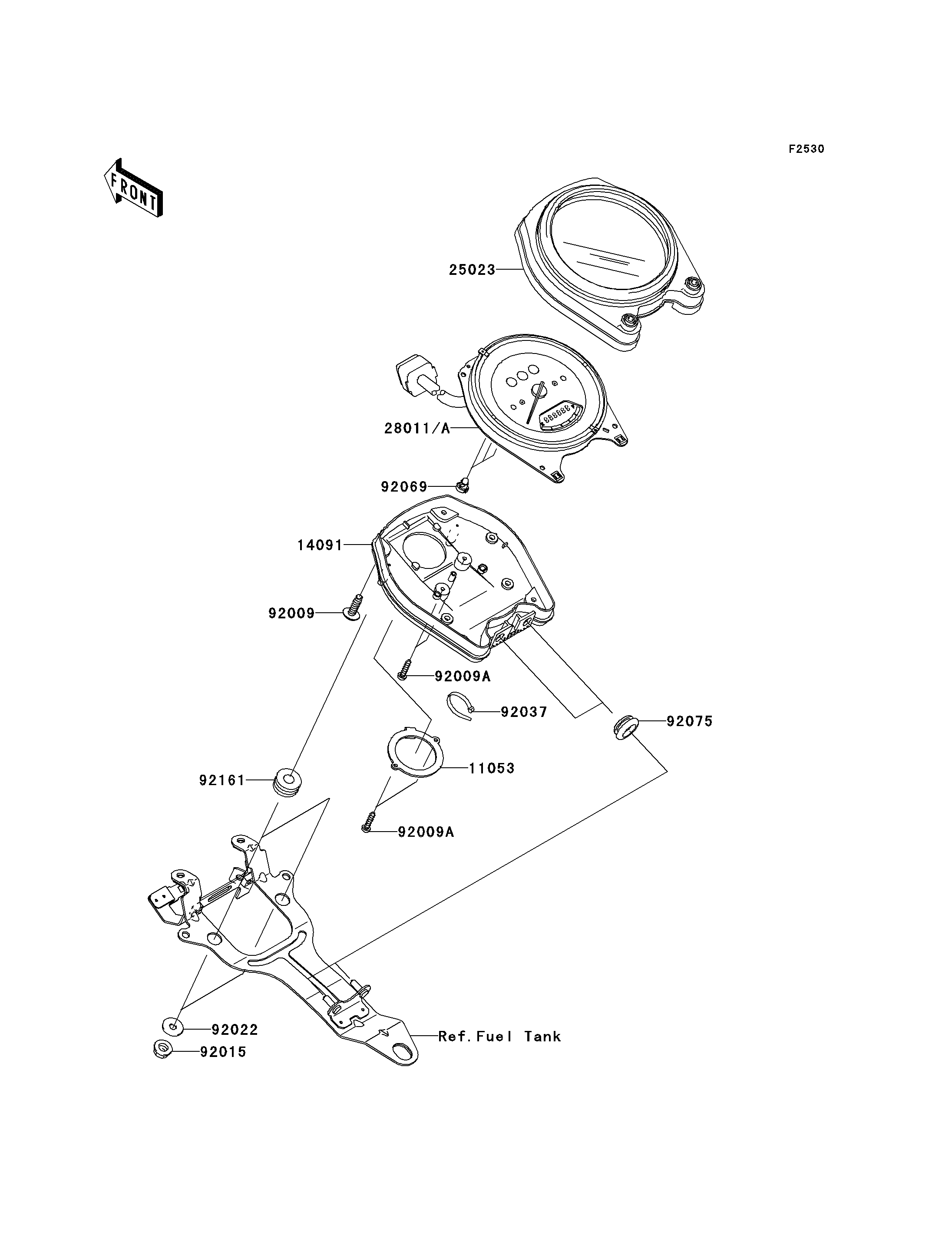

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11053 11053-0022 1
COVER,METER,LWR 14091 14091-0009 1
COVER-METER CASE,UPP 25023 25023-0002 1
SCREW,TAPPING,4X16 92009 92009-1163 4
SCREW,TAPPING,3X12 92009A 92009-1255 4
NUT,6MM 92015 92015-1386 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
CLAMP 92037 92037-1173 1
BULB,T3.4,12V1.1W 92069 92069-1110 3
DAMPER 92075 92075-1011 2
DAMPER 92161 92161-0054 2
METER,SPEED,MPH 28011 28011-0003 1 CAUS
METER,SPEED,KPH 28011A 28011-0004 1 CN
