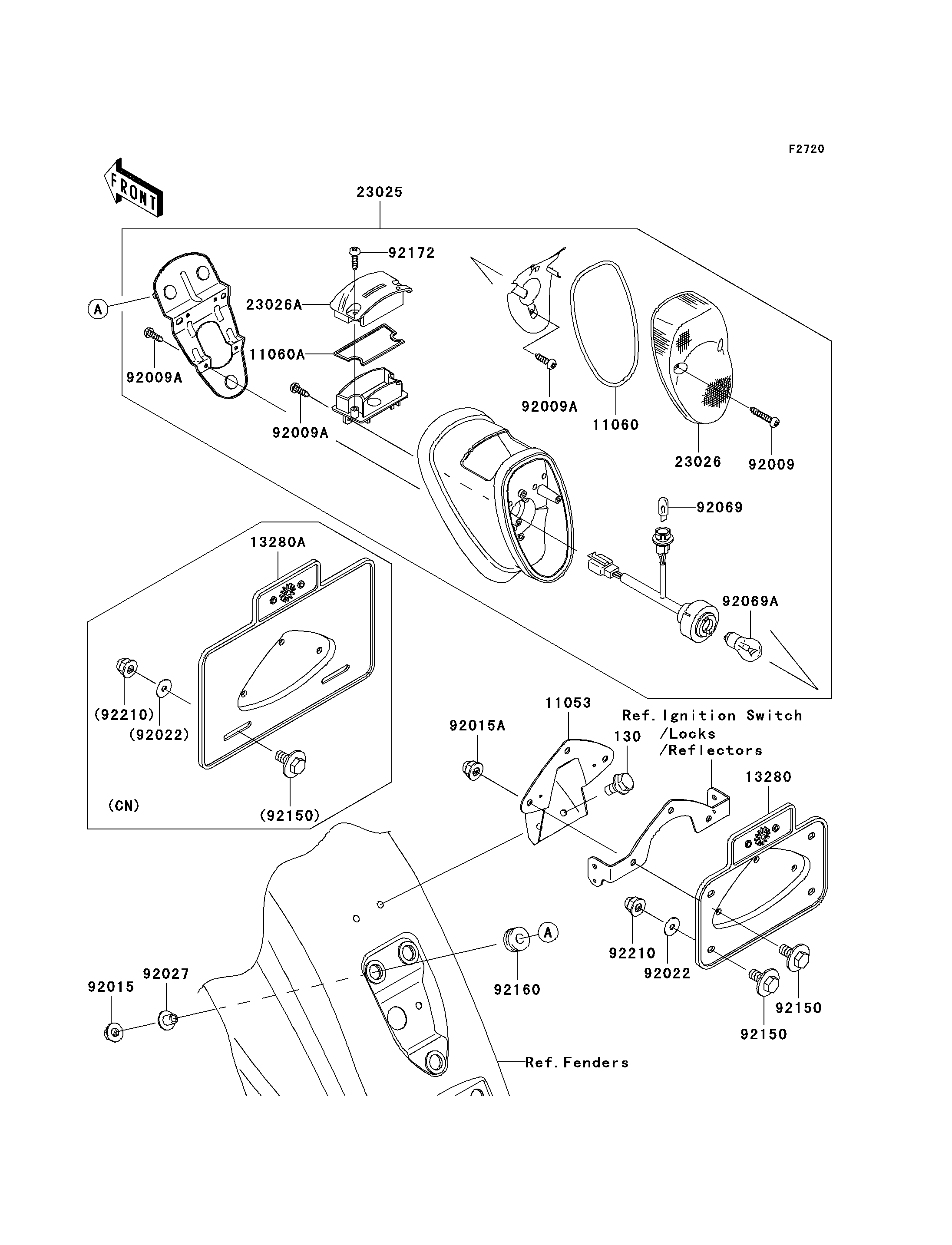

2006 Vulcan 1600 Classic - Taillight(s)
130
11053
11060
11060A
23025
23026
23026A
92009
92009A
92009A
92009A
92015
92015A
92027
92069
92069A
92160
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130J0612 | 2 | ||
BRACKET,LICENSE PLATE HOLDER | 11053 | 11053-1220 | 1 | ||
GASKET,TAIL LAMP | 11060 | 11060-1884 | 1 | ||
GASKET,LICENSE LENS | 11060A | 11060-1939 | 1 | ||
LAMP-TAIL | 23025 | 23025-1333 | 1 | ||
LENS,TAIL | 23026 | 23026-1220 | 1 | ||
LENS,LICENSE | 23026A | 23026-1224 | 1 | ||
SCREW,TAPPING,4X20 | 92009 | 92009-1378 | 2 | ||
SCREW,TAPPING,4X12 | 92009A | 92009-1381 | 8 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 3 | ||
NUT,CAP,6MM | 92015A | 92015-1385 | 3 | ||
COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 3 | ||
BULB,12V 5W | 92069 | 92069-1016 | 1 | ||
BULB,12V 21/5W | 92069A | 92069-1084 | 1 | ||
DAMPER | 92160 | 92160-1162 | 3 | ||
SCREW,TAPPING,4X12 | 92172 | 92172-0084 | 2 | ||
HOLDER,LICENSE PLATE | 13280 | 13280-1103 | 1 | CAUS | |
HOLDER,LICENSE PLATE | 13280A | 13280-1130 | 1 | CN | |
WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 2 | CN | |
WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 4 | CAUS | |
BOLT,6X14 | 92150 | 92150-1133 | 5 | CN | |
BOLT,6X14 | 92150 | 92150-1133 | 7 | CAUS | |
NUT,CAP,6MM | 92210 | 92210-0003 | 2 | CN | |
NUT,CAP,6MM | 92210 | 92210-0003 | 4 | CAUS |
