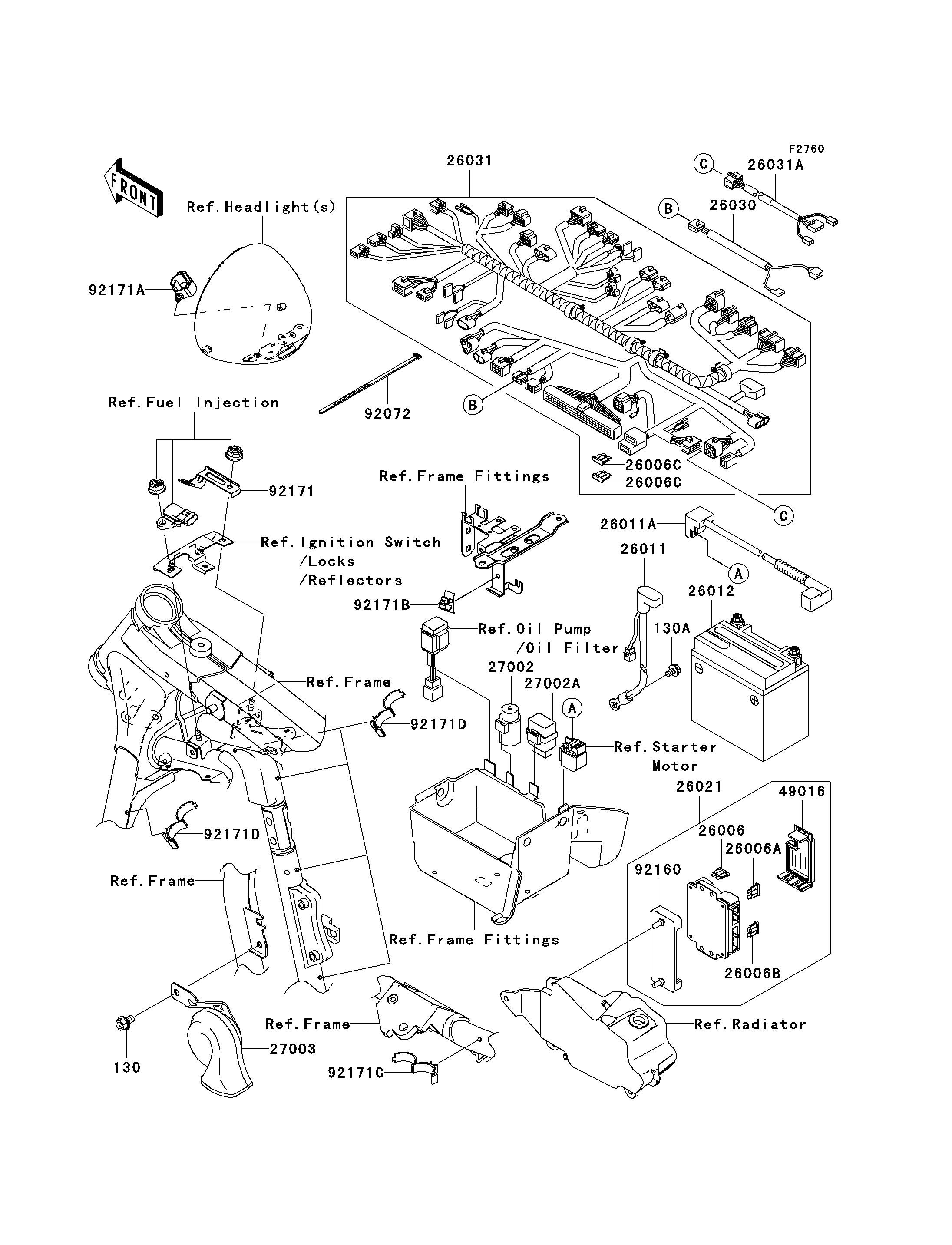

2006 Vulcan 1600 Classic - Chassis Electrical Equipment
130
130A
26006
26006A
26006B
26006C
26006C
26011
26011A
26012
26021
26030
26031
26031A
27002
27002A
27003
49016
92072
92160
92171
92171A
92171B
92171C
92171D
92171D
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X12 | 130 | 130J0812 | 1 | ||
BOLT-FLANGED,6X10 | 130A | 130V0610 | 1 | ||
FUSE,30A-G | 26006 | 26006-1006 | 1 | ||
FUSE,10A-R | 26006A | 26006-1007 | 7 | ||
FUSE,15A-B | 26006B | 26006-1061 | 1 | ||
FUSE,15A | 26006C | 26006-1075 | 2 | ||
WIRE-LEAD,BATTERY(-) | 26011 | 26011-0007 | 1 | ||
WIRE-LEAD,BATTERY(+) | 26011A | 26011-0018 | 1 | ||
BATTERY,MF,FTZ16-BS,12V 18AH | 26012 | 26012-1371 | 1 | ||
JUNCTION BOX | 26021 | 26021-0002 | 1 | ||
HARNESS,SUB | 26030 | 26030-1450 | 1 | ||
HARNESS,MAIN | 26031 | 26031-0080 | 1 | ||
HARNESS,TAIL | 26031A | 26031-1077 | 1 | ||
RELAY-ASSY | 27002 | 27002-1051 | 1 | ||
RELAY-ASSY,SIGNAL LAMP | 27002A | 27002-1113 | 1 | ||
HORN | 27003 | 27003-0027 | 1 | ||
COVER-SEAL,FUSE | 49016 | 49016-0005 | 1 | ||
BAND,L=365 | 92072 | 92072-1197 | 1 | ||
DAMPER,JUNCTION BOX | 92160 | 92160-1650 | 1 | ||
CLAMP,HARNESS COUPLER | 92171 | 92171-0065 | 1 | ||
CLAMP,DIA=20 | 92171A | 92171-0069 | 1 | ||
CLAMP,HARNESS | 92171B | 92171-1269 | 1 | ||
CLAMP,DIA=10 | 92171C | 92171-1423 | 1 | ||
CLAMP,DIA=15 | 92171D | 92171-1424 | 5 |
