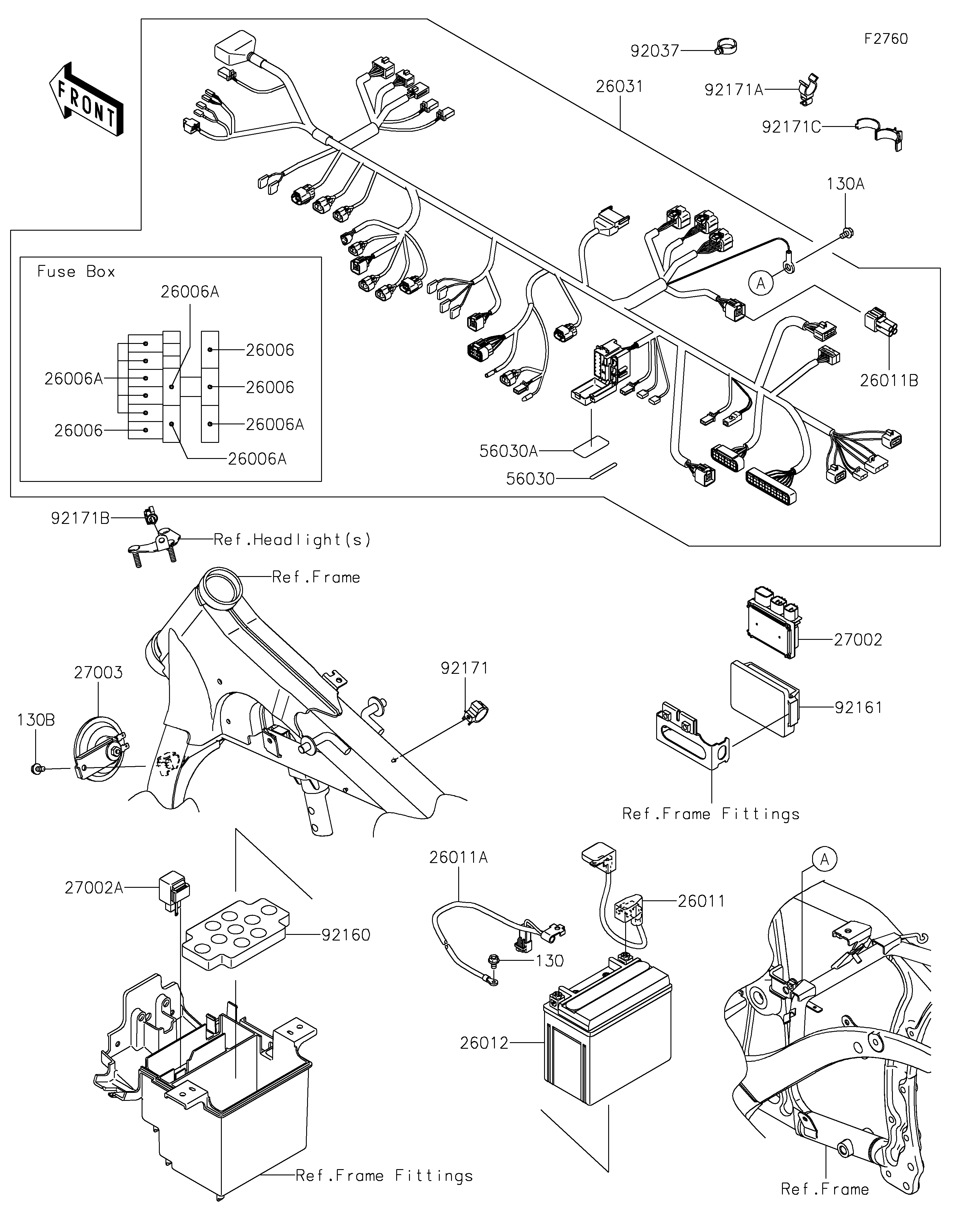

2021 VULCAN® 900 CUSTOM - Chassis Electrical Equipment
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
92037
92160
92161
92171
92171A
92171B
92171C
130
130A
130B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 3 | ||
FUSE,MINI BLADE,10A,RED | 26006A | 26006-1078 | 8 | ||
WIRE-LEAD,BATTERY(+) | 26011 | 26011-0089 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011A | 26011-0090 | 1 | ||
WIRE-LEAD,CAP | 26011B | 26011-0271 | 1 | ||
BATTERY,YTX12-BS,12V 10AH | 26012 | 26012-0094 | 1 | ||
HARNESS,MAIN | 26031 | 26031-2243 | 1 | ||
RELAY-ASSY | 27002 | 27002-0050 | 1 | ||
RELAY-ASSY,TURN SIGNAL | 27002A | 27002-1101 | 1 | ||
HORN | 27003 | 27003-0048 | 1 | ||
LABEL,FUSE BOX | 56030 | 56030-0016 | 1 | ||
LABEL,FUSE BOX | 56030A | 56030-0046 | 1 | ||
CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
DAMPER,BATTERY | 92160 | 92160-1635 | 1 | ||
DAMPER,RELAY BOX | 92161 | 92161-0203 | 1 | ||
CLAMP,20MM DIA. | 92171 | 92171-0081 | 1 | ||
CLAMP,CABLE | 92171A | 92171-0347 | 1 | ||
CLAMP,13MM DIA. | 92171B | 92171-1415 | 1 | ||
CLAMP,10MM DIA. | 92171C | 92171-1423 | 1 | ||
BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
BOLT-FLANGED,6X10 | 130A | 130BB0610 | 1 | ||
BOLT-FLANGED,6X12 | 130B | 130BB0612 | 1 |
FUSE,MINI BLADE,15A,BLUE | |
REF # | 26006 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
FUSE,MINI BLADE,10A,RED | |
REF # | 26006A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(+) | |
REF # | 26011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(-) | |
REF # | 26011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,CAP | |
REF # | 26011B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BATTERY,YTX12-BS,12V 10AH | |
REF # | 26012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HARNESS,MAIN | |
REF # | 26031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELAY-ASSY | |
REF # | 27002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELAY-ASSY,TURN SIGNAL | |
REF # | 27002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HORN | |
REF # | 27003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,FUSE BOX | |
REF # | 56030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,FUSE BOX | |
REF # | 56030A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,BATTERY | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RELAY BOX | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,20MM DIA. | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,CABLE | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,13MM DIA. | |
REF # | 92171B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,10MM DIA. | |
REF # | 92171C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X12 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
